switch off

This block is part of the globals group and was last modified in core v15.0.0.

switch off v15.0.0

Turns a plug, relay or switch off.

In pins 1 + flow
  • flow v15.0.0
    flow
  • device v15.0.0
    value

    Device id, native address, or exact device name. Leave empty to use the device picked on the block.

Out pins 3 + flow
  • flow v15.0.0
    flow
  • ok v15.0.0
    condition

    True when the command reached the device.

  • device v15.0.0
    object

    The device the command was sent to.

  • error v15.0.0
    value

    Empty on success. HOMEASSIST_DEVICE_NOT_FOUND, HOMEASSIST_DEVICE_NOT_ADOPTED, HOMEASSIST_CAPABILITY_UNSUPPORTED or HOMEASSIST_NOT_AVAILABLE.

Sets the power capability false on a device classified as a switch.

zigbee
zwave
matter
thread
hue
smart home

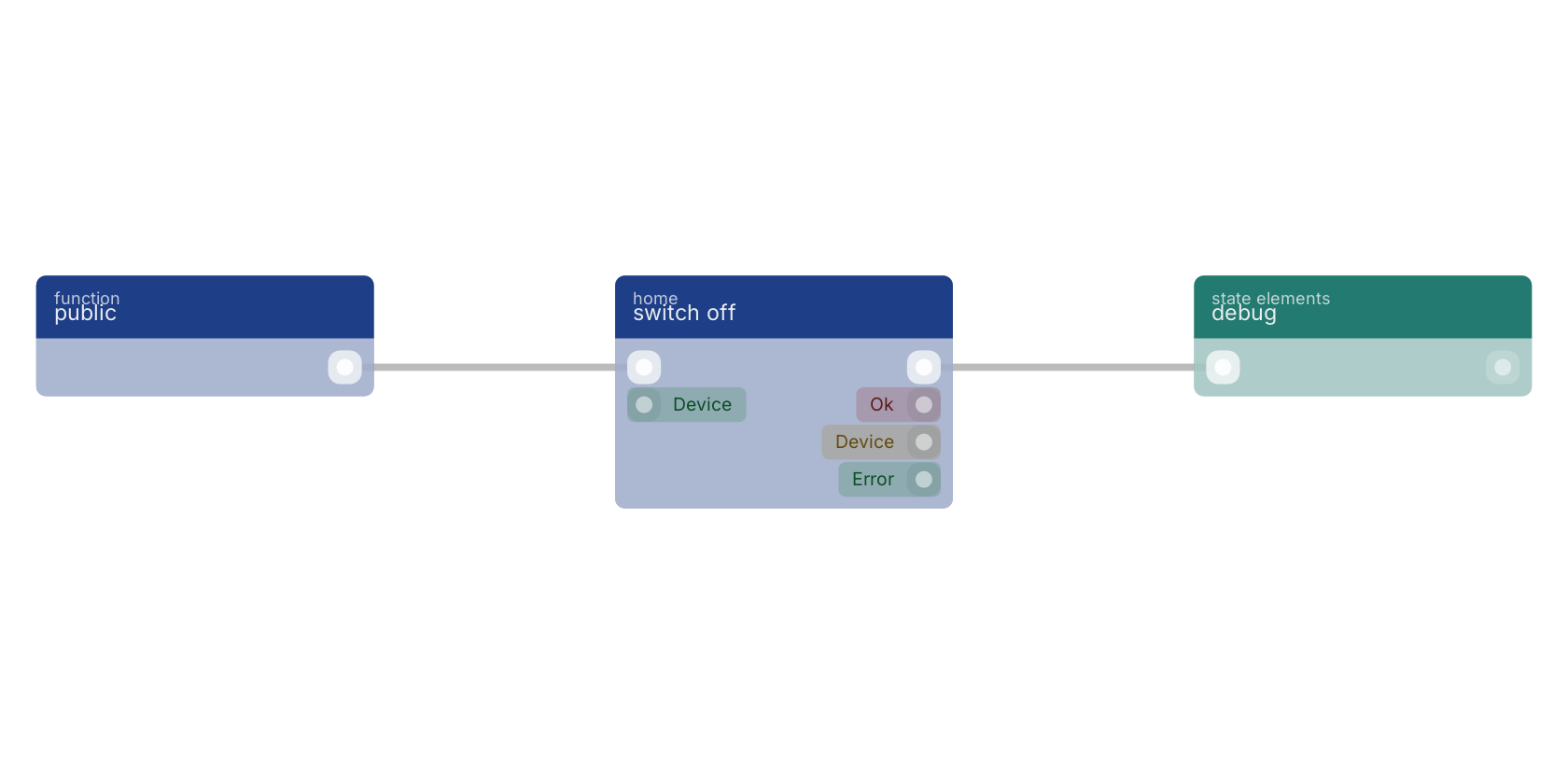

A typical wiring for switch off: a function trigger starts the flow; the flow out pin feeds debug.

Studio canvas example for the switch off block: typical wiring for switch off.

Used in these guides

These documentation pages use or explain this block:

Version history

Introduced in v15.0.0.
