Building an API with Locking
By the end your read-modify-write endpoint is safe against concurrent callers: a lock around the critical section makes them queue up instead of overwriting each other, and it is always released, on success and on failure.
1. Three blocks, one job each
| Block | Does what |
|---|---|
function_claim_lock_wait (lock or wait) |
Claims the lock for a key, waiting until the current holder releases it. The right default for an API: every caller gets its turn. |
function_claim_lock_v2 (claim lock) |
Tries once and reports through its condition out-pin whether it got the lock. Use it when a failed attempt should answer "try again later" instead of waiting, for example a sync endpoint where a retry is cheaper than a queue. |
function_claim_unlock (free lock) |
Releases the key. Must run on every path, including the failures. |
- The
keynames what is being protected. Build it from the identifier of the thing being updated withvalue_concatenate(concatenate values), for examplemember-plus the member guid: one lock per document, so updates to different members never wait on each other. - The
expiry(seconds) is the safety net that frees a key whose holder crashed before unlocking. - The
auto_clearpin releases the lock when the run ends, including when it fails, so you can leave out the free lock block.
2. The critical section sits between claim and release
Between them goes the work that must not interleave: read the document, compute, write it back.

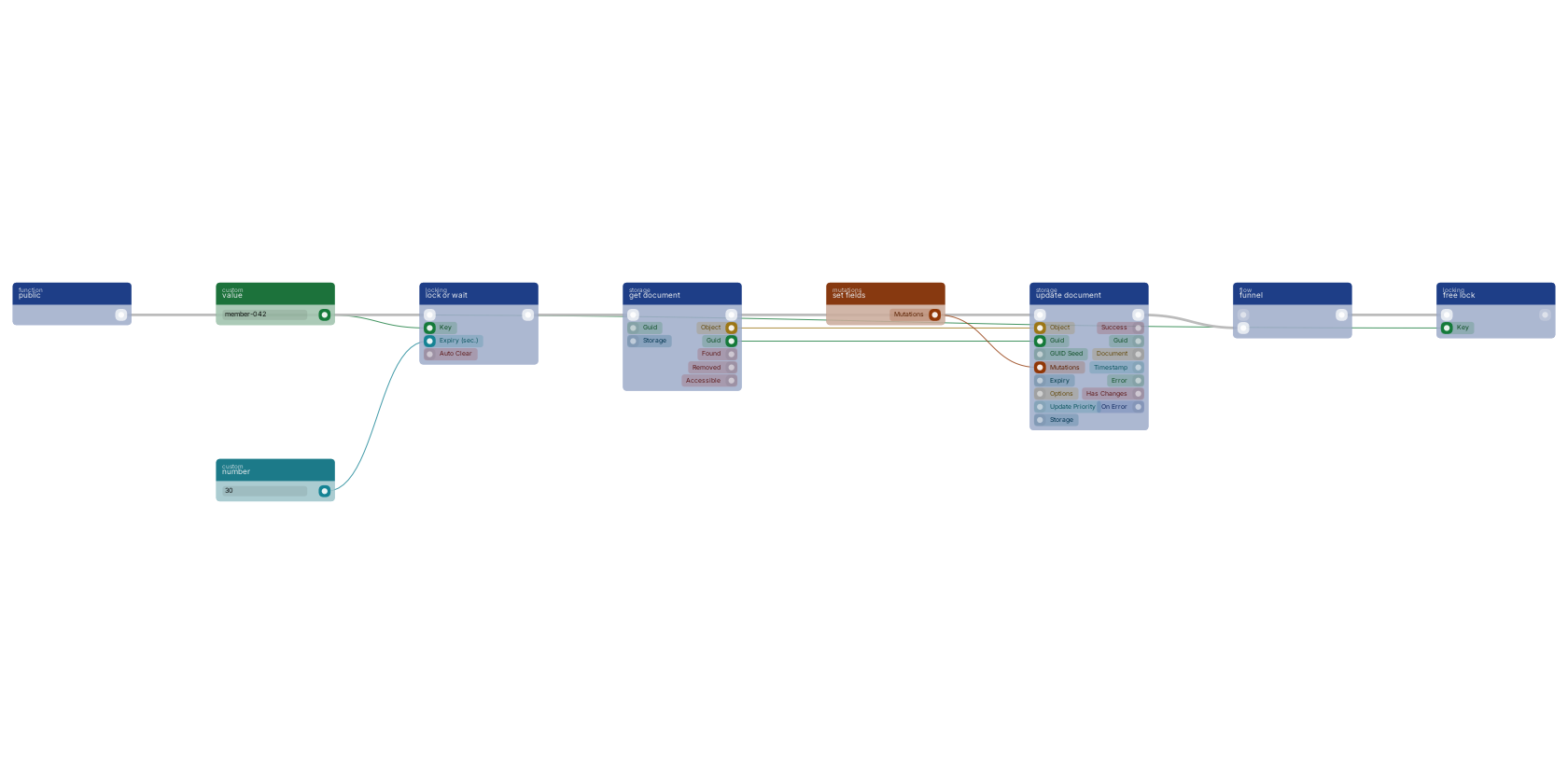

The critical-section shape: a function trigger runs the flow, lock or wait claims the key (waiting when another request holds it), the document is read with get document and written with update document, and a funnel merges the paths so free lock always releases the key.
Claim
function_claim_lock_waitwith the key from step 1. There is no success or error output: the flow simply waits until it has the lock.Read
function_get_document(get document) reads the current state. Read after the claim, never before it.Compute and write
mutations_set_bp_field_multiple(set fields) builds the changes andfunction_update_document_mutations(update document) writes them.Release on every path
The
funnel(funnel) is the load-bearing detail: it merges the exit paths (success, validation failure, not found) into one flow that always reachesfunction_claim_unlock. Point the end of every path you add later at the funnel, never straight out of the function.
How you know it worked: fire two requests at once that each add to the same counter. With the lock both changes land; without it one disappears.
Notes from practice
- Keep the critical section small. Everything slow (external calls, file work, email) belongs outside the lock; every second inside it is a second other callers wait.
- Size the
expiryto the worst realistic run, not the average. Too short and a slow run loses its lock mid-write; too long and a crashed holder blocks everyone until timeout. - A lock is not a transaction. When the write itself must be atomic, use the document's own update blocks, which lock themselves per document (see Locking and Concurrency). Claim your own lock for invariants that span the read-modify-write as a whole, like "only one active subscription per member".
- Waiting callers still count against the request timeout. When waits can be long, hand the work to
function_custom_execute_from_queue(execute in queue) with aunique_idper key instead; the API replies immediately. See Queue.
Next steps
Locking and Concurrency Which blocks lock themselves, and when to claim a lock manually. Queue Serialize work per key without holding an HTTP request open. Common Blueprint Patterns The endpoint and error-handling shapes around the lock.Frequently asked
How do I lock a critical section in a RUAL API?
Claim a key with function_claim_lock_wait before the read-modify-write section and release it with function_claim_unlock afterwards, merging every exit path through a funnel so the unlock always runs. Build the key from the updated document's identifier so different documents never wait on each other.
What happens when a RUAL blueprint crashes while holding a lock?
The lock's expiry frees the key after the given number of seconds, so a crashed holder cannot block other callers forever. Size the expiry to the worst realistic run of the critical section.
