funnel
This block is part of the funnels group and was last modified in core v10.4.28.
funnel v10.4.28 In pins 0 + flow
- flow
flow - flow_0
flow
Out pins 0 + flow
- flow
flow

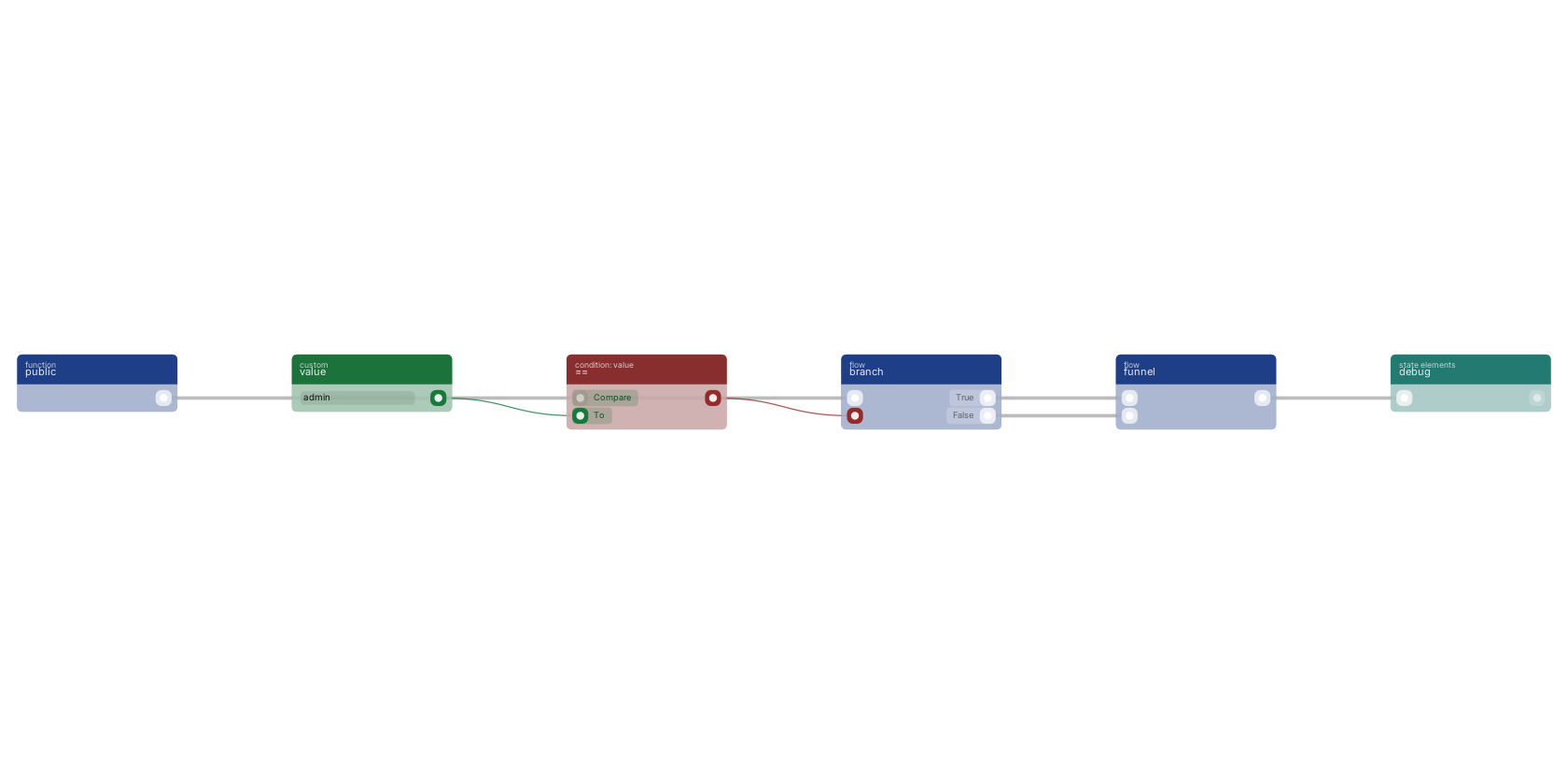

funnel merges flows: whichever of its flow pins fires, the out flow continues once. Here both outs of a branch merge back into one flow after the decision, a pattern you see in almost every blueprint with branching.
Commonly used with
In production blueprints, this block is most often wired together with:
- branch: feeds into this block.
- reply in JSON: this block feeds into it. Reply to any httpconnection as JSON body.
- update document: wired in both directions with this block. Update document in the given storage and creates a revision for it.
- remove document: feeds into this block. Removes the given document from the given storage.
- delete: feeds into this block. Deletes the given files.
- create document: feeds into this block. Creates a document in the given storage.
Version history
Introduced in v10.4.28.
