branch
This block is part of the flow group and was last modified in core v10.4.28.
branch v10.4.28 In pins 1 + flow
- flow
flow - condition required
condition
Out pins 0 + flow
- true
flow - false
flow
Routes to the true out pin only when the condition input is exactly boolean true; any non-boolean value (even truthy ones like 1 or "yes"), nil, or an unwired pin follows the false pin. No coercion. Example: condition=1 -> the false pin runs (1 is not boolean true).
branch |
if |

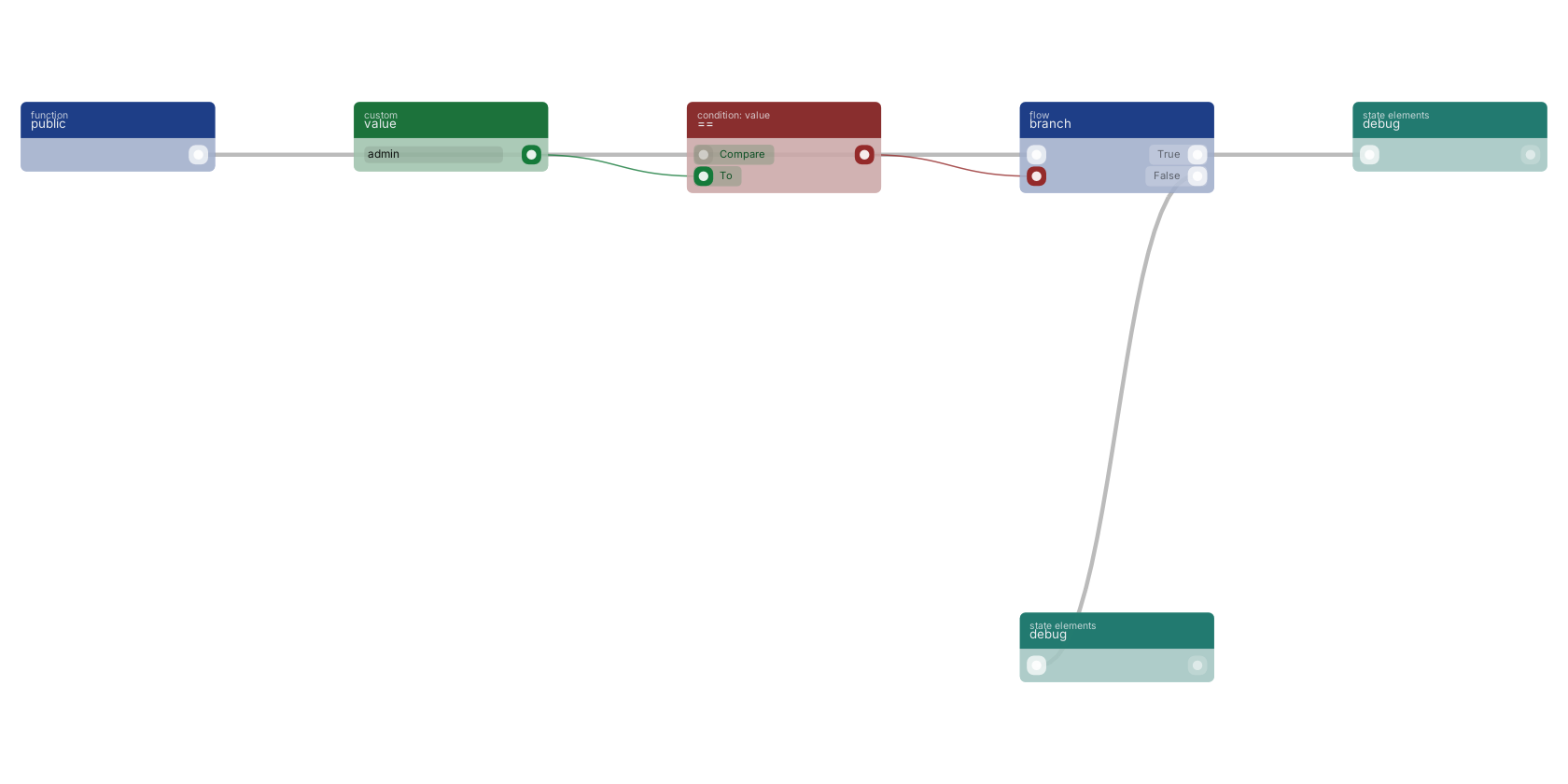

A function trigger runs the flow, a == comparison feeds the condition pin, and branch sends the flow down the true or false out pin, here into two debug blocks. The fixed value would be live data in a real blueprint.
Commonly used with
One of the most-used blocks across production blueprints. It is most often wired together with:
- reply in JSON: this block feeds into it. Reply to any httpconnection as JSON body.
- get document: wired in both directions with this block. get a specific document based on the given GUID.
- execute: feeds into this block. Executes the given funcion and waits for it to be executed.
- branch: wired in both directions with this block.
- update document: this block feeds into it. Update document in the given storage and creates a revision for it.
- AND: feeds into this block. operator for a set of boolean operands will be true if and only if all the operands are true.
Used in these guides
These documentation pages use or explain this block:
- Block Execution
- Blueprint Language Overview
- Blueprint Language Syntax
- Editing Blueprints with an AI Agent
Version history
Introduced in v10.4.28.
