apple sso refresh token

This block is part of the users group and was last modified in core v14.0.4.

apple sso refresh token v14.0.4

Refresh an Apple OAuth access token using a refresh token.

In pins 5 + flow
  • flow
    flow
  • Client ID required
    value

    Apple Services ID

  • Team ID required
    value

    Your Apple Developer Team ID

  • Key ID required
    value

    The Key ID from your Apple private key

  • Private Key required
    value

    The PEM private key from Apple Developer portal

  • Refresh Token required
    value

    The refresh token obtained from the verify code step

Out pins 5 + flow
  • flow
    flow
  • Access Token
    value

    The new access token

  • Refresh Token
    value

    A new refresh token (if rotated by the provider, otherwise the same)

  • Expires In
    value

    Token lifetime in seconds

  • Success
    condition

    True if the token was refreshed successfully

  • Error
    value

    Error message if success is false

sso
oauth
apple
refresh
token

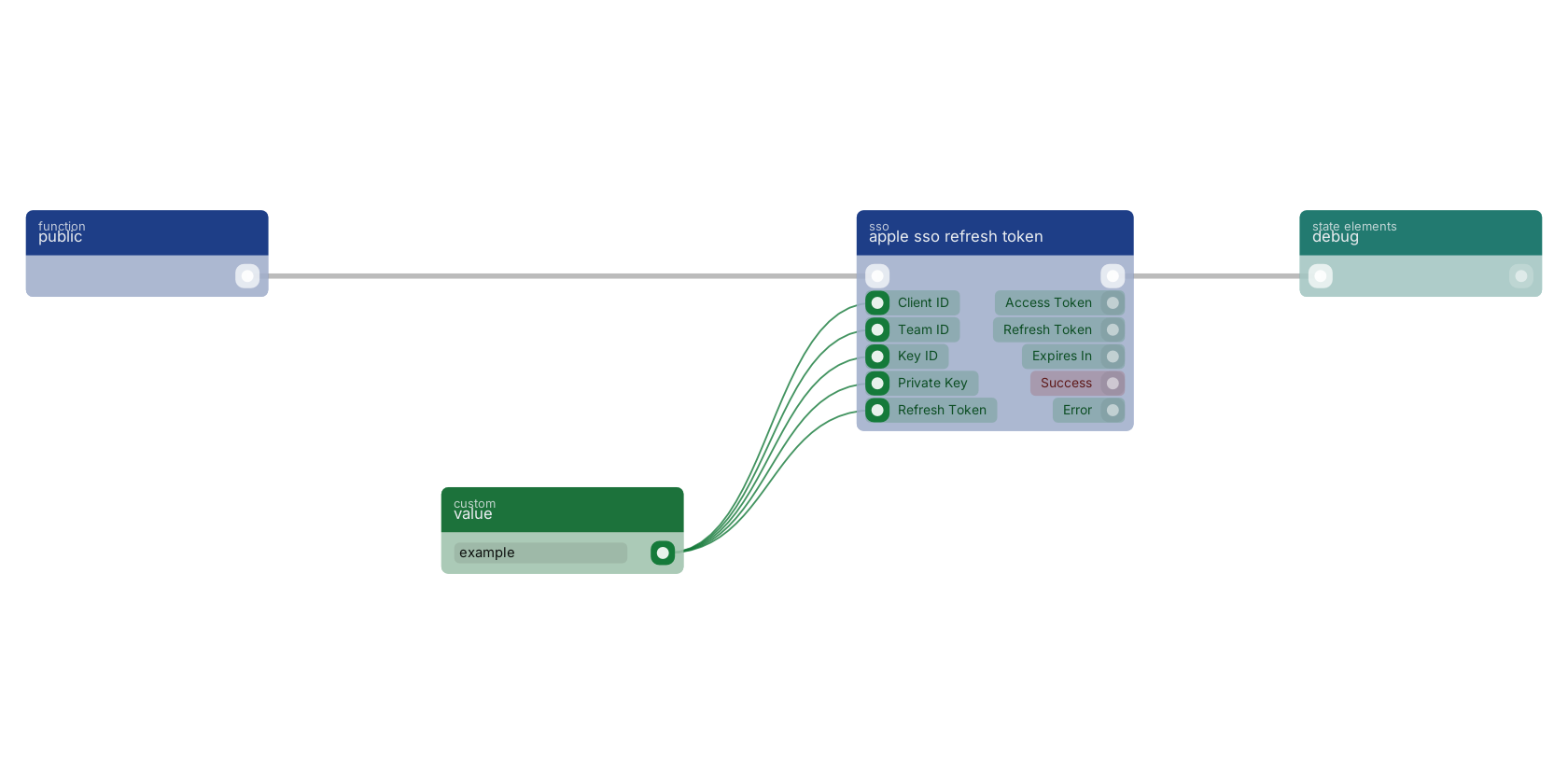

A typical wiring for apple sso refresh token: a function trigger starts the flow; value feeds the client_id pin; value feeds the team_id pin; value feeds the key_id pin; value feeds the private_key pin; value feeds the refresh_token pin; the flow out pin feeds debug.

Studio canvas example for the apple sso refresh token block: typical wiring for apple sso refresh token.

Version history

Introduced in v14.0.4.

Service documentation

External API reference This block wraps a third-party service. Click here for the service's own documentation of the underlying endpoint.
