apple sso verify code

This block is part of the users group and was last modified in core v14.0.4.

apple sso verify code value v14.0.4

Exchange an Apple authorization code for user identity. Returns email, name, and a service token for "user exists by service".

In pins 7 + flow

flow
flow
Client ID required
value
Apple Services ID
Team ID required
value
Your Apple Developer Team ID
Key ID required
value
The Key ID from your Apple private key
Private Key required
value
The PEM private key from Apple Developer portal
Code required
value
The authorization code returned by Apple
Redirect URI required
value
Must be the same redirect URI used when generating the auth URL
User Data
value
The user JSON from Apple's form_post callback. Contains name data and is only sent on the user's first authorization.

Out pins 11 + flow

flow
flow
Email
value
The user email address from the SSO provider
Name
value
The user display name
First name
value
The user first name
Last name
value
The user last name
Service Token
value
Service token in format "{provider}-{id}" for use with "user exists by service" block
Provider User ID
value
The unique user ID at the SSO provider
Access Token
value
The OAuth access token for making API calls on behalf of the user
Refresh Token
value
The OAuth refresh token for obtaining new access tokens
Raw Token
object
The full decoded ID token claims from the provider
Success
condition
True if the code was exchanged successfully
Error
value
Error message if success is false

sso

oauth

apple

single sign on

openid

verify

exchange

callback

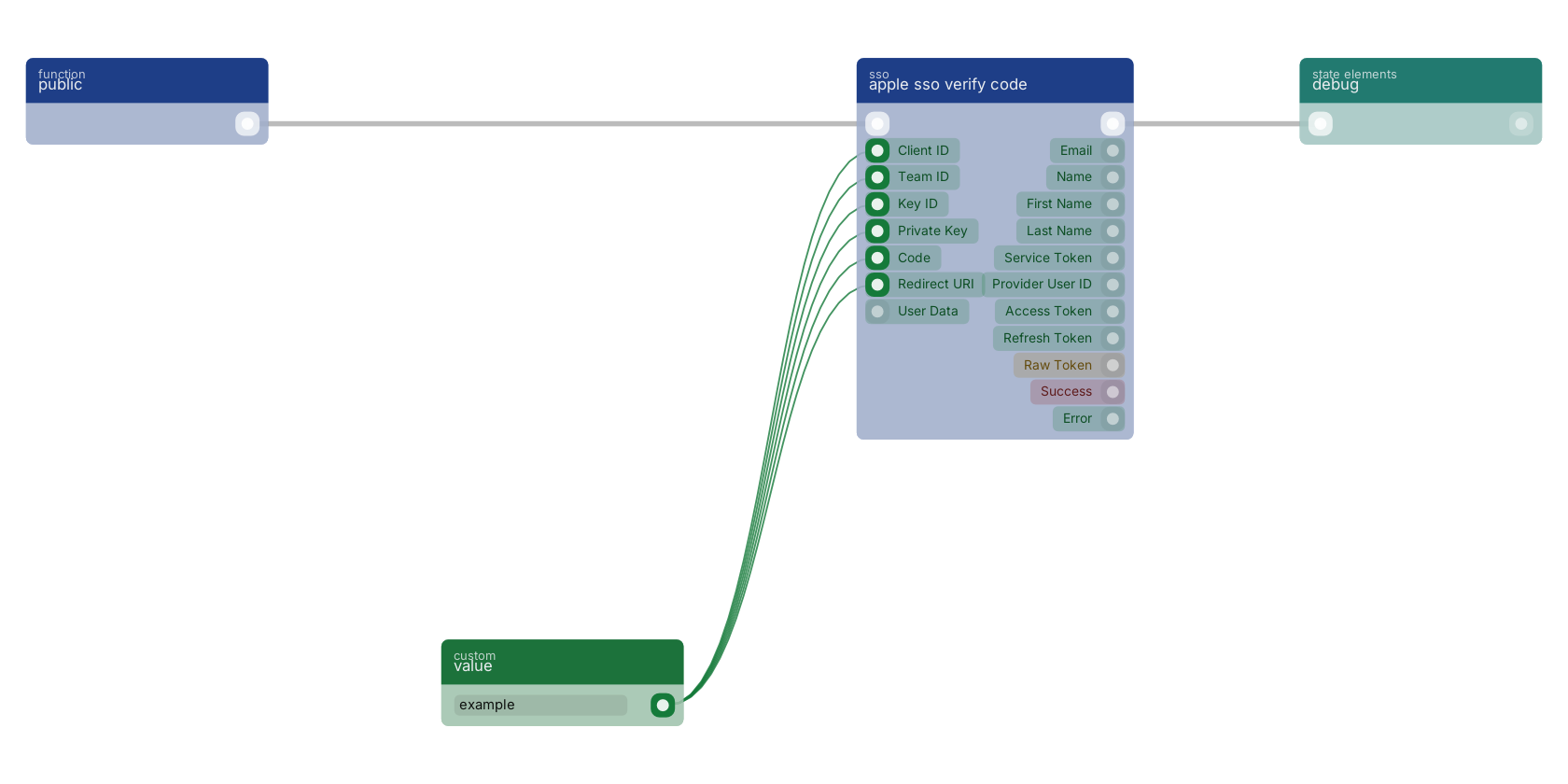

A typical wiring for apple sso verify code: a function trigger starts the flow; value feeds the client_id pin; value feeds the team_id pin; value feeds the key_id pin; value feeds the private_key pin; value feeds the code pin; value feeds the redirect_uri pin; the flow out pin feeds debug.

Studio canvas example for the apple sso verify code block: typical wiring for apple sso verify code.

Version history

Introduced in v14.0.4.

Service documentation

External API reference This block wraps a third-party service. Click here for the service's own documentation of the underlying endpoint.
