Blocks Deprecated

Deprecated: use the web blocks for new pages This block belongs to state pages and UI components. Existing pages keep running, but new pages should use the web blocks. See Web Pages and the migration guide.

scan input

This block is part of the Component UI group and was last modified in core v11.3.0.

scan input uicomponent v11.3.0

Will be autofocused on keydown if no input is given. Executes the connected function on enter or if the given length is reached

In pins 4

Field fielddefinitions required
Field to save the value in
Validate fieldvalidation
Applies the given validation to the element, overwrites attributes given in the attributes popup
Event inputevent
On Scan inpinfunction v10.4.7

Out pins 1

uicomponent uicomponent

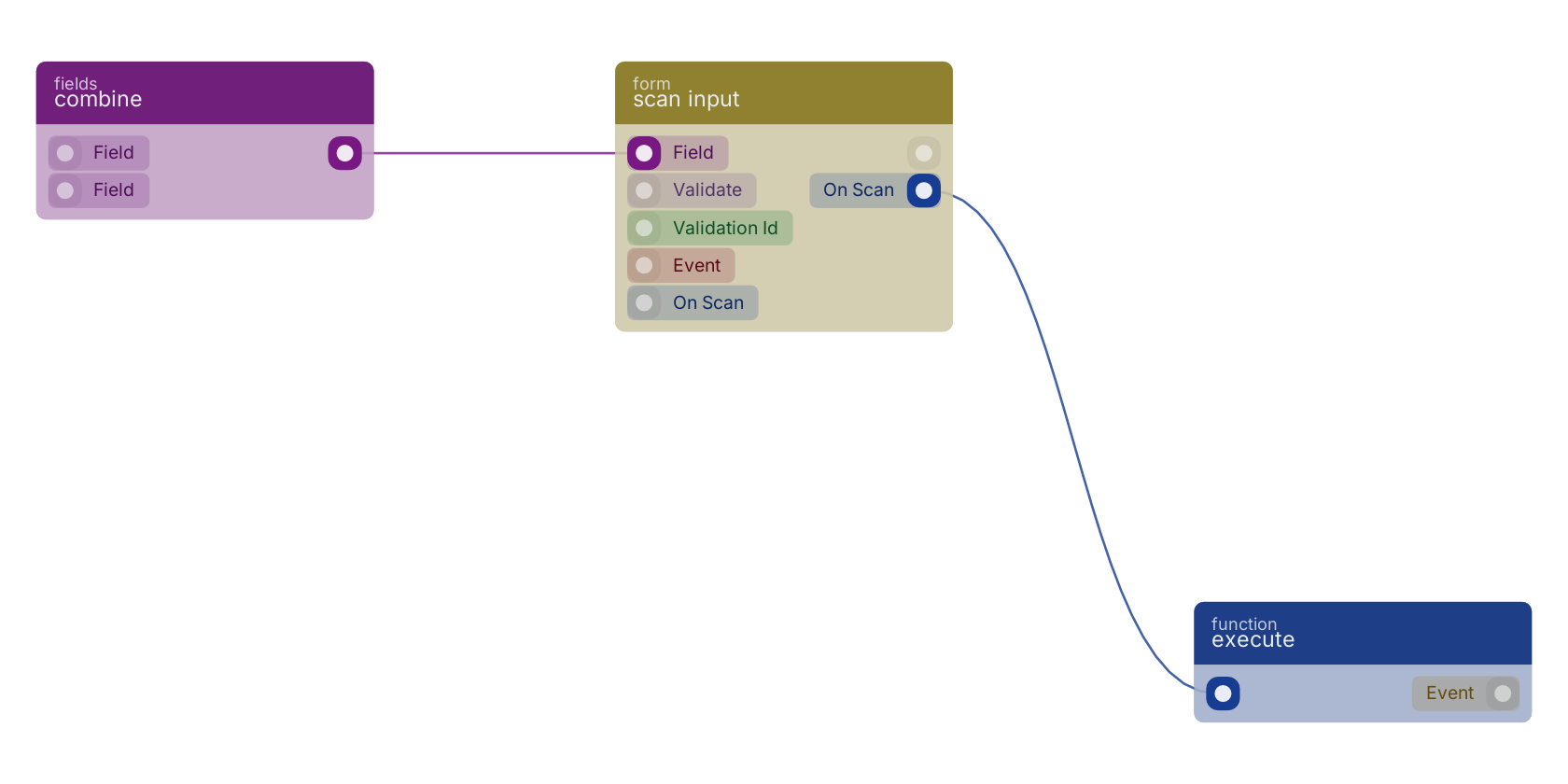

A typical wiring for scan input: combine feeds the co-fields pin; the function out pin wires to an execute block.

Version history

Introduced in v11.3.0.

v10.4.7 This block or one of its pins was updated in v10.4.7, click here to see the release notes.
