get departures

This block is part of the NS group and was last modified in core v15.0.0.

get departures nsconnection v15.0.0

Get the live departure board for a station. Provide the station code or the UIC code.

In pins 6 + flow

flow
flow
Connection required
nsconnection
The NS connection.
Station code required
value
NS station code (e.g. ut for Utrecht Centraal). Either this or the UIC code is required. • Hidden when other fields are filled
UIC code required
value
UIC code of the station. Either this or the station code is required. • Hidden when other fields are filled
Date / time
date
Show departures from this moment onward. Defaults to now.
Max journeys
number
Number of departures to return. Defaults to 40.
Default 40
Language
value
Language for localized text (e.g. nl or en). Defaults to Dutch.

Out pins 6 + flow

flow
flow
Connection
nsconnection
The NS connection.
Success
condition
True if the request succeeded.
Departures
array
The departures, each with direction, planned/actual track, planned_date_time and actual_date_time as unix timestamps, and delay_minutes.
Count
number
Number of departures returned.
Source
value
The data source reported by NS.
Error
value
Error message if the request failed.

vertrektijden

departures

vertrek

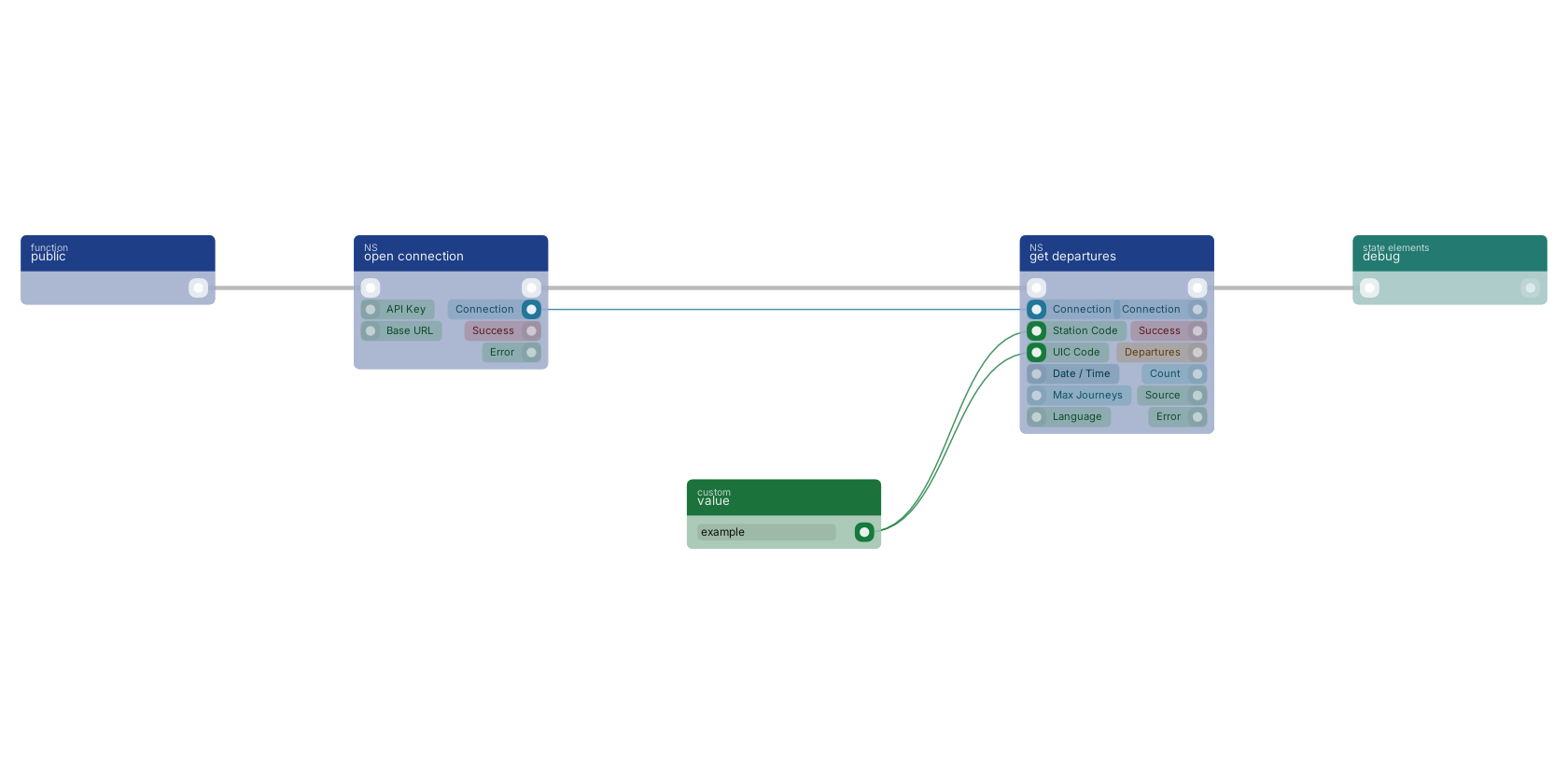

A typical wiring for get departures: a function trigger starts the flow; open connection feeds the connection pin; value feeds the station pin; value feeds the uic_code pin; the flow out pin feeds debug.

Studio canvas example for the get departures block: typical wiring for get departures.

Introduced in v15.0.0.
