get disruptions

This block is part of the NS group and was last modified in core v15.0.0.

get disruptions nsconnection v15.0.0

Get current disruptions and engineering works on the NS network.

In pins 4 + flow

flow
flow
Connection required
nsconnection
The NS connection.
Type
value
Filter on a disruption type (e.g. DISRUPTION, MAINTENANCE, CALAMITY). Leave empty for all. • Suggestions: DISRUPTION MAINTENANCE CALAMITY
Active only
condition
Only return currently active items.
Default false
Language
value
Language for the disruptions (e.g. nl or en). Defaults to Dutch.

Out pins 5 + flow

flow
flow
Connection
nsconnection
The NS connection.
Success
condition
True if the request succeeded.
Disruptions
array
The disruptions, with snake_cased fields and timestamps converted to unix.
Count
number
Number of disruptions returned.
Error
value
Error message if the request failed.

storingen

werkzaamheden

disruptions

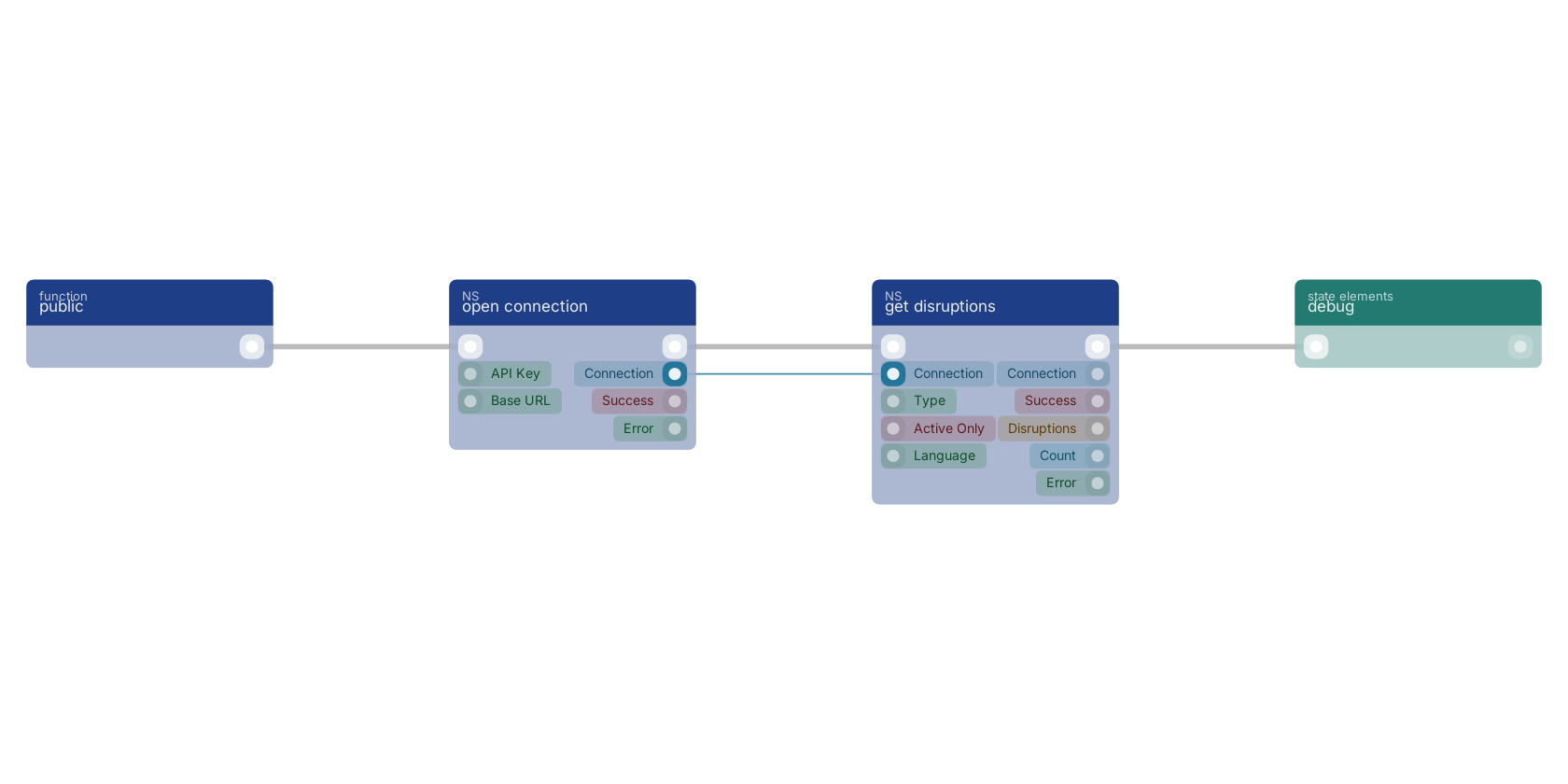

A typical wiring for get disruptions: a function trigger starts the flow; open connection feeds the connection pin; the flow out pin feeds debug.

Studio canvas example for the get disruptions block: typical wiring for get disruptions.

Introduced in v15.0.0.
