raw request

This block is part of the NS group and was last modified in core v15.0.0.

raw request v15.0.0

Perform a raw GET request against any NS Reisinformatie API path. Use this for endpoints without a dedicated block.

In pins 3 + flow
  • flow
  • Connection nsconnection required

    The NS connection.

  • Path value required

    API path, e.g. /api/v2/stations or /api/v3/price.

  • Query object

    Optional object of query parameters to send.

Out pins 5 + flow
  • flow
  • Connection nsconnection

    The NS connection.

  • Success condition

    True for a 2xx response.

  • Status code number

    The HTTP status code of the response.

  • Response object

    The decoded JSON response body.

  • Error value

    Error message if the request failed.

ns request
custom

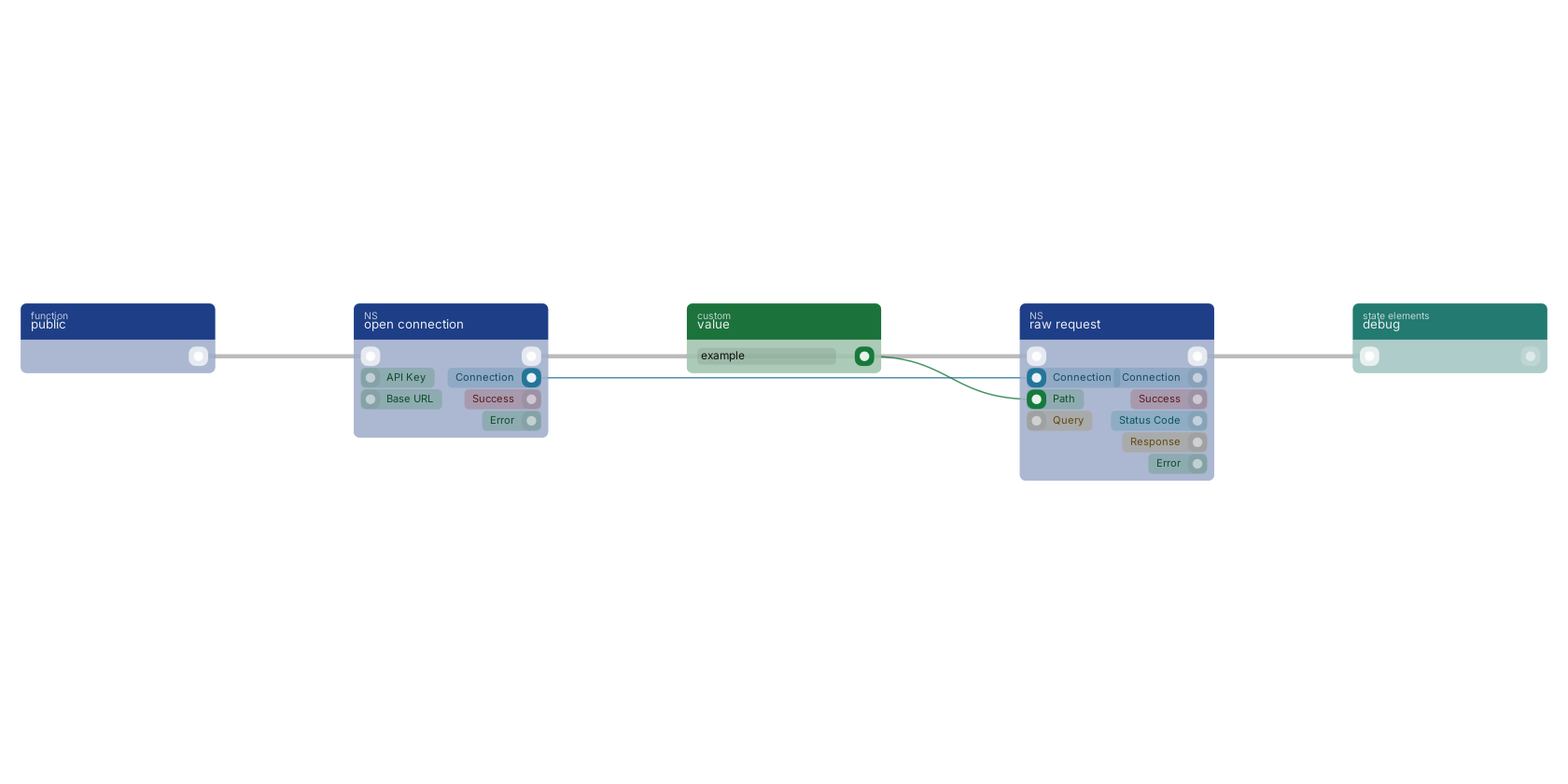

A typical wiring for raw request: a function trigger starts the flow; open connection feeds the connection pin; value feeds the path pin; the flow out pin feeds debug.

Studio canvas example for the raw request block: typical wiring for raw request.

Version history

Introduced in v15.0.0.
