plan trip

This block is part of the NS group and was last modified in core v15.0.0.

plan trip nsconnection v15.0.0

Plan a journey between an origin and a destination. Each endpoint accepts a station code, a UIC code, or a geo point.

In pins 15 + flow

flow
flow
Connection required
nsconnection
The NS connection.
From station code required
value
Origin NS station code (e.g. asd for Amsterdam Centraal). • Hidden when other fields are filled
From UIC code
value
Origin UIC code. • Hidden when other fields are filled
From geo point
geo_point
Origin coordinate (for door-to-door planning). • Hidden when other fields are filled
From name
value
Optional label for the origin coordinate.
To station code required
value
Destination NS station code. • Hidden when other fields are filled
To UIC code
value
Destination UIC code. • Hidden when other fields are filled
To geo point
geo_point
Destination coordinate (for door-to-door planning). • Hidden when other fields are filled
To name
value
Optional label for the destination coordinate.
Via station code
value
Optional station code to route via.
Via UIC code
value
Optional UIC code to route via.
Via geo point
geo_point
Optional coordinate to route via.
Date / time
date
Departure (or arrival) moment for the trip. Defaults to now.
Search for arrival
condition
When true, the date/time is treated as the desired arrival time instead of departure.
Default false
Language
value
Language for localized text (e.g. nl or en). Defaults to Dutch.

Out pins 5 + flow

flow
flow
Connection
nsconnection
The NS connection.
Success
condition
True if the request succeeded.
Trips
array
The trip options, each with planned/actual departure and arrival as unix timestamps, transfers, delays and per-leg details.
Count
number
Number of trips returned.
Error
value
Error message if the request failed.

reisadvies

trips

journey

reisplanner

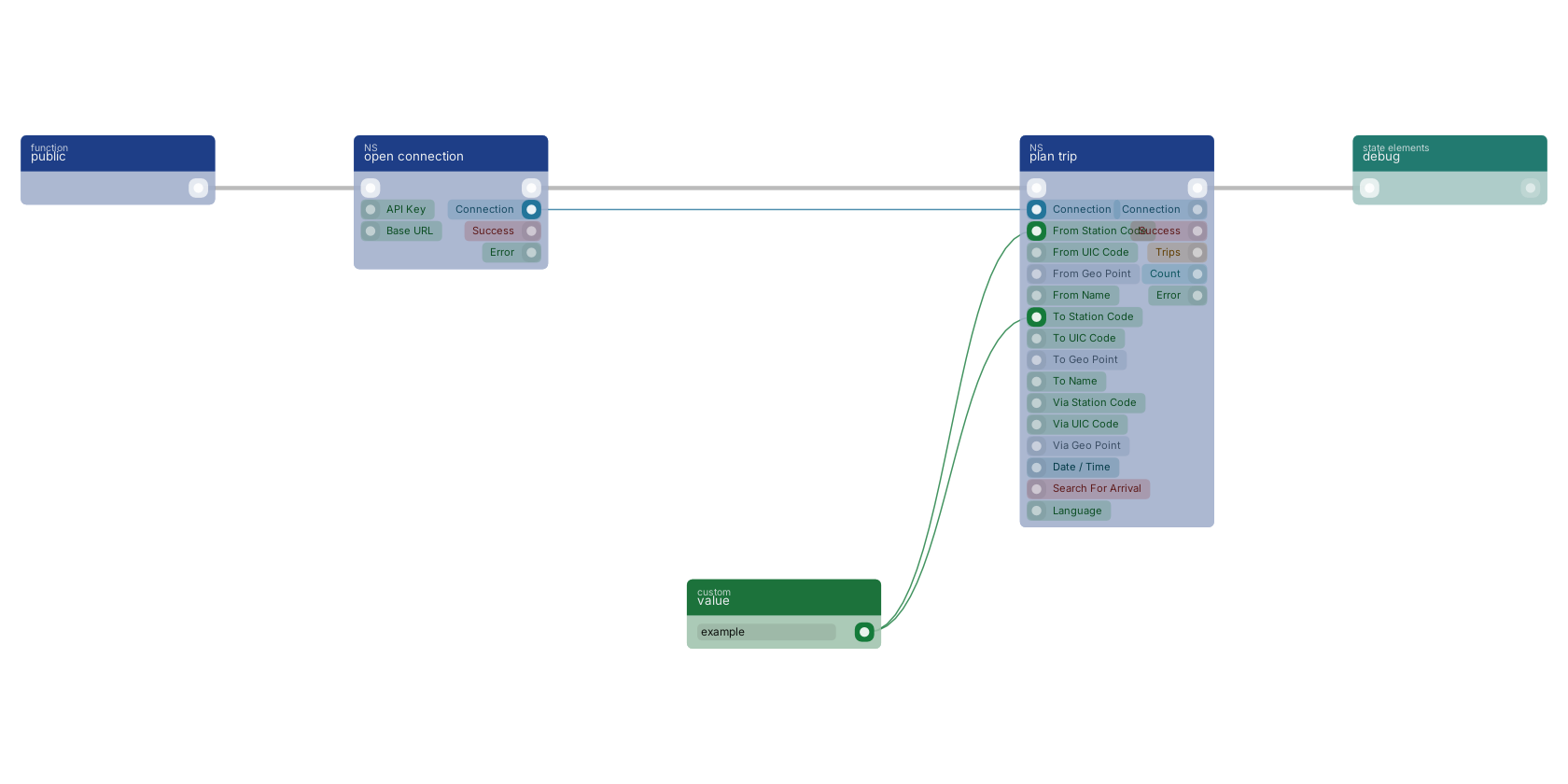

A typical wiring for plan trip: a function trigger starts the flow; open connection feeds the connection pin; value feeds the from_station pin; value feeds the to_station pin; the flow out pin feeds debug.

Studio canvas example for the plan trip block: typical wiring for plan trip.

Introduced in v15.0.0.
