ekt formatter
This block is part of the edifact group and was last modified in core v12.0.7.
ekt formatter v11.5.18 Updated v12.0.7Converts object to edifact ekt file
- flow
flow - filename required
value - EKT Object required
object - use windows newline
v12.0.7conditionWill use \r\n instead of \n if set to true.
- flow
flow - file
file - success
condition - error
value
Serializes the EKT input object into a Floricode CLOCKT v3.8 EDIFACT message, writes it to temp/{guid}.tmp, and outputs a one-item file array ({filename}.edi, path, base64 data, type text/plain). A nil or non-object input fails with EDIFORMATTER_EMPTY_EDI_INPUT. Field values have apostrophes and plus signs stripped, each line's price is divided by 1000 when numeric, and use_windows_newline switches line endings from \n to \r\n; the UNT segment count deliberately keeps the reference implementation's off-by-one.

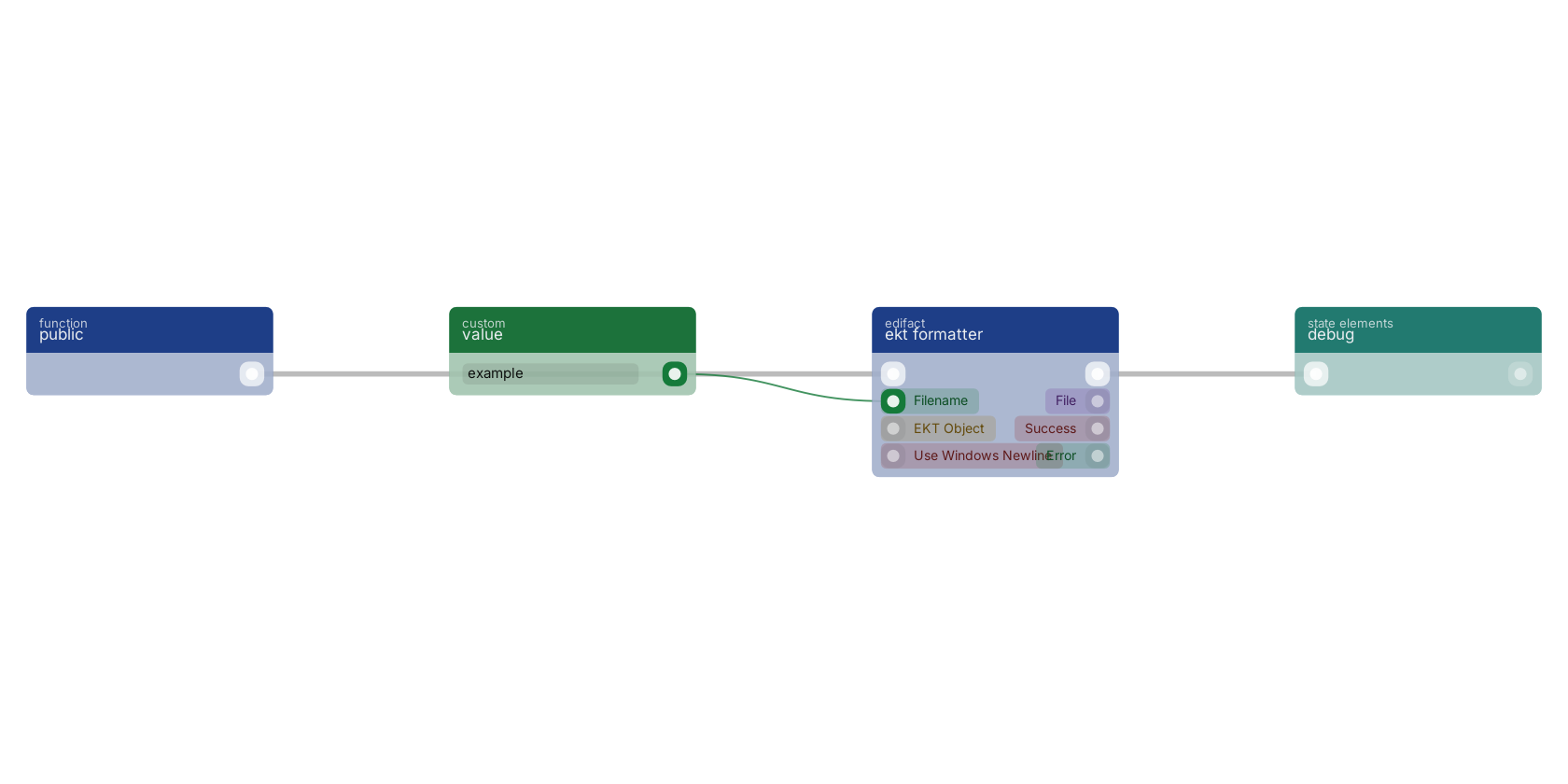

A typical wiring for ekt formatter: a function trigger starts the flow; value feeds the filename pin; the flow out pin feeds debug.
Version history
Introduced in v11.5.18.
Last modified in v12.0.7.
