merge

This block is part of the files group and was last modified in core v12.1.1.

merge v12.1.1

Merge two images using sharp.

In pins 3 + flow
  • flow
  • images file required
  • default options object required
  • options per image array required

    Will take the options based on the image index. Index 0 will be the first image overlayed.

Out pins 3 + flow
  • flow
  • success condition
  • error value
  • file file
composite

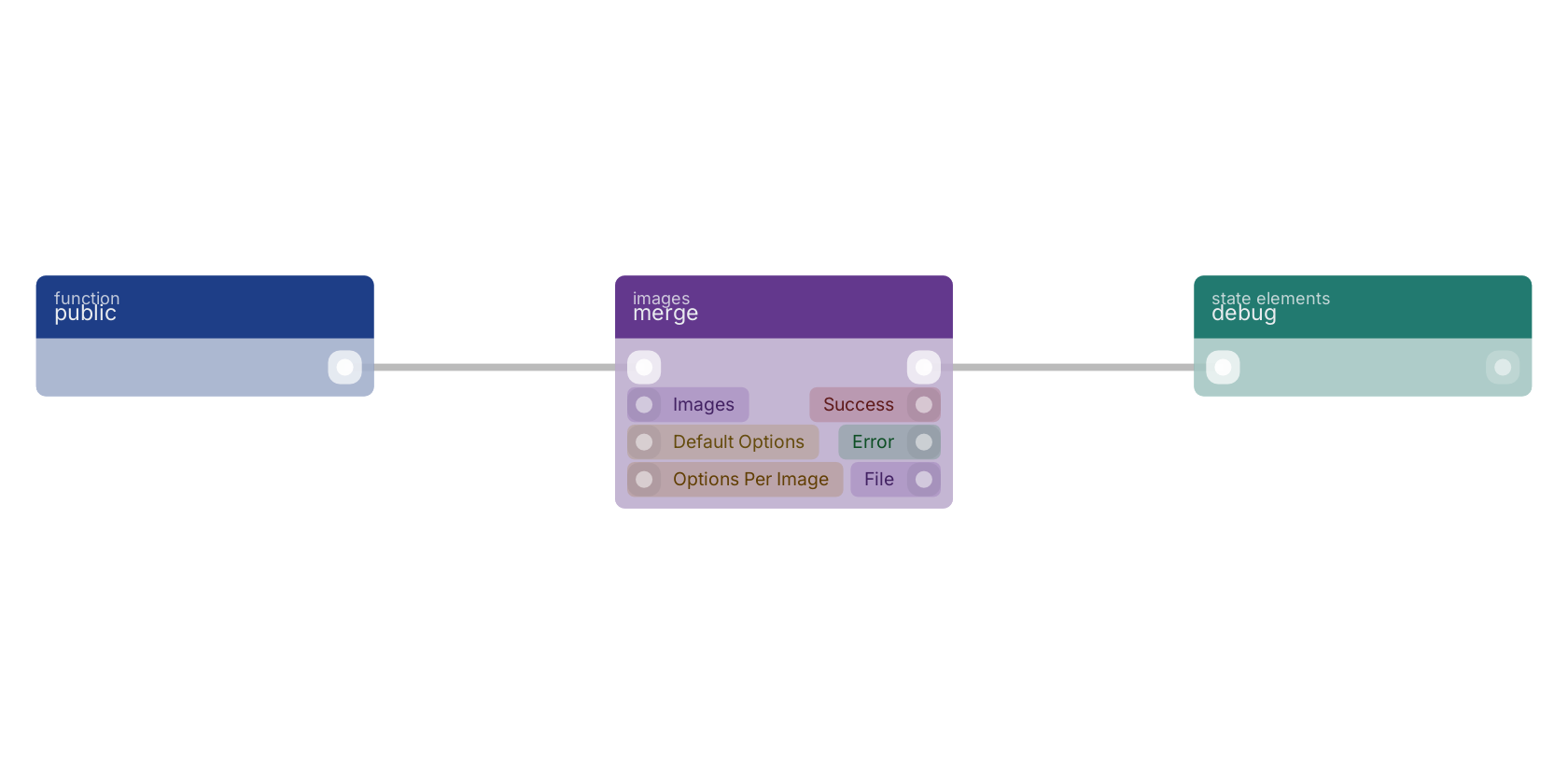

A typical wiring for merge: a function trigger starts the flow; the flow out pin feeds debug.

Studio canvas example for the merge block: typical wiring for merge.

Version history

Introduced in v12.1.1.
