travel mode from points
This block is part of the geopoint group and was last modified in core v15.0.0.
travel mode from points v15.0.0 Classifies which network a series of GPS points is travelling on (road pinning): when at least min ratio of the points lie within max distance of a road or railway, the traveller is pinned to that network : e.g. the last 5 fixes near a road means driving, near a railway means riding a train. When both networks qualify the one with the smaller mean distance wins. Outputs the mode (road, rail or none), per-network conditions, the match confidence and the points snapped onto the matched network. A single geo point object is accepted as well; entries without numeric lat/lon are ignored. Offline lookup against the road/rail network (Benelux, OpenStreetMap).
- geo points required
arrayrecent GPS points to classify, e.g. the last 5 fixes of a user; a single geo point object is also accepted
- type
valuenetwork to test against: auto (road vs rail), road or rail
- max distance
numbermaximum distance in metres for a point to count as on the network
- min ratio
numberfraction of the points (0..1) that must be within max distance to match
- mode
valuedetected travel mode: road, rail or none
- on road
conditiontrue when the points match the road network (driving)
- on rail
conditiontrue when the points match the rail network (riding a train)
- confidence
numberfraction of the points within max distance of the matched network
- mean distance
numbermean distance in metres from the points to the matched network
- snapped points
arraythe points pinned onto the matched network, in input order: lat, lon, snapped, distance
- success
condition - error
value

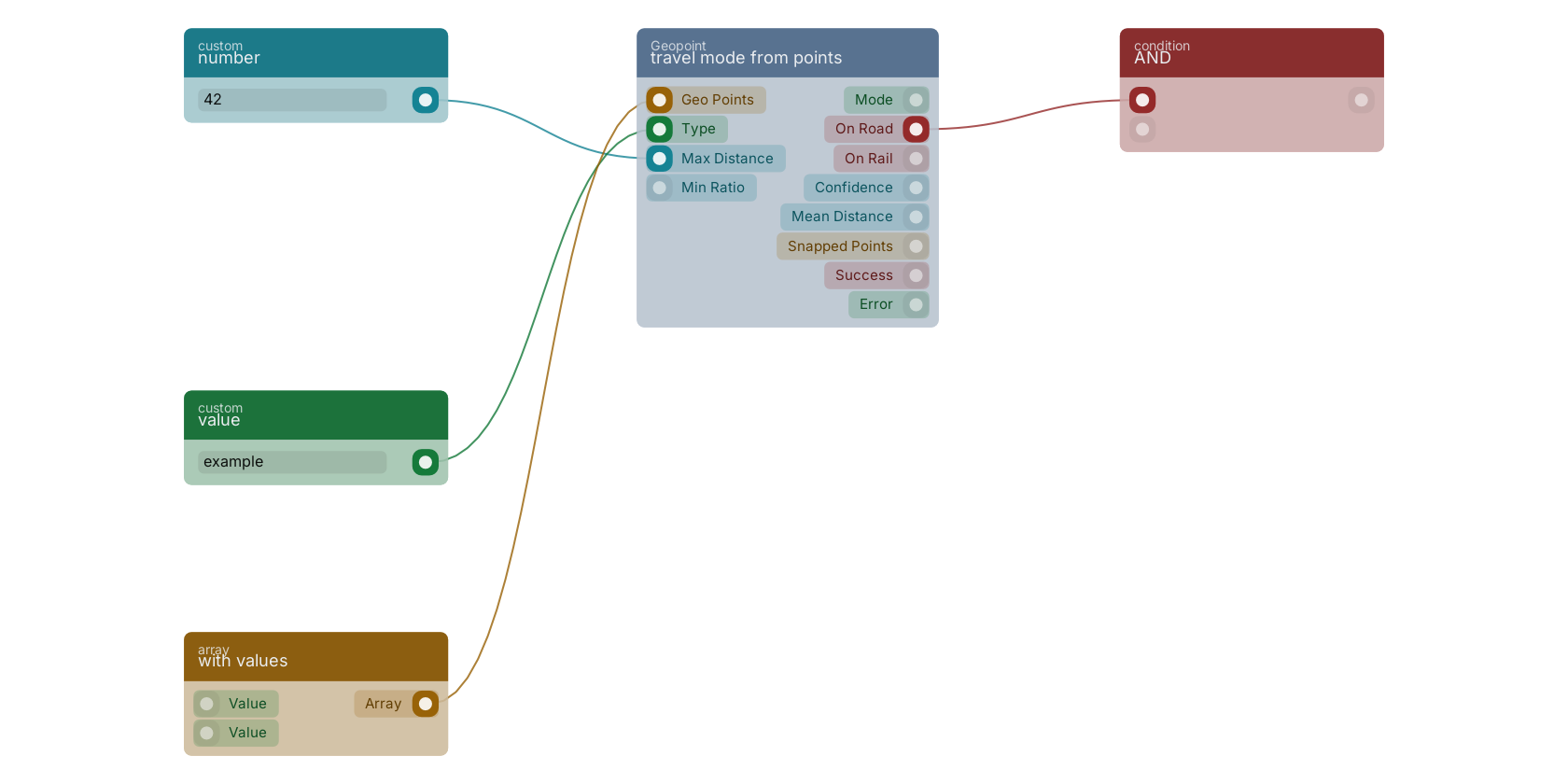

A typical wiring for travel mode from points: number feeds the max_distance pin; value feeds the type pin; with values feeds the geo_points pin; the on_road out pin feeds AND.
Commonly used with
In production blueprints, this block is most often wired together with:
- return: this block feeds into it. Returns the added custom pins as data-pins on the function execute.
- AND: this block feeds into it. operator for a set of boolean operands will be true if and only if all the operands are true.
- number: feeds into this block. Generates a valid number from the filled custom value in the blueprint.
- execute: feeds into this block. Executes the given funcion and waits for it to be executed.
- value: feeds into this block. Simply returns the provided value.
Version history
Introduced in v15.0.0.
