device adopt

This block is part of the globals group and was last modified in core v15.0.0.

device adopt condition v15.0.0

Takes a discovered device into service, so triggers fire for it and blocks can command it.

In pins 3 + flow

flow v15.0.0
flow
device v15.0.0
value
Device id, native address, or exact device name. Leave empty to use the device picked on the block.
name v15.0.0
value
Rename while adopting.
room v15.0.0
value
Assign a room while adopting.

Out pins 4 + flow

flow v15.0.0
flow
ok v15.0.0
condition
newly adopted v15.0.0
condition
True only when this call is what adopted it.
device v15.0.0
object
error v15.0.0
value

Adoption is the gate between 'the radio can hear this' and 'this is part of my system'. An unadopted device is tracked and visible but fires no triggers and refuses every command. Idempotent: adopting an already-adopted device succeeds and reports adopted=false for `newly`. Typically wired to a device discovered trigger, or called from an onboarding screen.

zigbee

zwave

matter

thread

hue

smart home

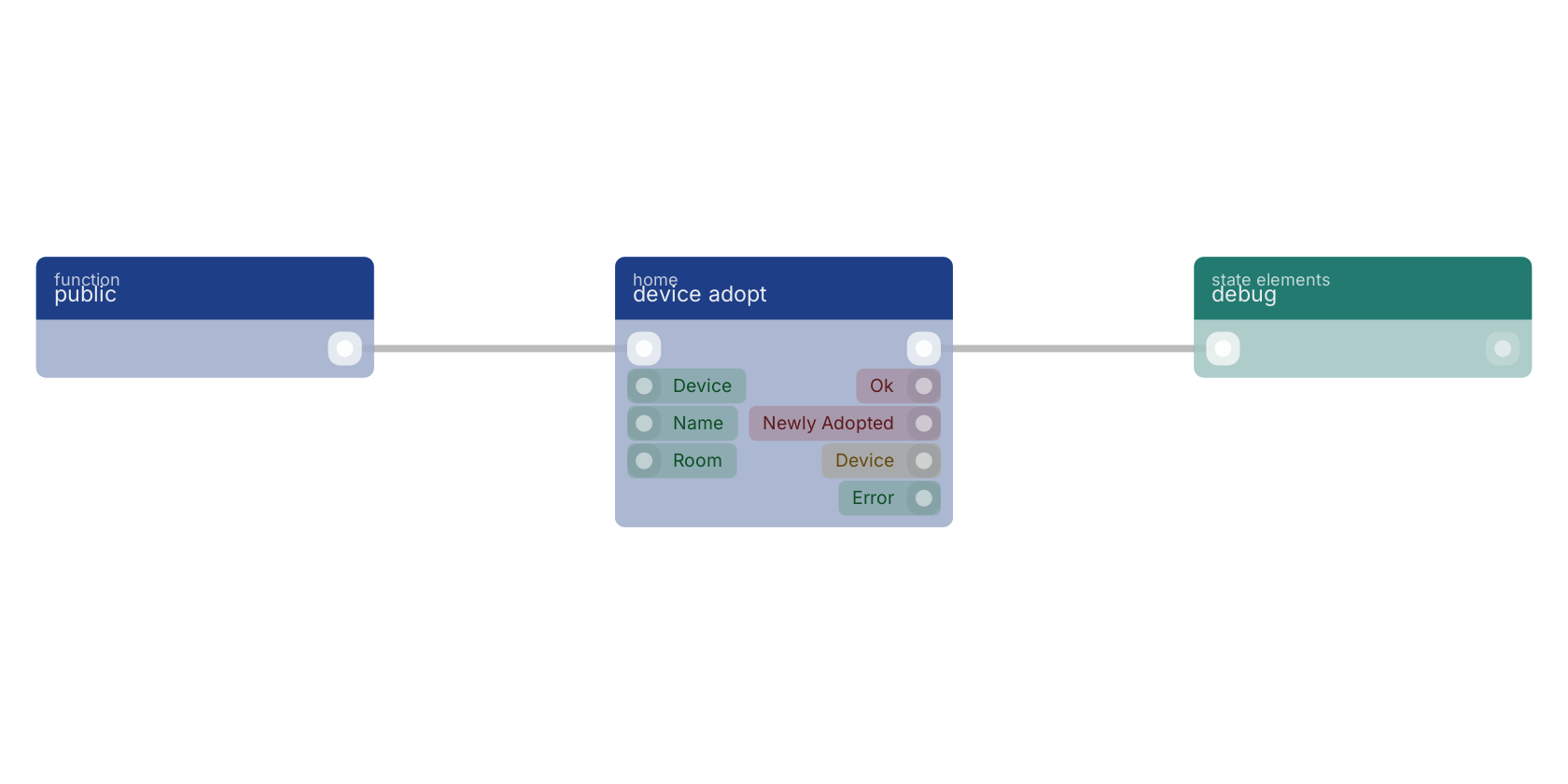

A typical wiring for device adopt: a function trigger starts the flow; the flow out pin feeds debug.

Used in these guides

These documentation pages use or explain this block:

Action Reference

Version history

Introduced in v15.0.0.
