light dim

This block is part of the globals group and was last modified in core v15.0.0.

light dim condition v15.0.0

Sets a light's brightness without changing anything else.

In pins 2 + flow

flow v15.0.0
flow
device v15.0.0
value
Device id, native address, or exact device name. Leave empty to use the device picked on the block.
brightness % required v15.0.0
number
0-100. • Min: 0 • Max: 100

Out pins 3 + flow

flow v15.0.0
flow
ok v15.0.0
condition
True when the command reached the device.
device v15.0.0
object
The device the command was sent to.
error v15.0.0
value
Empty on success. HOMEASSIST_DEVICE_NOT_FOUND, HOMEASSIST_DEVICE_NOT_ADOPTED, HOMEASSIST_CAPABILITY_UNSUPPORTED or HOMEASSIST_NOT_AVAILABLE.

Sets brightness 0-100 percent. Setting 0 turns most lamps off; to be explicit, use light off. Turning the lamp on is implied : setting a brightness on a lamp that is off turns it on at that brightness rather than storing it for later.

zigbee

zwave

matter

thread

hue

smart home

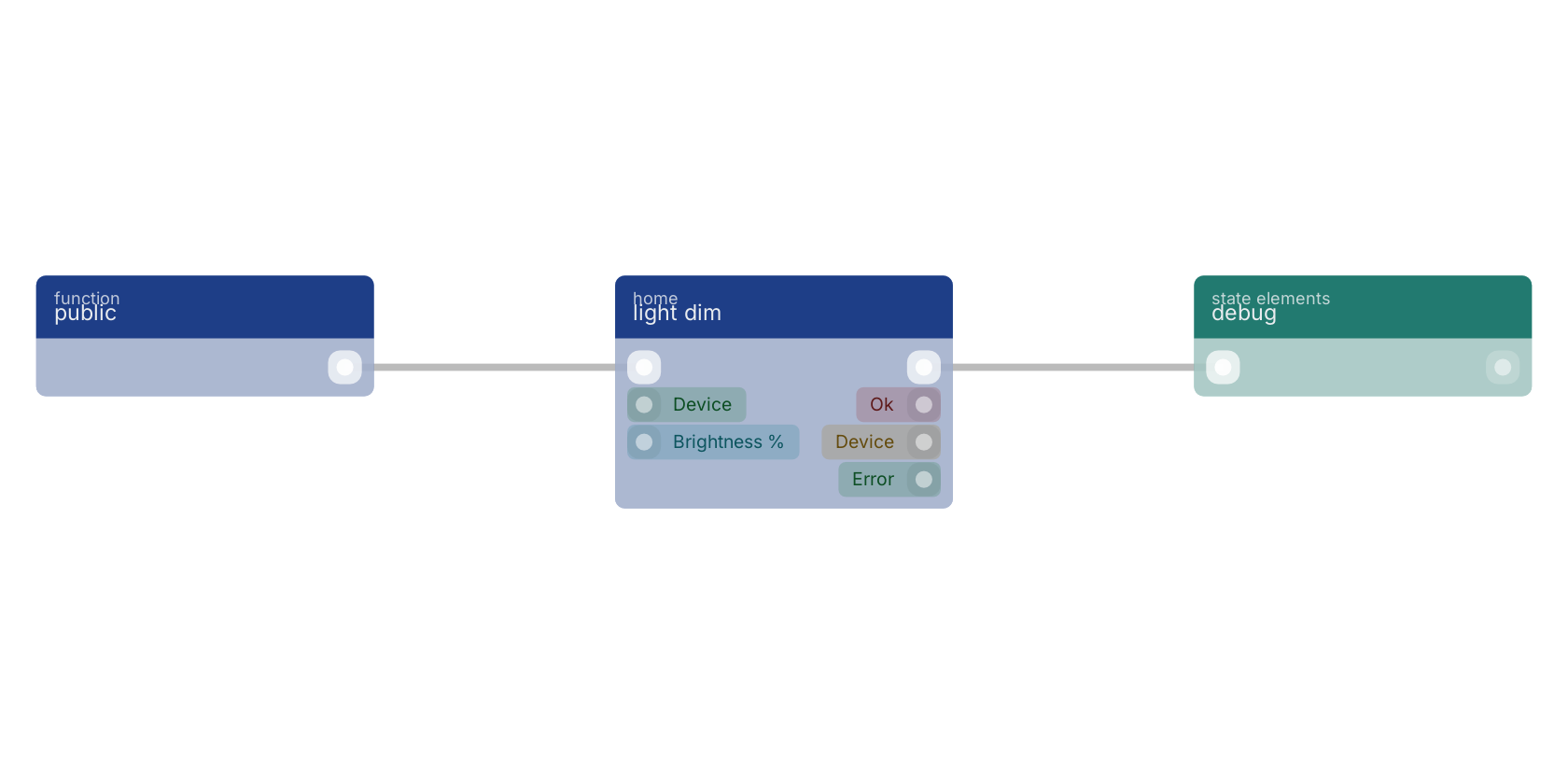

A typical wiring for light dim: a function trigger starts the flow; the flow out pin feeds debug.

Used in these guides

These documentation pages use or explain this block:

Action Reference

Version history

Introduced in v15.0.0.
