get status

This block is part of the globals group and was last modified in core v15.0.0.

get status array v15.0.0

Returns which radios are connected and how many devices are known.

In pins 0 + flow

flow v15.0.0
flow

Out pins 4 + flow

flow v15.0.0
flow
adapters v15.0.0
array
One entry per adapter: {name, connected}.
devices total v15.0.0
number
devices adopted v15.0.0
number
healthy v15.0.0
condition
True when every configured adapter is connected.

Health check for the home-automation service: per-adapter connection state plus device counts. Use it to notice a Zigbee bridge that has gone away, which otherwise looks identical to a quiet house.

zigbee

zwave

matter

thread

hue

smart home

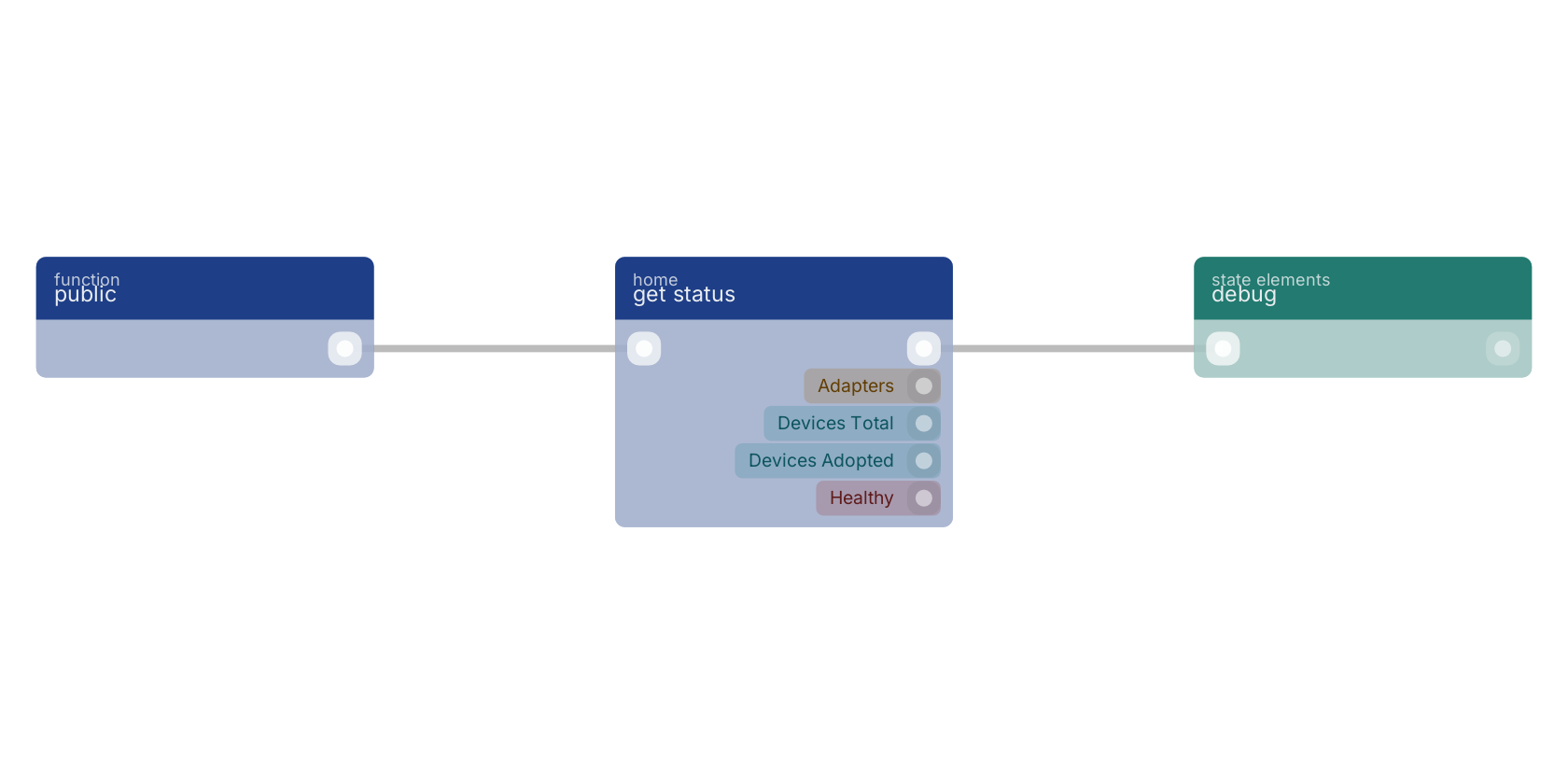

A typical wiring for get status: a function trigger starts the flow; the flow out pin feeds debug.

Used in these guides

These documentation pages use or explain this block:

Action Reference

Version history

Introduced in v15.0.0.
