button pressed

This block is part of the globals group and was last modified in core v15.0.0.

button pressed object v15.0.0

Starts the flow when a button or scene switch is pressed. The `value` pin says which press it was: single, double, hold, release.

In pins 2

device v15.0.0
value
Only fire for this device. Leave empty to fire for every matching device.
room v15.0.0
value
Only fire for devices in this room. Leave empty for every room.

Out pins 9 + flow

flow v15.0.0
flow
device v15.0.0
object
The full device: id, name, room, type, capabilities, current state.
device id v15.0.0
value
Stable platform id, e.g. zigbee:0x00158d0007e1a2b3.
name v15.0.0
value
The device's friendly name.
room v15.0.0
value
The room the device is assigned to, empty if none.
type v15.0.0
value
sensor, light, switch, climate, cover, lock or button.
capability v15.0.0
value
Which capability changed, e.g. occupancy, contact, power.
value v15.0.0
value
The new value.
previous v15.0.0
value
The value before this change, empty on the first report.
at v15.0.0
number
Unix seconds the device reported.

Start-of-flow trigger for momentary controls (Aqara buttons, Hue dimmers, scene switches). Fires on EVERY press, including a repeat of the same press type : button events are pulses with no meaningful 'unchanged' state, so the usual transition filter does not apply. Branch on the `value` pin to tell single from double from hold; the exact strings are the device's own.

zigbee

zwave

matter

thread

smart home

home assistant

trigger

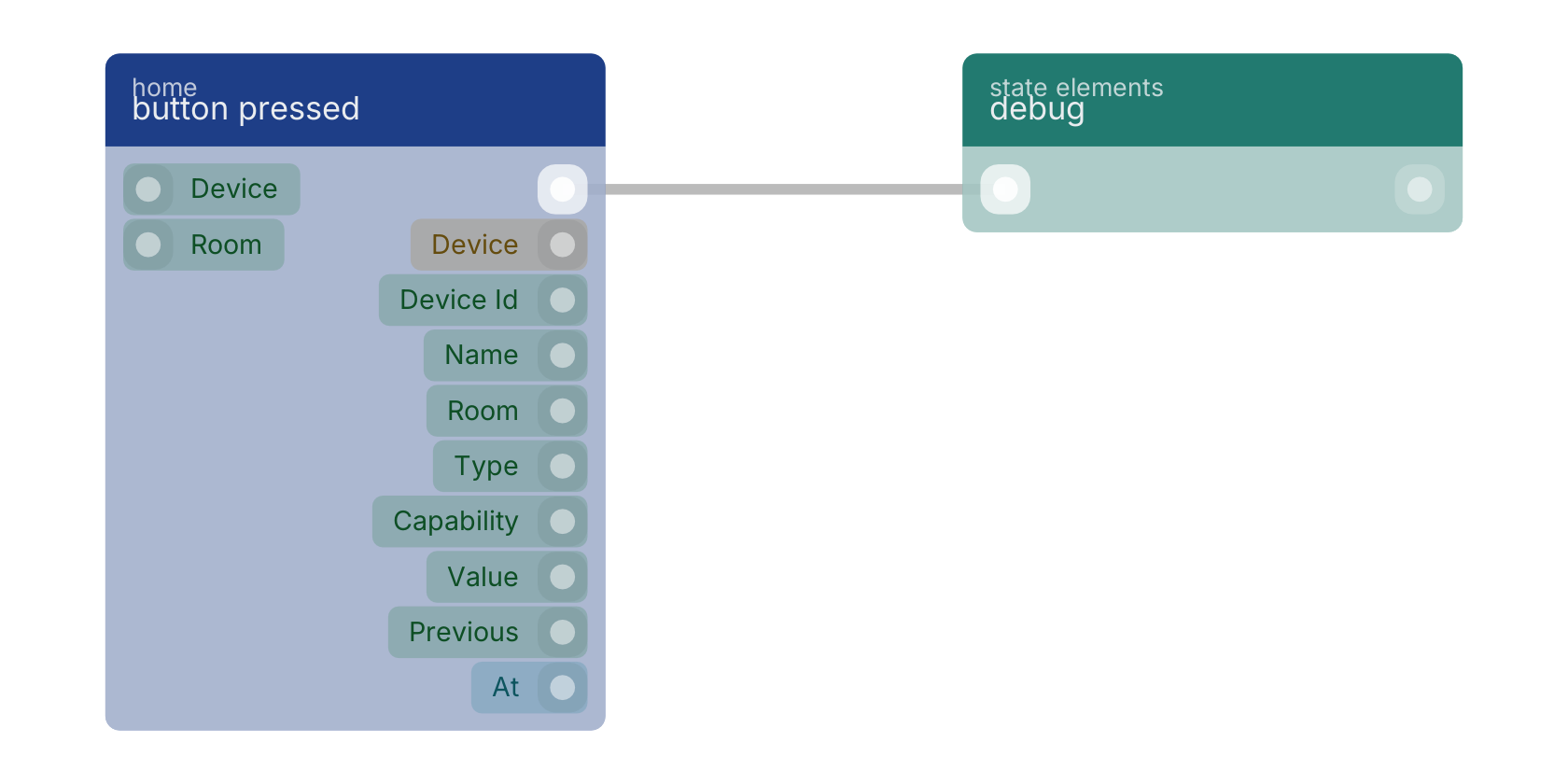

A typical wiring for button pressed: the flow out pin feeds debug.

Used in these guides

These documentation pages use or explain this block:

Trigger Reference

Version history

Introduced in v15.0.0.
