device adopted

This block is part of the globals group and was last modified in core v15.0.0.

device adopted object v15.0.0

Starts the flow when a device is taken into service.

In pins 2

device v15.0.0
value
Only fire for this device. Leave empty to fire for every matching device.
room v15.0.0
value
Only fire for devices in this room. Leave empty for every room.

Out pins 9 + flow

flow v15.0.0
flow
device v15.0.0
object
The full device: id, name, room, type, capabilities, current state.
device id v15.0.0
value
Stable platform id, e.g. zigbee:0x00158d0007e1a2b3.
name v15.0.0
value
The device's friendly name.
room v15.0.0
value
The room the device is assigned to, empty if none.
type v15.0.0
value
sensor, light, switch, climate, cover, lock or button.
capability v15.0.0
value
Which capability changed, e.g. occupancy, contact, power.
value v15.0.0
value
The new value.
previous v15.0.0
value
The value before this change, empty on the first report.
at v15.0.0
number
Unix seconds the device reported.

Start-of-flow trigger. Fires when a device is adopted, whether by the API, the studio, or a flow calling `device adopt`. Use it to set a room, apply defaults, or announce the new device.

zigbee

zwave

matter

thread

smart home

home assistant

trigger

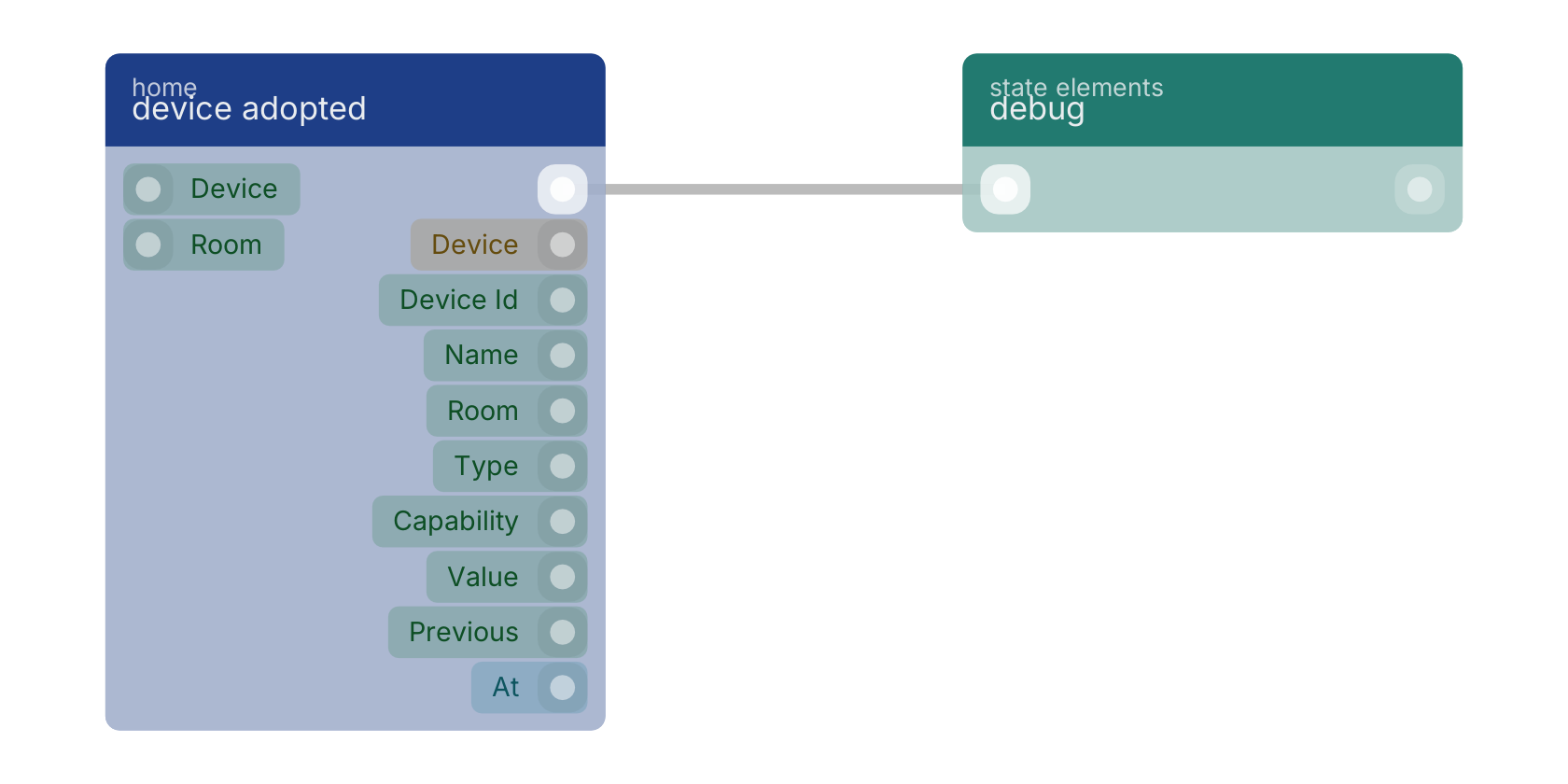

A typical wiring for device adopted: the flow out pin feeds debug.

Used in these guides

These documentation pages use or explain this block:

Trigger Reference

Version history

Introduced in v15.0.0.
