door or gate unlocked
This block is part of the globals group and was last modified in core v15.0.0.

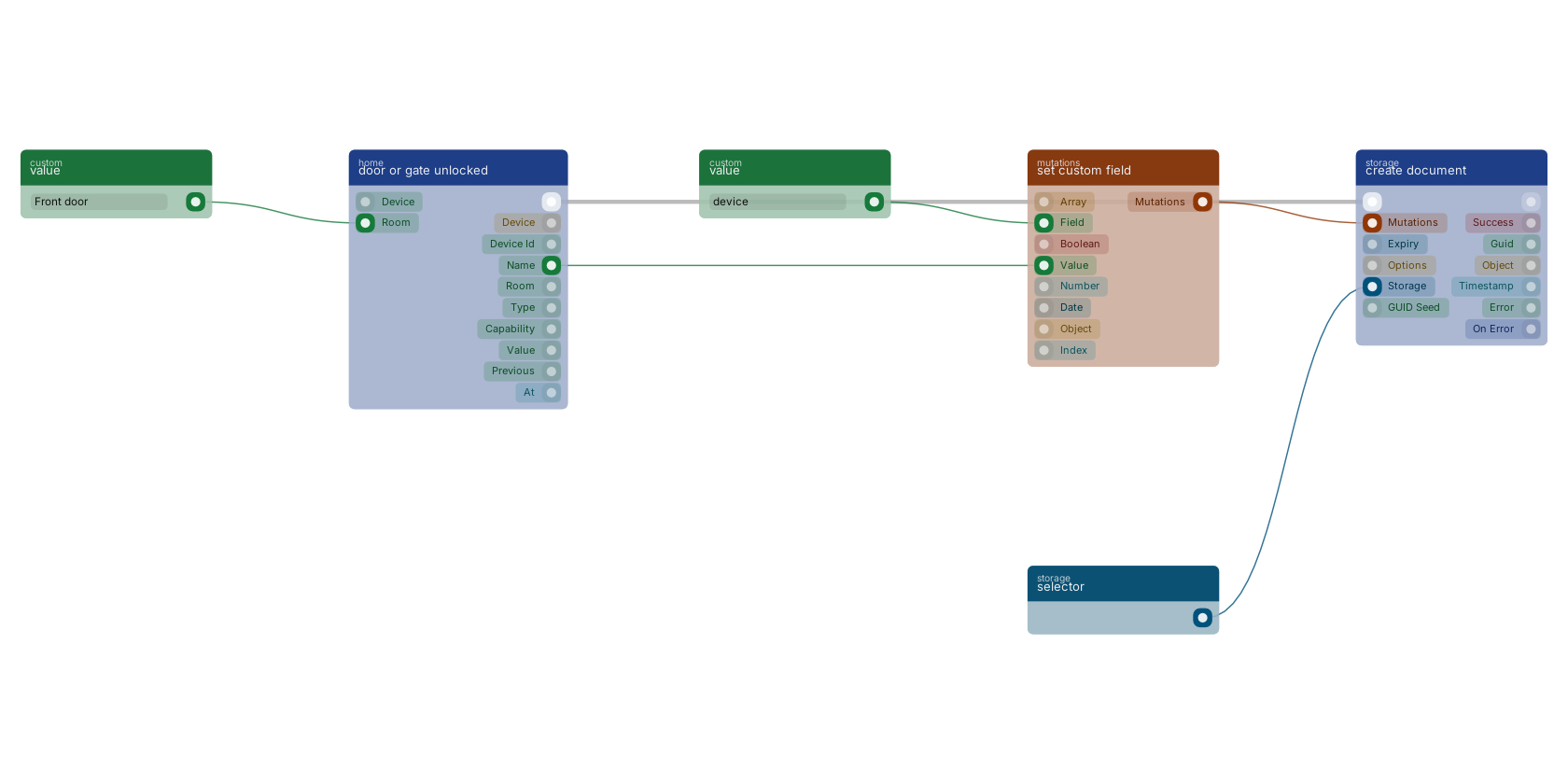

door or gate unlocked v15.0.0 Starts the flow when the lock releases, whether or not the door then opens.
- device
v15.0.0valueOnly fire for this device. Leave empty to fire for every matching device.
- room
v15.0.0valueOnly fire for devices in this room. Leave empty for every room.
- flow
v15.0.0flow - device
v15.0.0objectThe full device: id, name, room, type, capabilities, current state.
- device id
v15.0.0valueStable platform id, e.g. zigbee:0x00158d0007e1a2b3.
- name
v15.0.0valueThe device's friendly name.
- room
v15.0.0valueThe room the device is assigned to, empty if none.
- type
v15.0.0valuesensor, light, switch, climate, cover, lock or button.
- capability
v15.0.0valueWhich capability changed, e.g. occupancy, contact, power.
- value
v15.0.0valueThe new value.
- previous
v15.0.0valueThe value before this change, empty on the first report.
- at
v15.0.0numberUnix seconds the device reported.
Start-of-flow trigger on the lock_state capability transitioning to "unlocked". This is the ELECTRICAL state of the lock, not the physical position of the door : use door_opened for that. A momentary unlock fires this and then fires door_locked again seconds later when the relay re-locks itself, which is normal.
zigbee |
zwave |
matter |
thread |
smart home |
home assistant |
trigger |
Version history
Introduced in v15.0.0.
