on api patch

This block is part of the http connection group and was last modified in core v10.3.2.

on api patch execute_function v10.3.2

Exposes URI on /api/

In pins 1

lowercase body
condition
If set to true, we'll automatically lowercase all JSON root-body keys. userName will become username.
Default false

Out pins 1

On Request
execute_function

Startup registration block, not a flow executor: at startup (and on every save) it registers PATCH /api/{version}/{uri} and wires it to the function connected to the On Request outpin, which receives connection, params, query and body pins per request. Version defaults to v1; the lower_keys pin lowercases all root-level JSON body keys (userName -> username). A route without any scope is LOCKED with 403 : not public; use *public to expose it.

register patch

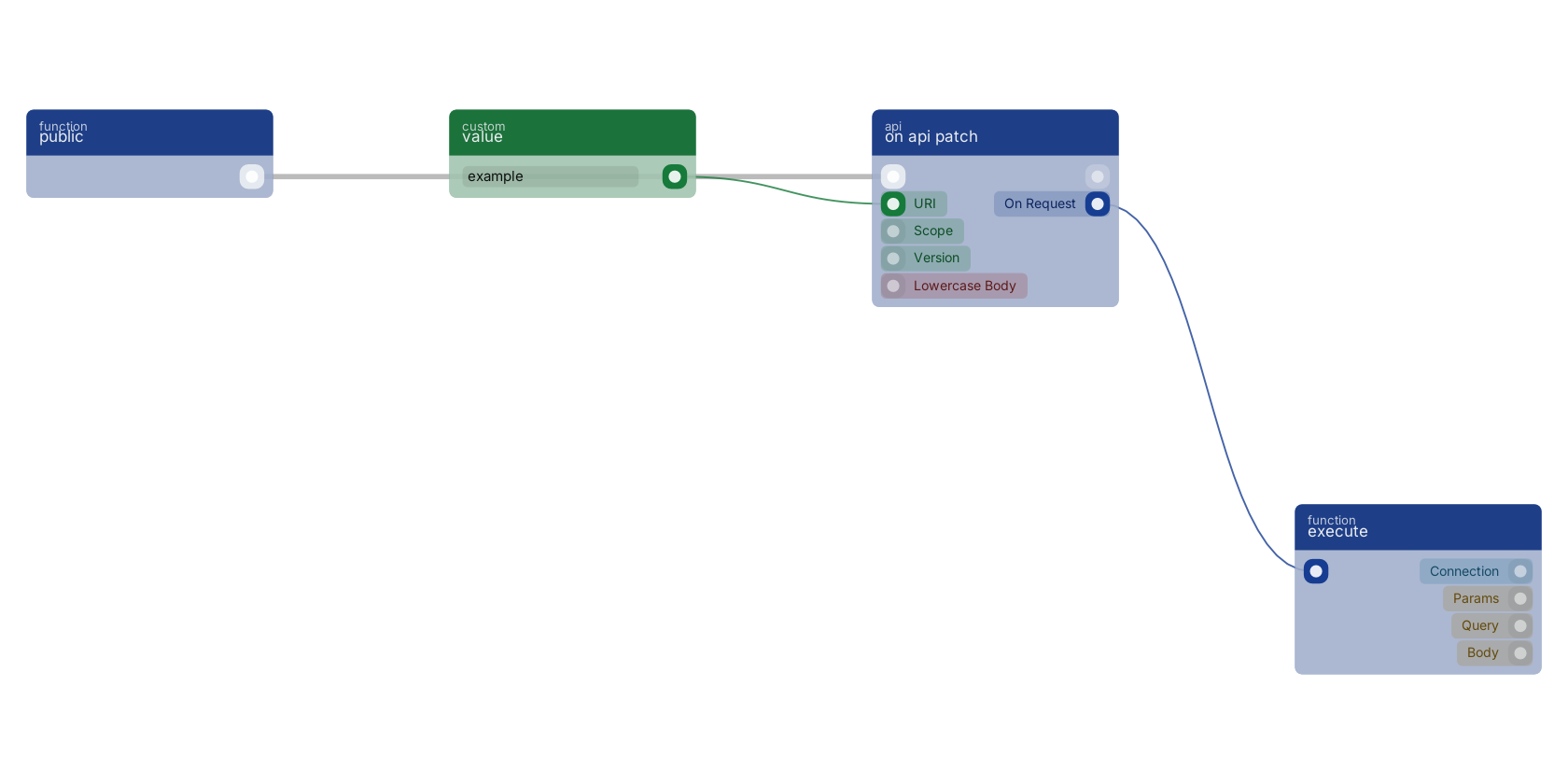

A typical wiring for on api patch: a function trigger starts the flow; value feeds the uri pin; the function out pin wires to an execute block.

Commonly used with

In production blueprints, this block is most often wired together with:

execute: this block feeds into it. Executes the given funcion and waits for it to be executed.

Version history

Introduced in v10.3.2.
