on api post

This block is part of the http connection group and was last modified in core v10.3.2.

on api post execute_function v10.3.2

Exposes POST URI on /api/

In pins 1

lowercase body
condition
If set to true, we'll automatically lowercase all JSON root-body keys. userName will become username.
Default false

Out pins 1

On Request
execute_function

Startup registration block, not a flow executor: at startup (and on every save) it registers POST /api/{version}/{uri} and wires it to the function connected to the On Request outpin, which receives connection, params, query and body pins per request. Version defaults to v1; the lower_keys pin lowercases all root-level JSON body keys (userName -> username). A route without any scope is LOCKED with 403 : not public; use *public to expose it.

register post

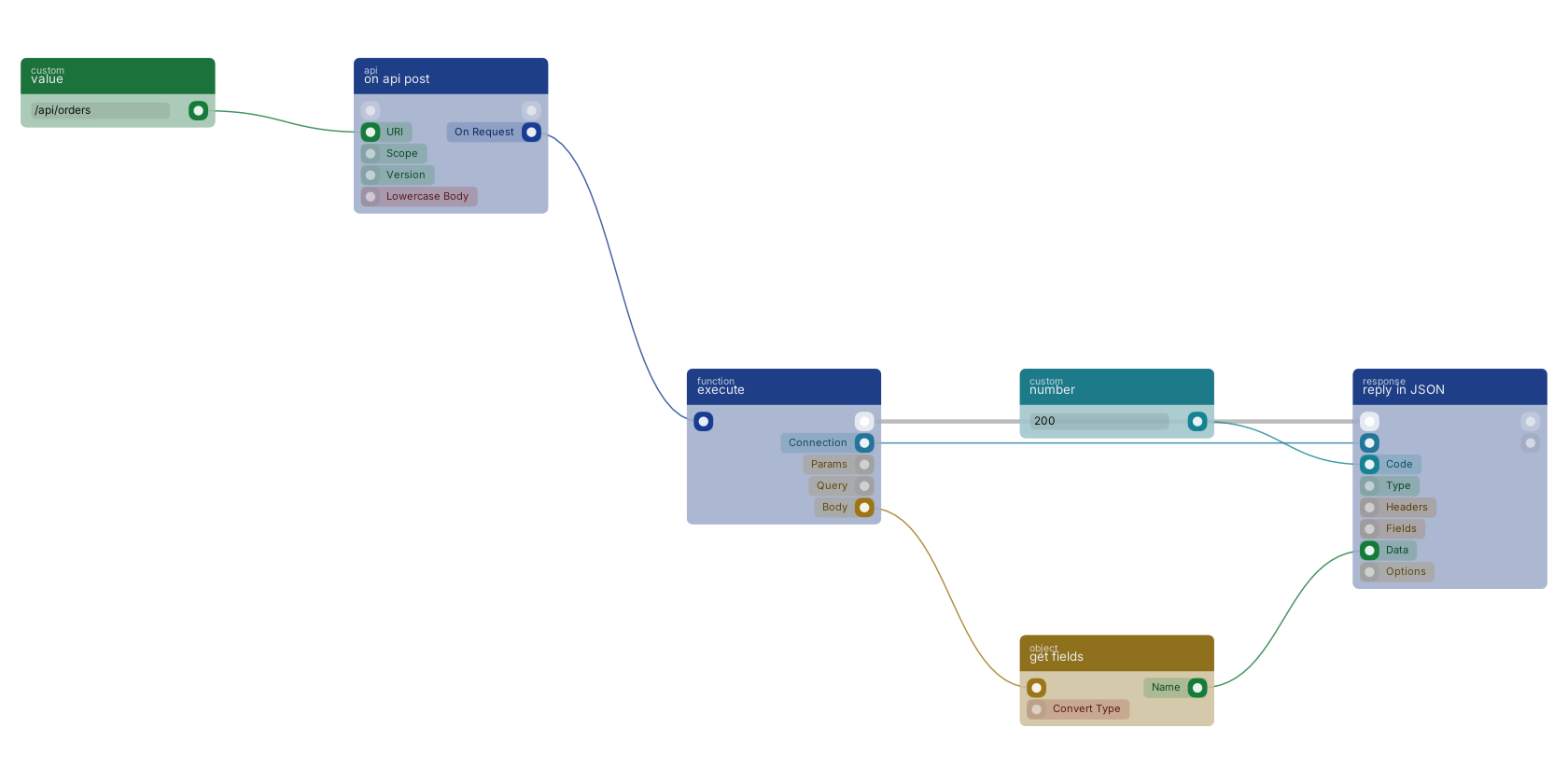

on api post works like the GET variant but also hands the handler a body pin: the execute block carries connection, params, query and body. The body goes through get fields before reply in JSON answers.

Commonly used with

In production blueprints, this block is most often wired together with:

execute: this block feeds into it. Executes the given funcion and waits for it to be executed.

Used in these guides

These documentation pages use or explain this block:

Version history

Introduced in v10.3.2.
