switch

This block is part of the number group and was last modified in core v12.0.4.

switch number v12.0.4

Returns a number based of the given expression.

In pins 2

expression required
value
The expression to evaluate.
default
number
The default statement to be executed.

Out pins 2

output
number
Returns the number matching the expression.
match
condition
Returns true in case a match was found.

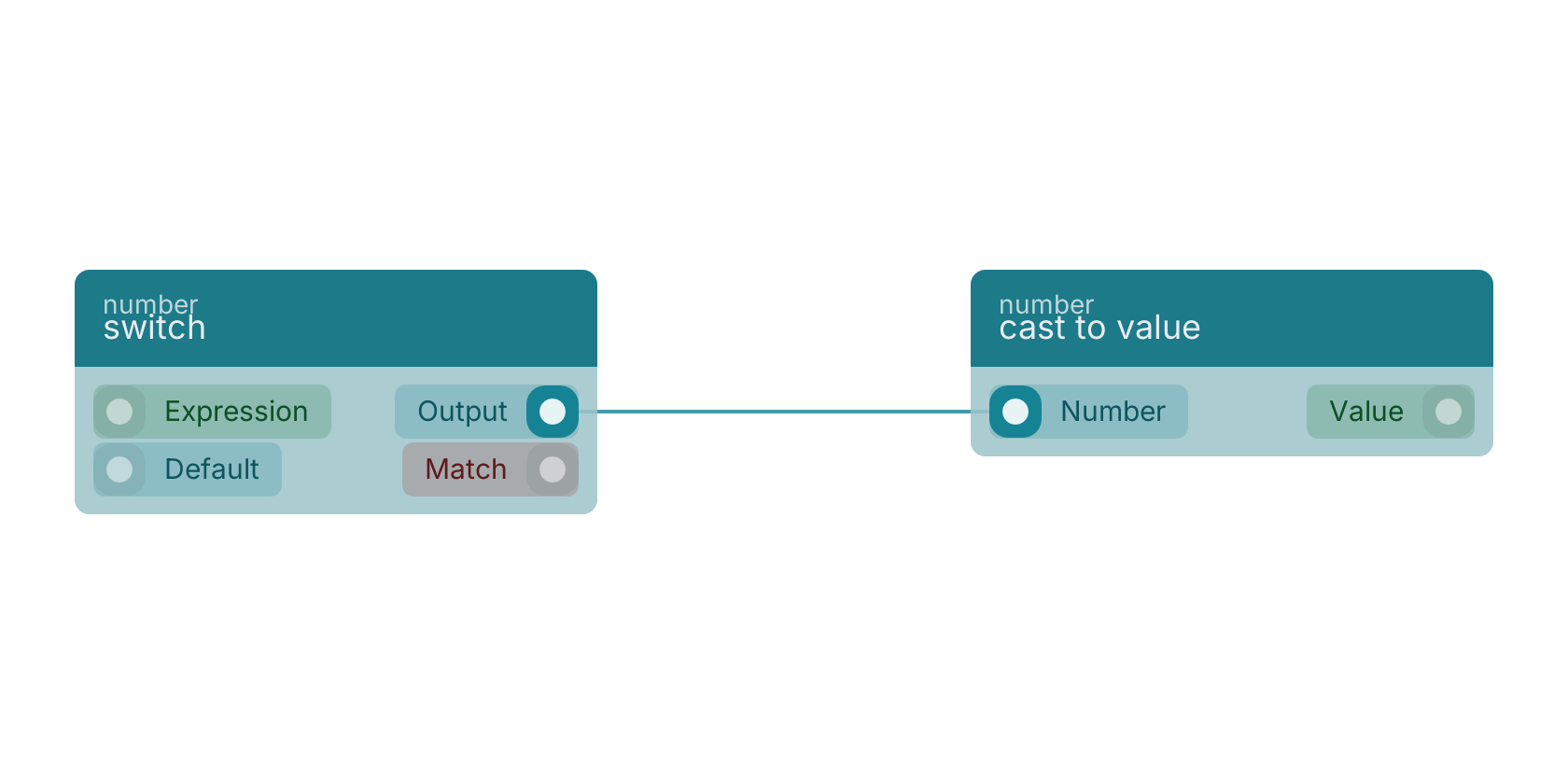

A typical wiring for switch: the number out pin feeds cast to value.

Studio canvas example for the switch block: typical wiring for switch.

Version history

Introduced in v12.0.4.
