facet counts by places

This block is part of the places group and was last modified in core v15.0.0.

facet counts by places object v15.0.0

Counts how many items in a list are near each category : “412 objects near a hospital” in one node. Counts items, not places: an item with three hospitals nearby counts once, which is what a facet over an inventory means. Pass categories with a shared radius, or filters for a named filter per facet.

In pins 5

items array required v15.0.0
The list to process. Either an array of geo points, or an array of objects with point path naming where the coordinate sits.
point path value v15.0.0
Dotted path to the geo point inside each item, e.g. general.location. Leave empty when the items are geo points themselves.
categories array v15.0.0
Category groups to count, each using radius. Either this or filters is required.
radius (m) number v15.0.0
Radius applied to every category. Empty uses 500.
filters object v15.0.0
Named filters, as {facet name: filter}, for facets that need different radii or negation. Combined with categories if both are given.

Out pins 4

counts object v15.0.0
Item count per category group or named filter.
total number v15.0.0
Items that had a usable coordinate and were evaluated. Compare against the input length to spot missing coordinates.
success condition v15.0.0
True when the query ran. An empty result is still a success.
error value v15.0.0
Error code when the query could not run: PLACES_NOT_AVAILABLE, CATEGORIES_REQUIRED.

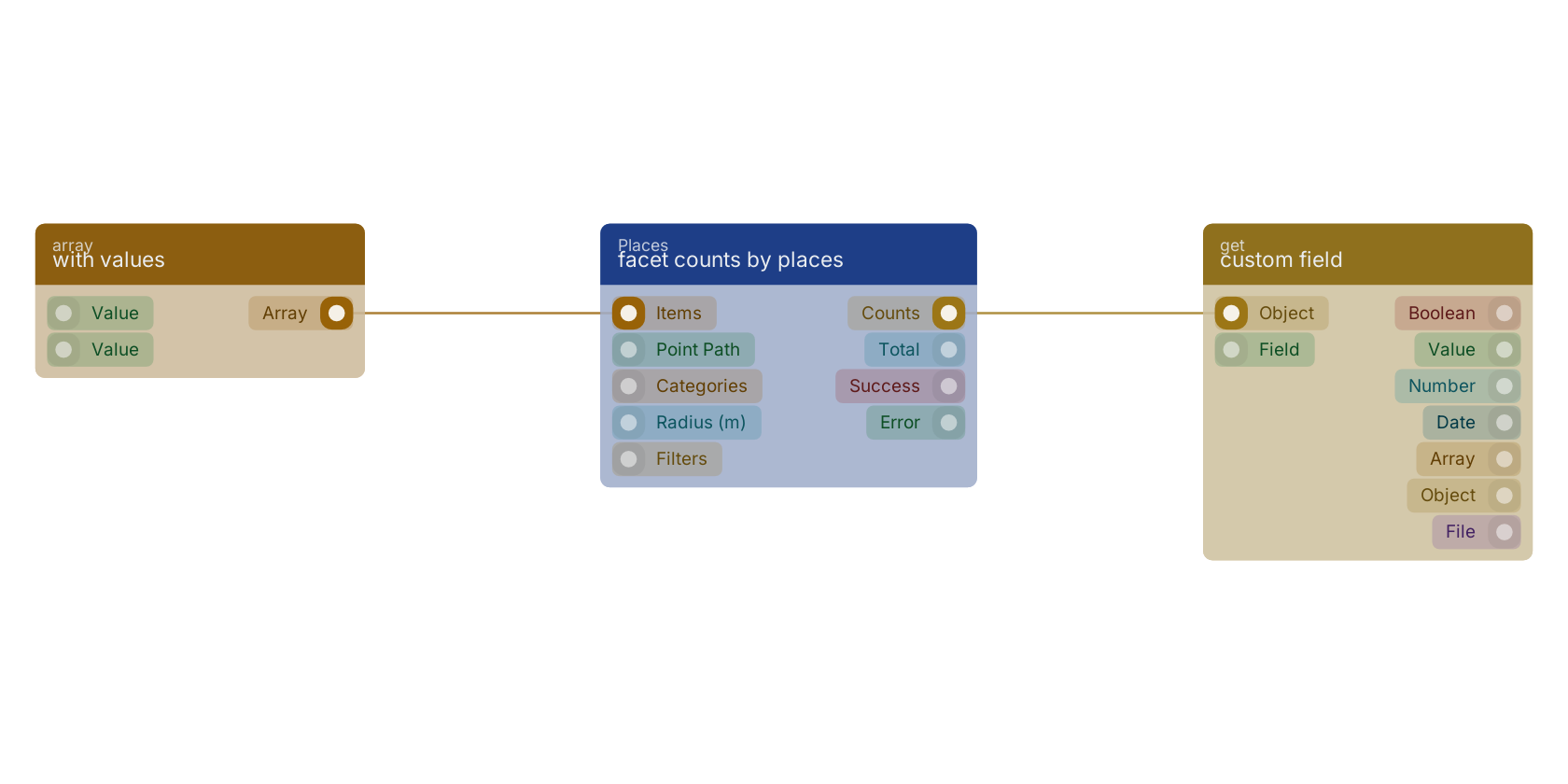

A typical wiring for facet counts by places: with values feeds the items pin; the counts out pin feeds custom field.

Used in these guides

These documentation pages use or explain this block:

Version history

Introduced in v15.0.0.
