function score

This block is part of the query group and was last modified in core v14.0.4.

Connection Type

This block connects from a query type block. Make sure to connect this block to the appropriate left-hand side connection.

function score query v14.0.4

Wraps a query with function_score for custom relevance scoring. Builds script_score, random_score and decay functions from pins. The script_score scores documents by matching their tags field against the provided params : documents without a tags field return a neutral score of 1.

In pins 13

Query required
query
The inner query to apply scoring functions to.
script params
object
Parameters passed to the script_score function (e.g. { interests: { technology: 12 } }).
script weight
number
Weight for the script_score function.
Default 1
random weight
number
Weight for random_score function for discovery sprinkle.
Default 0.15
decay type
value
Decay function type: exp, gauss, or linear.
Default exp
decay field
value
Field to apply decay to.
Default _meta.created
decay origin
value
Origin point for the decay function.
Default now
decay scale
value
Scale for the decay function (e.g. 7d, 30d).
Default 7d
decay value
number
Decay factor (0 to 1).
Default 0.5
decay weight
number
Weight for the decay function.
Default 0.3
score mode
value
How function scores are combined: multiply, sum, avg, first, max, min.
Default sum
boost mode
value
How function score combines with query score: multiply, replace, sum, avg, max, min.
Default replace
max boost
number
Caps the maximum effect of scoring functions.

Out pins 1

query
query

Wraps the inner query pin in a function_score clause that rewrites relevance scores without changing which documents match. A script_score is added only when script_params is a non-empty object (each document's tags field is scored against the given per-tag weights, documents without tags score a neutral 1; weight from script_weight, default 1); a random_score (weight default 0.15, seeded by the current time) and a decay function (default exp on _meta.created, origin "now", scale "7d", decay 0.5, weight 0.3) are ALWAYS added. Function scores combine per score_mode (default "sum") and replace the query score per boost_mode (default "replace"); max_boost is sent only when its pin is non-nil. An unwired inner query becomes {}, which matches everything.

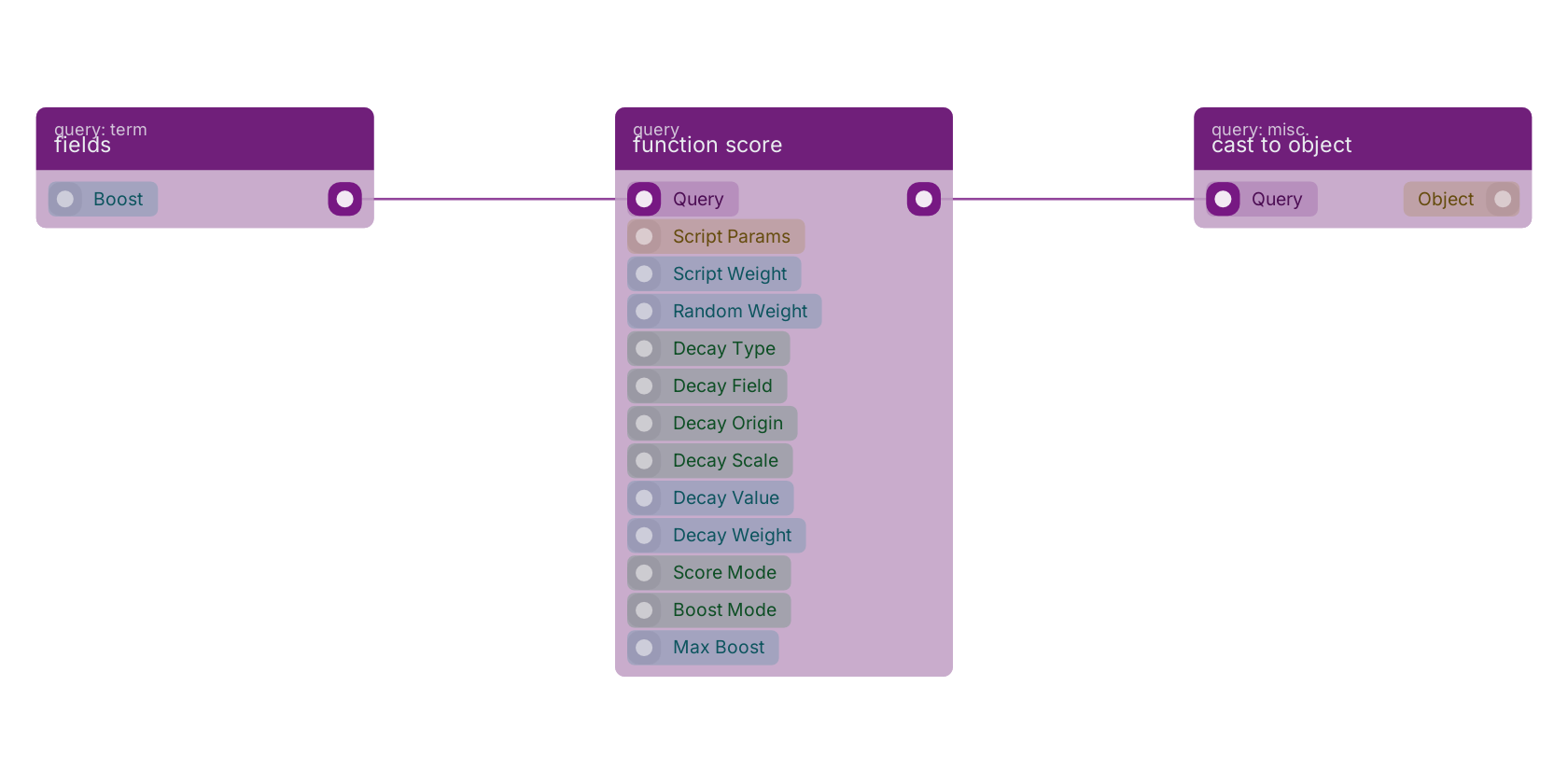

A typical wiring for function score: fields feeds the query pin; the query out pin feeds cast to object.

Version history

Introduced in v14.0.4.
