open connection
This block is part of the sftp group and was last modified in core v15.0.0.
open connection v15.0.0 open sftp connection
In pins 5 + flow
- flow
flow - host required
value - username required
value - password required
value - port required
number - host key
v15.0.0valueThe key the server must present, so a machine-in-the-middle cannot collect the password. Either a SHA256 fingerprint (`ssh-keyscan host | ssh-keygen -lf -`) or a public key line (`ssh-ed25519 AAAA...`). Left empty the server is not authenticated and the fingerprint it presented is logged instead, unless the node runs with [drivers] ssh_strict_host_key.
Out pins 3 + flow
- flow
flow - connection
sftpconnection - success
condition - error
value

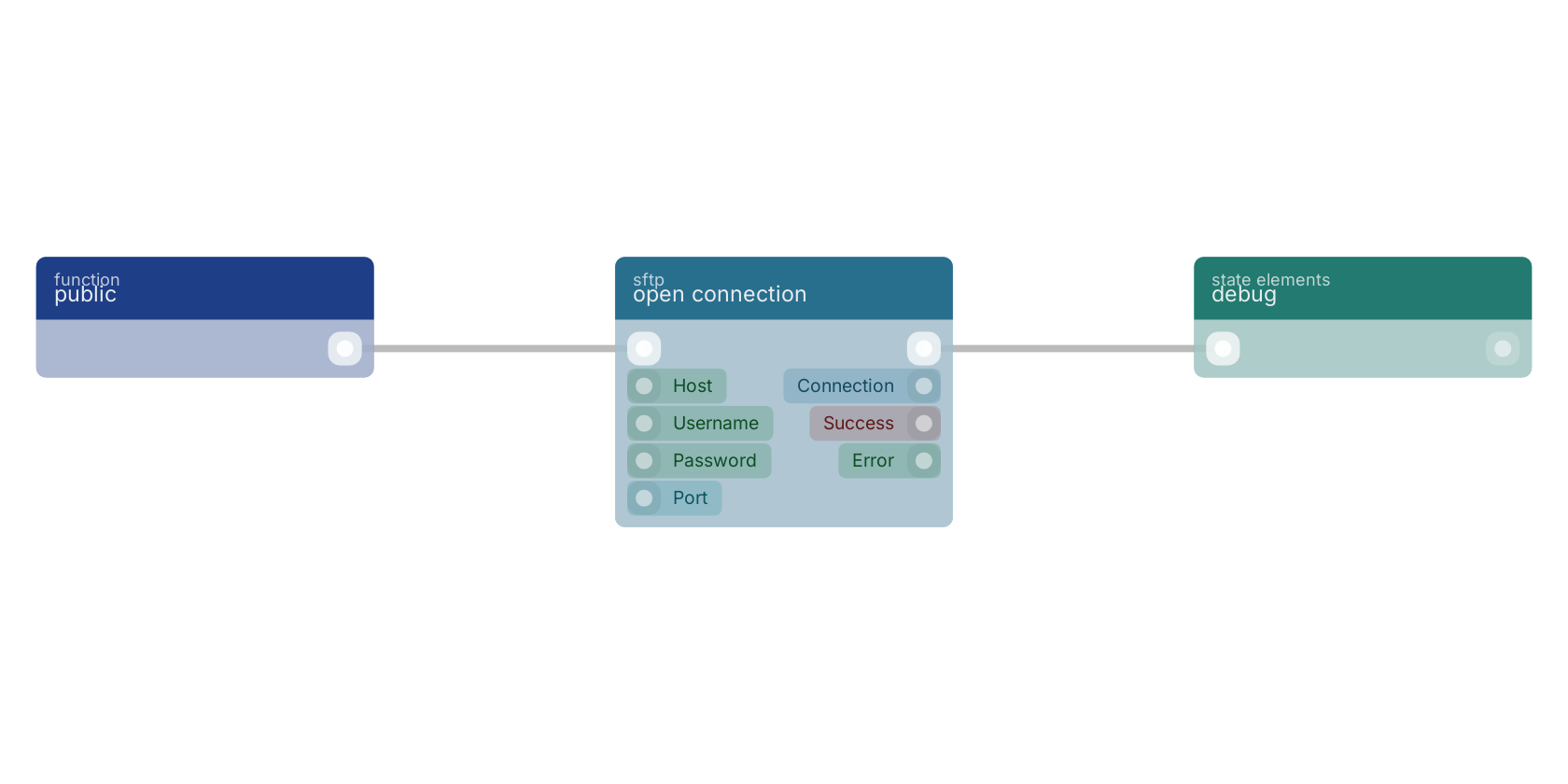

A typical wiring for open connection: a function trigger starts the flow; the flow out pin feeds debug.
Version history
Introduced in v15.0.0.
