multiple

This block is part of the state events group and was last modified in core v14.0.3.

multiple v14.0.3

Combines multiple state events

In pins 3
  • stateevents_0 required
    stateevents
  • stateevents_1 required
    stateevents
  • stateevents_2 required
    stateevents
Out pins 1
  • stateevents
    stateevents

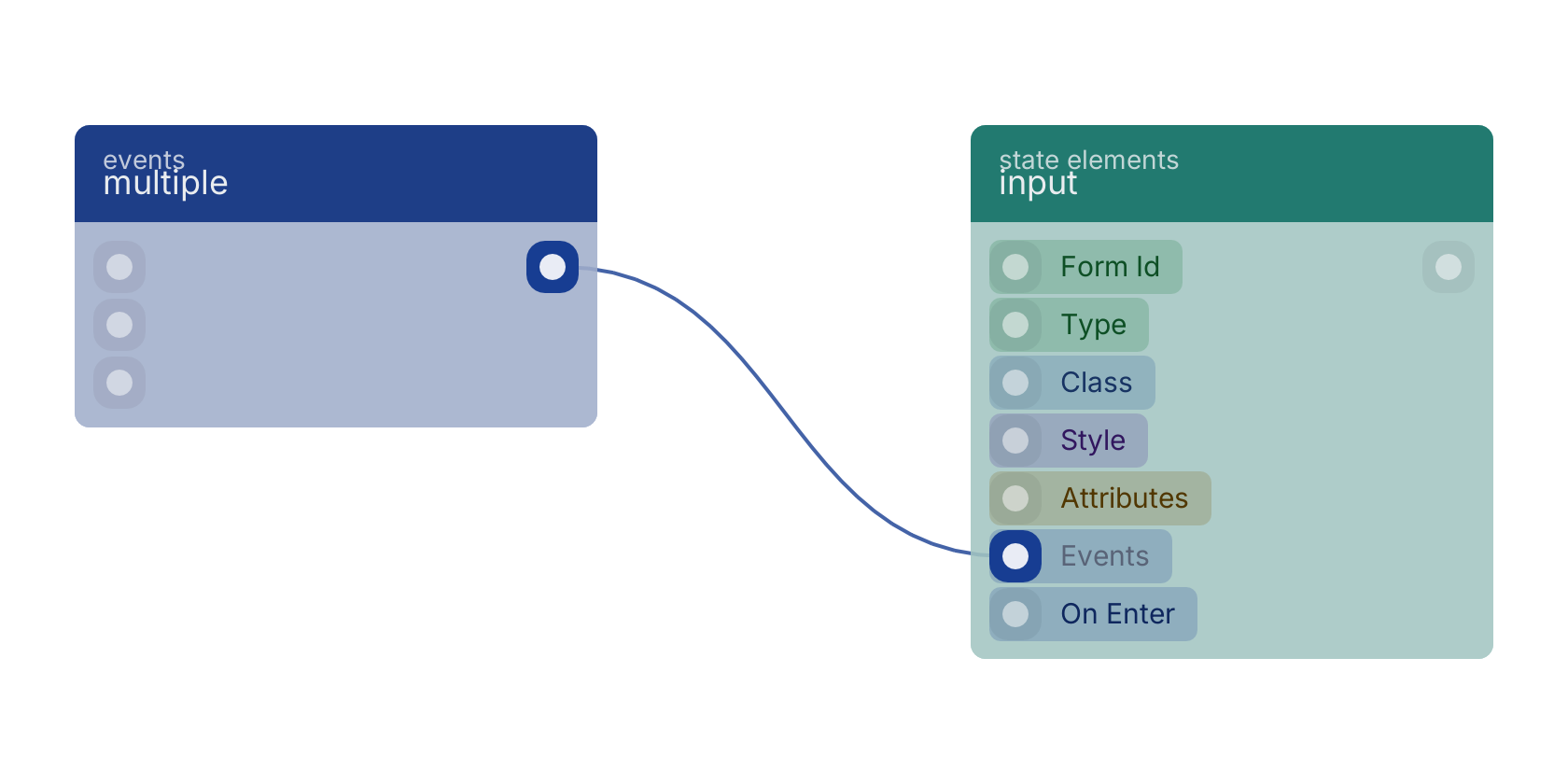

A typical wiring for multiple: the stateevents out pin feeds input.

Studio canvas example for the multiple block: typical wiring for multiple.

Version history

Introduced in v14.0.3.
