Blocks Deprecated

Deprecated: use the web blocks for new pages This block belongs to state pages and UI components. Existing pages keep running, but new pages should use the web blocks. See Web Pages and the migration guide.

push to datatable

This block is part of the state ui group and was last modified in core v14.0.3.

push to datatable flow v14.0.3

Sends a state update to the datatable to refresh their data.

In pins 5 + flow

flow
request id value
If set will only push to the datatable if the latest request id matches the given id. If empty will always push.
state key value required
State key of the datatable to update
state state
The state to push to the table.
position value
The position to push to, possible values: top, bottom
Default top
clear previous condition
Will clear the previous row if set to true
Default false

Out pins 0 + flow

flow

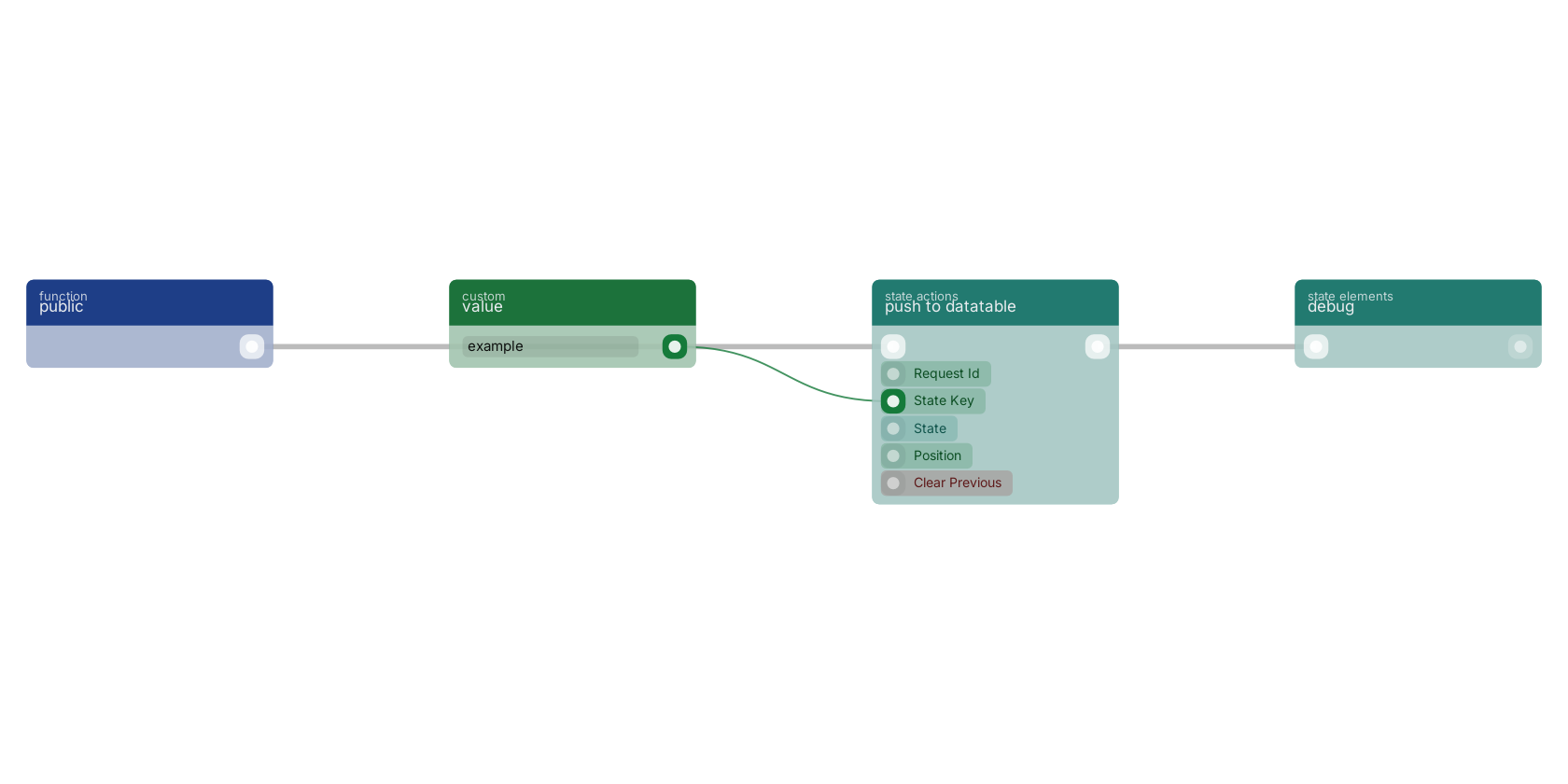

A typical wiring for push to datatable: a function trigger starts the flow; value feeds the key pin; the flow out pin feeds debug.

Used in these guides

These documentation pages use or explain this block:

Migrating from State Pages

Version history

Introduced in v14.0.3.
