search neighbors

This block is part of the storage group and was last modified in core v15.0.0.

Storage Selection Required

This block relies on a storage to perform its storage releated actions. You must manually select the storage you want to use in your flow using the storage selector modal. To access the modal, click the white button on the block.

search neighbors v15.0.0

Given an anchor GUID, returns the N documents directly before and the M directly after it when the storage is sorted by the chosen field. Use this to show context around a specific document (e.g. messages around a chat message) without paginating the whole storage.

In pins 7 + flow
  • flow
  • Anchor GUID value required

    GUID of the document to centre the window on.

  • Sort Field value required

    Field used to order the storage, e.g. _meta.created for a chat message timeline.

  • Sort Order value

    Direction of the list the user sees: desc (newest first, default) or asc.

    Default desc

  • Before number

    How many documents to fetch immediately before the anchor in the sorted list.

    Default 2

  • After number

    How many documents to fetch immediately after the anchor in the sorted list.

    Default 2

  • Query query

    Optional scope filters : e.g. restrict neighbors to the same chat room. Same shape as the search block. • Suggestions: query_bool_must query_bool_must_not query_bool_should

  • Storage storage
Out pins 7 + flow
  • flow
  • Before array

    Documents immediately before the anchor, ordered in the requested display order.

  • Anchor object

    The anchor document itself, or null if not found.

  • After array

    Documents immediately after the anchor, ordered in the requested display order.

  • Combined array

    Before + anchor + after concatenated in display order : ready to render as a single list.

  • Found condition

    True when the anchor document was located.

  • success condition
  • error value

Returns the before (default 2) documents immediately before and the after (default 2) immediately after the anchor GUID when the storage is sorted by sort_field, plus combined = before + anchor + after in display order. sort_order defaults to desc and any other value falls back to desc. found=false with anchor=nil when the GUID does not exist : note success is still true then (error ANCHOR_NOT_FOUND); success=false is reserved for missing storage/guid/sort_field and search failures, with before/after/combined empty.

around
context
surrounding
neighbors
database

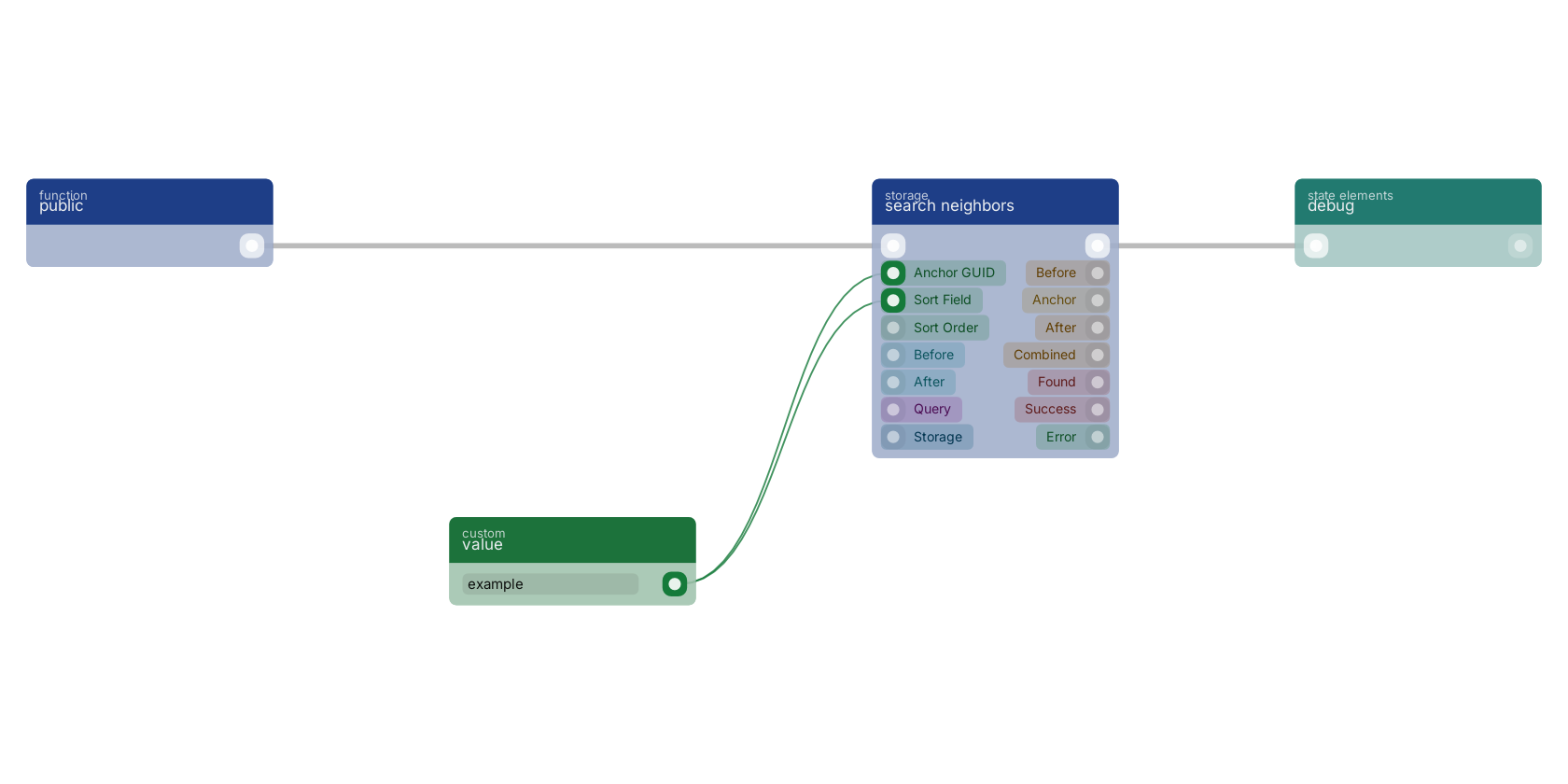

A typical wiring for search neighbors: a function trigger starts the flow; value feeds the guid pin; value feeds the sort_field pin; the flow out pin feeds debug.

Studio canvas example for the search neighbors block: typical wiring for search neighbors.

Version history

Introduced in v15.0.0.
