delay ms
This block is part of the timers group and was last modified in core v15.0.0.
delay ms v15.0.0 generate a delay in milliseconds
In pins 1 + flow
- flow
flow - wait (ms) required
number
Out pins 0 + flow
- flow
flow
Blocks the flow for wait MILLISECONDS, then continues; a zero, negative, or unwired wait returns immediately. The sleep runs to completion even past the inbound request's timeout : the request deadline is detached before sleeping, so later blocks in the flow still run.
timer |
timeout |
time out |
sleep |
wait |
delay |

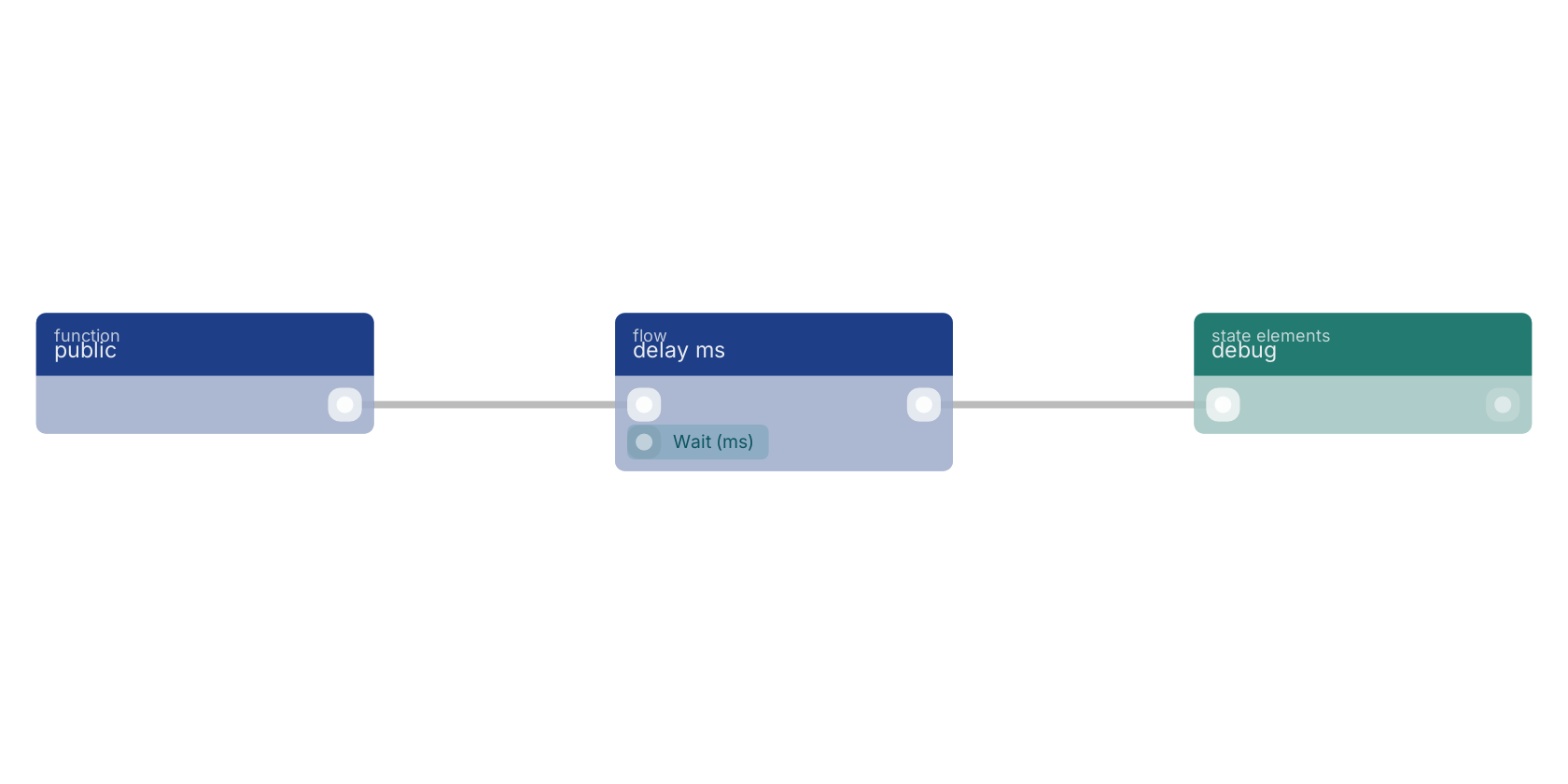

A typical wiring for delay ms: a function trigger starts the flow; the flow out pin feeds debug.
Version history
Introduced in v15.0.0.
