update

This block is part of the twilio group and was last modified in core v11.0.1.

update twilioconnection v11.0.1

Updates the current call status

In pins 4 + flow

flow
flow
connection required
twilioconnection
sid required
value
The SID of the call you would like to update.
status
value
The new call status to be set.
twiml
value
The twiml to be executed on this call.

Out pins 7 + flow

flow
flow
connection
twilioconnection
success
condition
sid
value
SID of the call.
status
value
Status of the message.
call
object
Full blown call object as-is given per twilio API.
error code
number
error
value

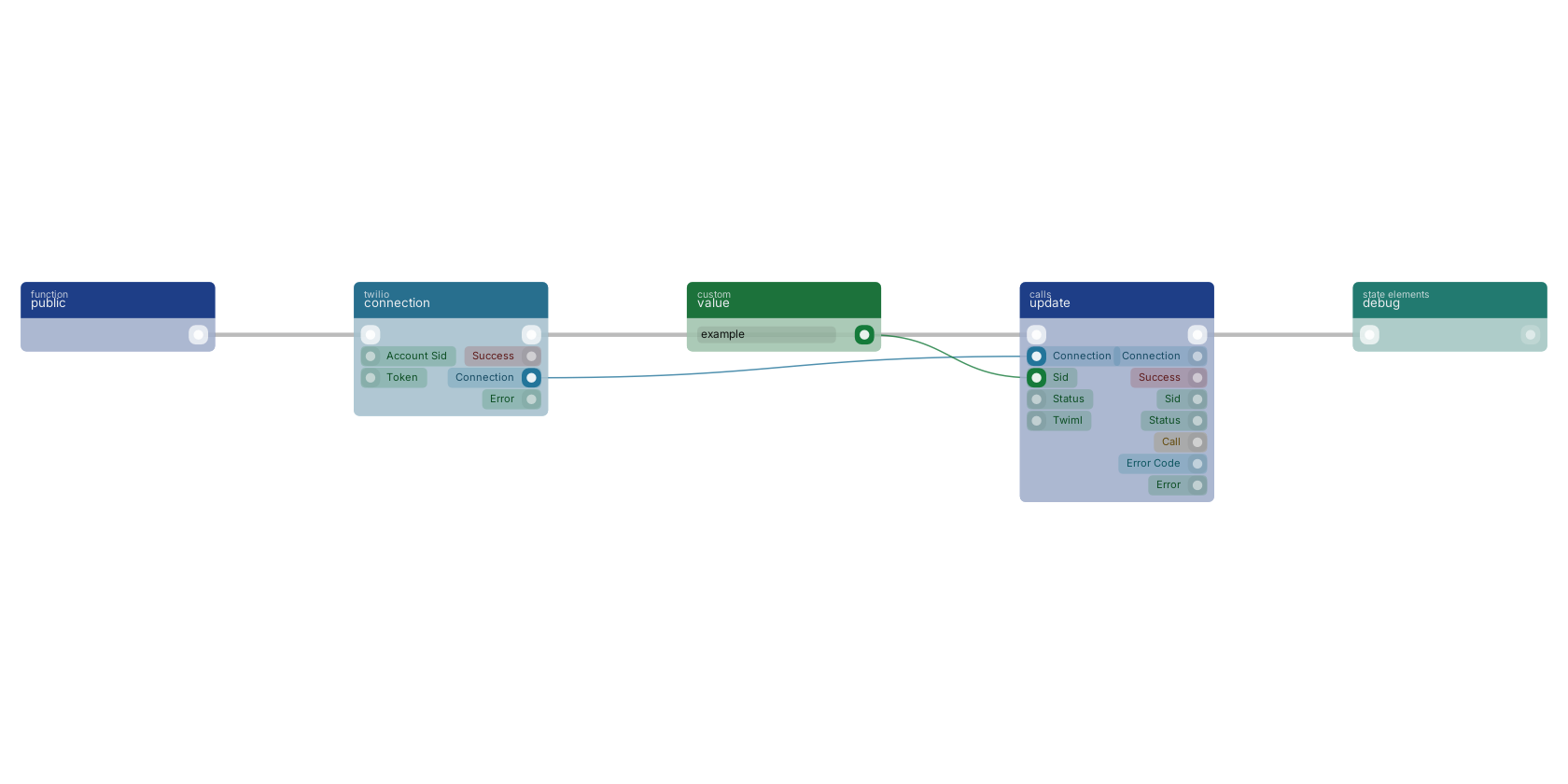

A typical wiring for update: a function trigger starts the flow; connection feeds the connection pin; value feeds the sid pin; the flow out pin feeds debug.

Studio canvas example for the update block: typical wiring for update.

Version history

Introduced in v11.0.1.
