github sso verify code

This block is part of the users group and was last modified in core v14.0.4.

github sso verify code value v14.0.4

Exchange a GitHub authorization code for user identity. Returns email, name, and a service token for "user exists by service".

In pins 4 + flow

flow
flow
Client ID required
value
GitHub OAuth App Client ID
Client Secret required
value
GitHub OAuth App Client Secret
Code required
value
The authorization code returned by GitHub
Redirect URI required
value
Must be the same redirect URI used when generating the auth URL

Out pins 11 + flow

flow
flow
Email
value
The user email address from the SSO provider
Name
value
The user display name
First name
value
The user first name
Last name
value
The user last name
Service Token
value
Service token in format "{provider}-{id}" for use with "user exists by service" block
Provider User ID
value
The unique user ID at the SSO provider
Access Token
value
The OAuth access token for making API calls on behalf of the user
Refresh Token
value
Empty for GitHub; GitHub does not issue refresh tokens in this flow
Raw Token
object
The GitHub user profile JSON returned from the GitHub user API
Success
condition
True if the code was exchanged successfully
Error
value
Error message if success is false

sso

oauth

github

single sign on

verify

exchange

callback

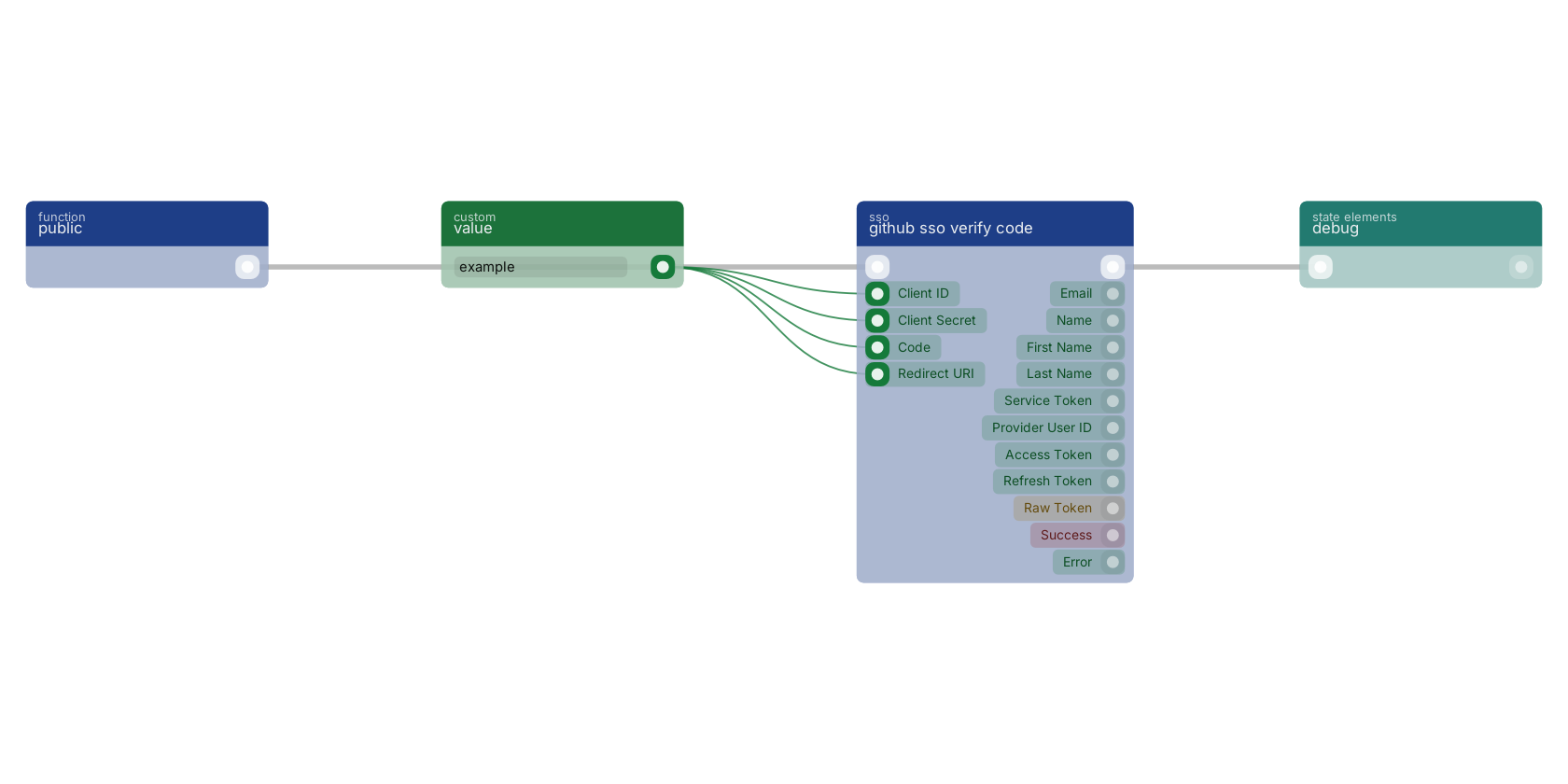

A typical wiring for github sso verify code: a function trigger starts the flow; value feeds the client_id pin; value feeds the client_secret pin; value feeds the code pin; value feeds the redirect_uri pin; the flow out pin feeds debug.

Studio canvas example for the github sso verify code block: typical wiring for github sso verify code.

Introduced in v14.0.4.
