microsoft sso verify code

This block is part of the users group and was last modified in core v14.0.4.

microsoft sso verify code value v14.0.4

Exchange a Microsoft authorization code for user identity. Returns email, name, and a service token for "user exists by service".

In pins 5 + flow

flow
flow
Client ID required
value
Microsoft OAuth Client (Application) ID
Client Secret required
value
Microsoft OAuth Client Secret
Tenant ID
value
Azure AD tenant ID. Must match the one used in the auth URL.
Code required
value
The authorization code returned by Microsoft
Redirect URI required
value
Must be the same redirect URI used when generating the auth URL

Out pins 11 + flow

flow
flow
Email
value
The user email address from the SSO provider
Name
value
The user display name
First name
value
The user first name
Last name
value
The user last name
Service Token
value
Service token in format "{provider}-{id}" for use with "user exists by service" block
Provider User ID
value
The unique user ID at the SSO provider
Access Token
value
The OAuth access token for making API calls on behalf of the user
Refresh Token
value
The OAuth refresh token for obtaining new access tokens
Raw Token
object
The full decoded ID token claims from the provider
Success
condition
True if the code was exchanged successfully
Error
value
Error message if success is false

sso

oauth

microsoft

azure

entra

single sign on

openid

verify

exchange

callback

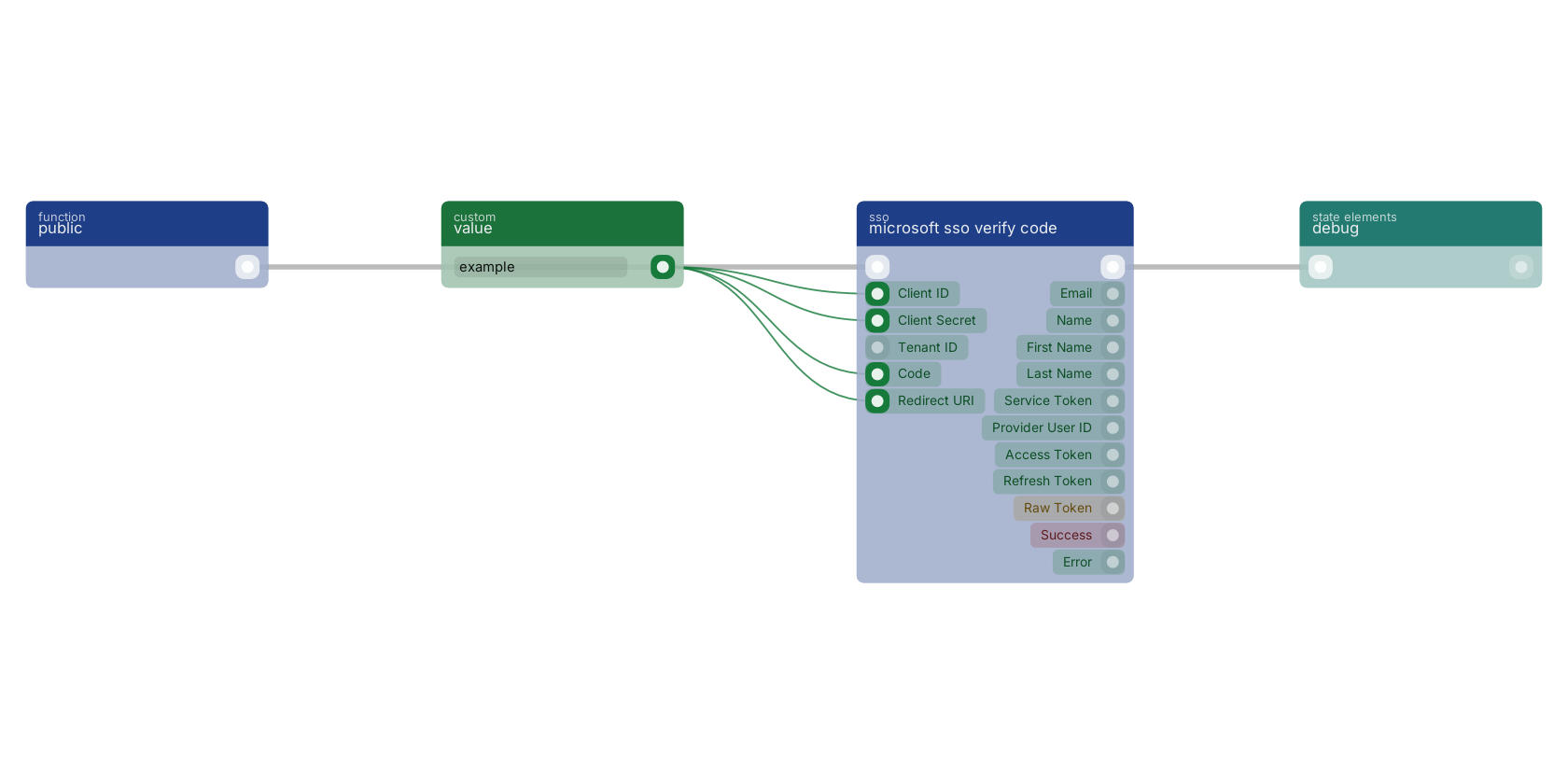

A typical wiring for microsoft sso verify code: a function trigger starts the flow; value feeds the client_id pin; value feeds the client_secret pin; value feeds the code pin; value feeds the redirect_uri pin; the flow out pin feeds debug.

Studio canvas example for the microsoft sso verify code block: typical wiring for microsoft sso verify code.

Introduced in v14.0.4.
