decode
This block is part of the value group and was last modified in core v9.3.13.
decode v9.3.13 Decode a Base64 value into a raw value.
In pins 1
- Encoded required
valueBase64 value to decode into a raw value.
Out pins 1
- Raw
valueThe raw value decoded from the Base64 input.
Decodes STANDARD Base64, falling back to the URL-safe alphabet when that fails. When both decodes fail, or the encoded pin is not wired, NO output is written at all - raw stays unset rather than emitting an error or empty string.

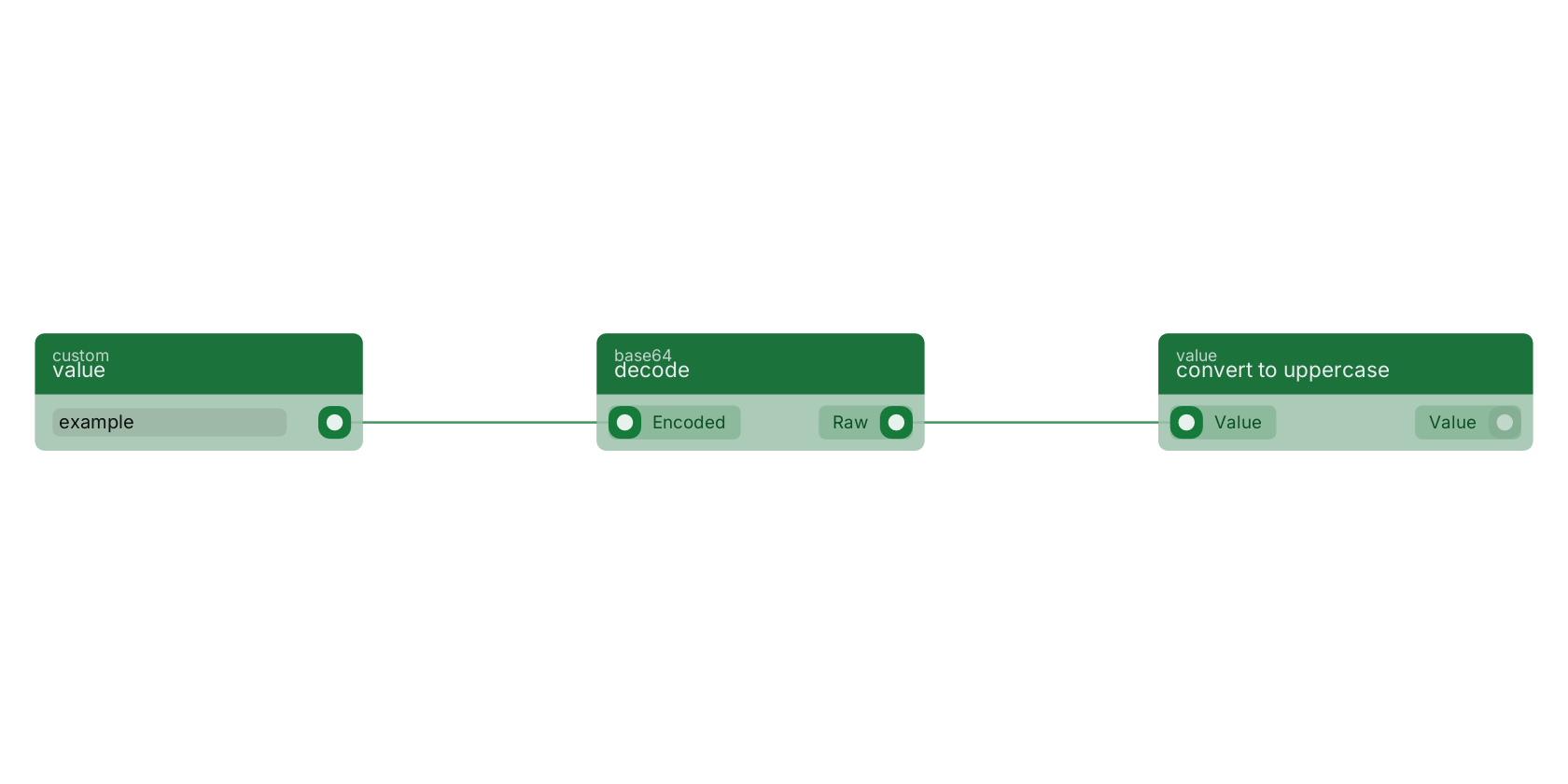

A typical wiring for decode: value feeds the encoded pin; the raw out pin feeds convert to uppercase.
Version history
Introduced in v9.3.13.
