sha512
This block is part of the value group and was last modified in core v15.0.0.
sha512 v15.0.0 In pins 1
- value required
value
Out pins 1
- hashed
value
Outputs the SHA-512 digest, as lowercase hex, of ALL in-pin values concatenated in pin order (each coerced to string; unwired pins contribute ""). Extra value pins extend the hashed input, they are not hashed separately. NOT an HMAC and not salted.

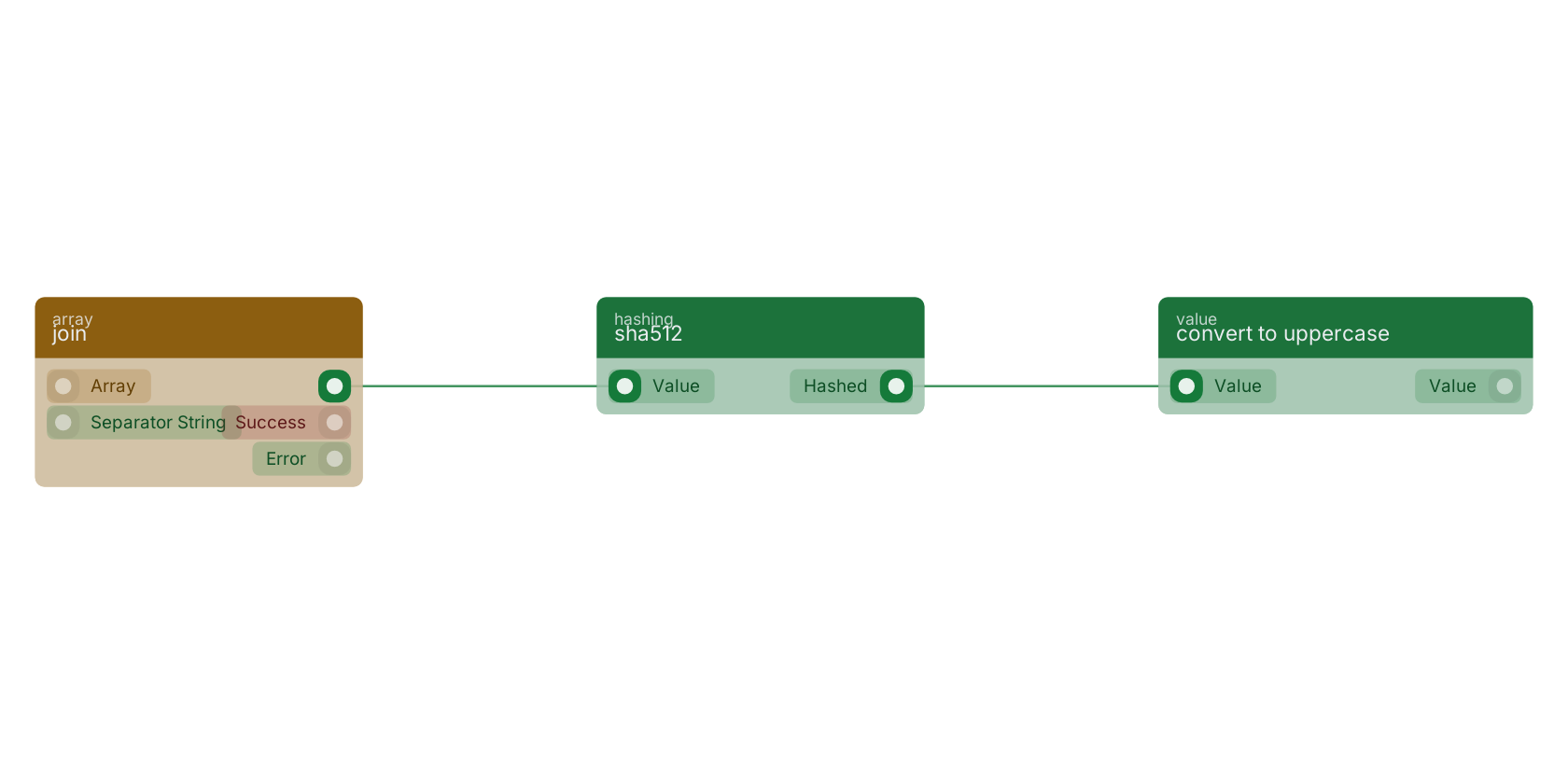

A typical wiring for sha512: join feeds the value pin; the hashed out pin feeds convert to uppercase.
Commonly used with
In production blueprints, this block is most often wired together with:
- join: feeds into this block. Creates and returns a new string by concatenating all of the elements in this array, separated by void if none provided.
- return: this block feeds into it. Returns the added custom pins as data-pins on the function execute.
Version history
Introduced in v15.0.0.
