create network

This block is part of the virtualisation group and was last modified in core v15.0.0.

create network lxdconnection v13.0.9 Updated v15.0.0

Creates a network on the LXD server.

In pins 7 + flow

flow
flow
Connection required
lxdconnection
The LXD connection
Name required
value
The name of the network to create.
Description required
value
The description of the network to create.
Type required
value
The type of the network to create.
Config required
array
Array of all the configs to set, has to be array with objects that all have fields key and value.
Auto assign IPv4
condition
If this boolean is true the block will automaticly assign a IPv4 to the network.
Auto assign IPv4 prefix
value
The prefix to use when auto assigning a IPv4.
Default 24

Out pins 3 + flow

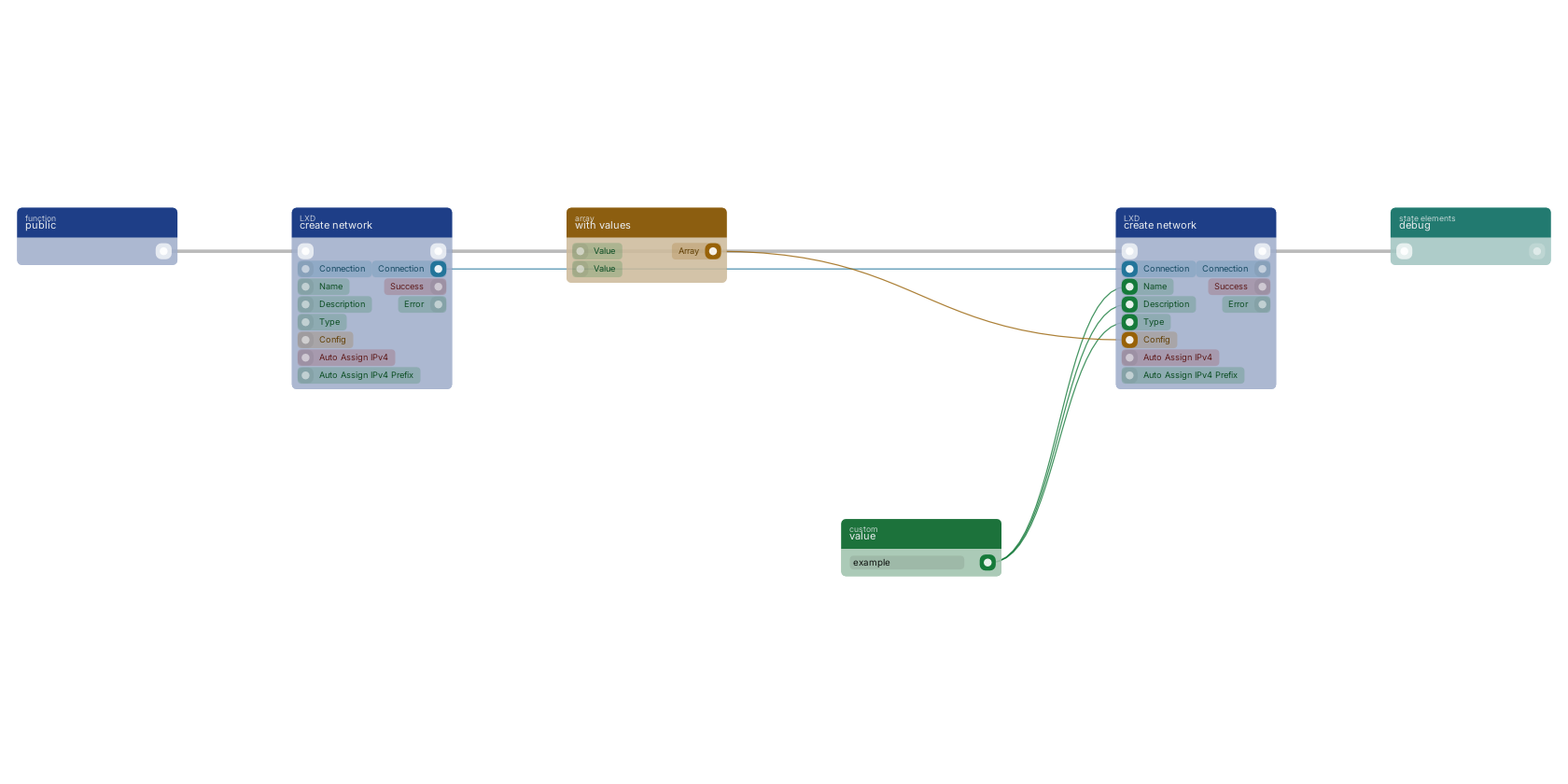

A typical wiring for create network: a function trigger starts the flow; create network feeds the connection pin; value feeds the name pin; value feeds the description pin; value feeds the type pin; with values feeds the config pin; the flow out pin feeds debug.

Studio canvas example for the create network block: typical wiring for create network.

Introduced in v13.0.9.

Last modified in v15.0.0.
