if

This block is part of the UI Component group and was last modified in core v10.4.28.

if v10.4.28

Conditional use of events.

In pins 3
  • true required
    clickevent
  • false required
    clickevent
  • boolean required
    condition
Out pins 1
  • event
    clickevent

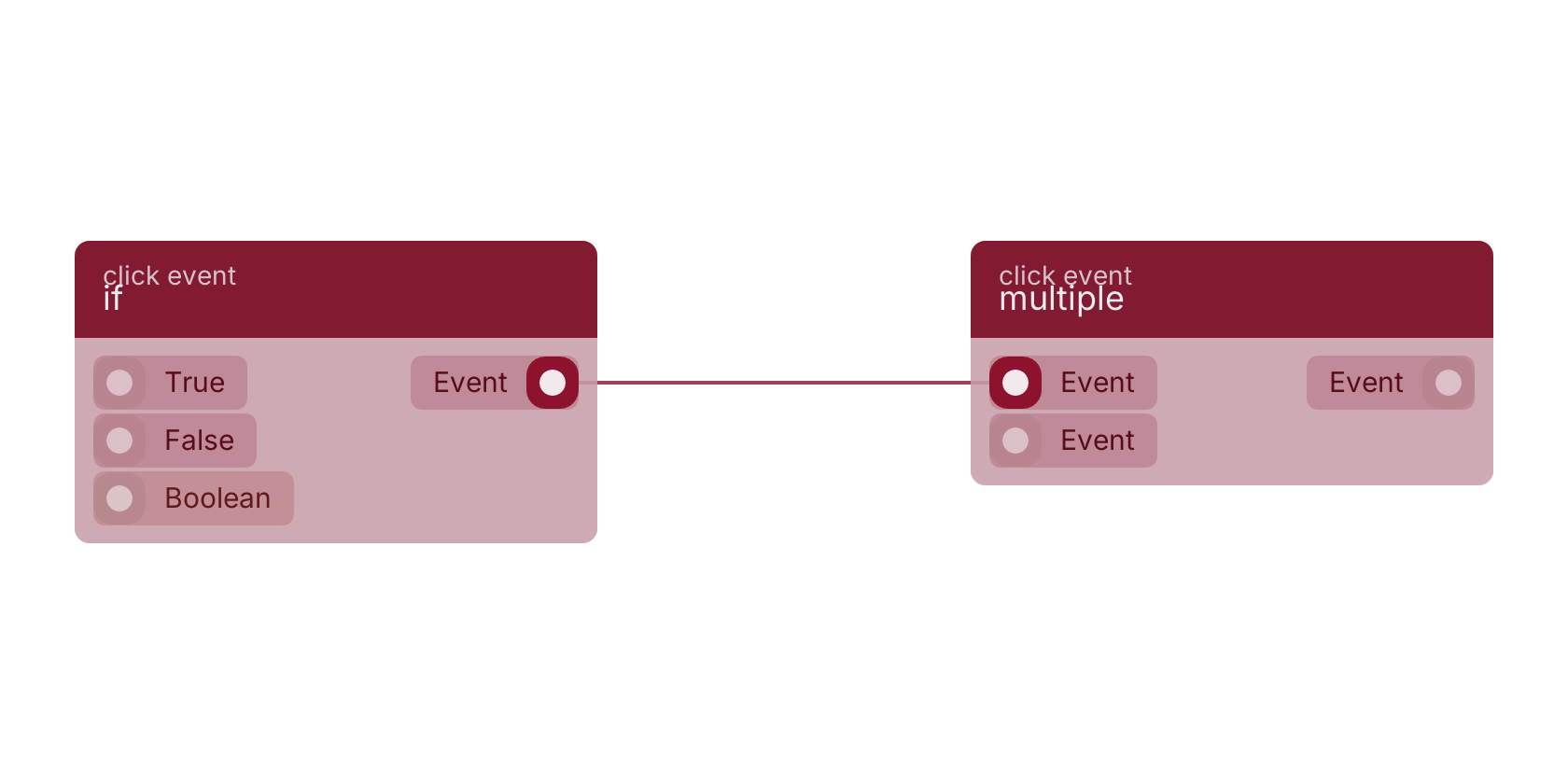

A typical wiring for if: the clickevent out pin feeds multiple.

Studio canvas example for the if block: typical wiring for if.

Version history

Introduced in v10.4.28.
