text to speech

This block is part of the ui group and was last modified in core v12.0.5.

text to speech flow v12.0.5

Speaks the given text in a browser-controlled voice.

In pins 3 + flow

flow
flow
text required
value
The text to speak, use commas to improve the way the text is spoken
language
value
A value representing a BCP 47 language tag (en-EN, nl-NL, etc).
Default browser language
rate
number
A float representing the rate value. It can range between 0.1 (lowest) and 10 (highest), with 1 being the default pitch for the current platform or voice, which should correspond to a normal speaking rate. Other values act as a percentage relative to this, so for example 2 is twice as fast, 0.5 is half as fast, etc.
Default 1

Out pins 0 + flow

speak

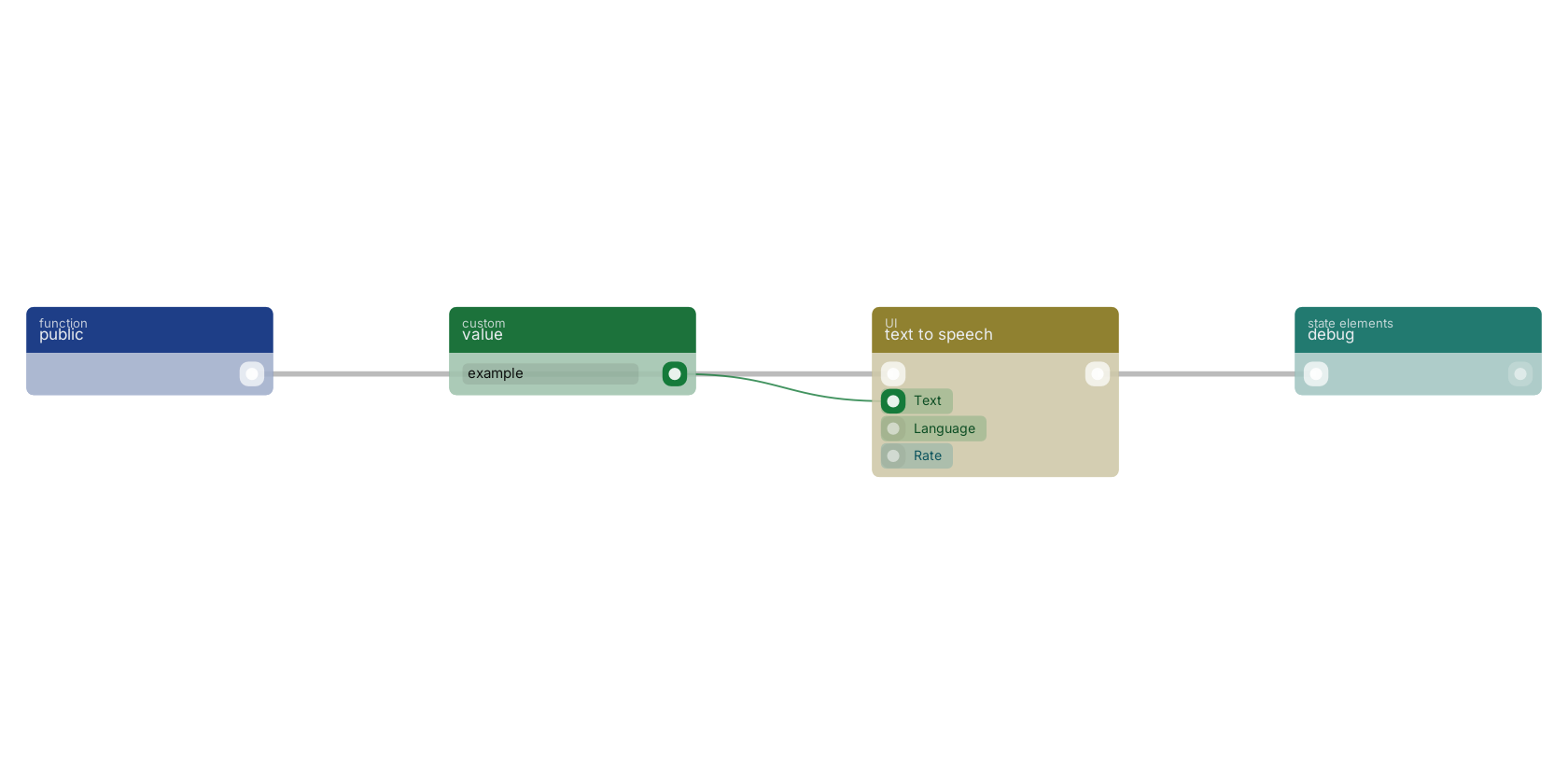

A typical wiring for text to speech: a function trigger starts the flow; value feeds the text pin; the flow out pin feeds debug.

Studio canvas example for the text to speech block: typical wiring for text to speech.

Introduced in v12.0.5.
