tool switch

This block is part of the anthropic group and was last modified in core v15.0.0.

tool switch anthropictool v15.0.0

Pick a tool by matching an expression against case values (with an optional default). Wire the result into a message block's tools pin.

In pins 2

expression required
value
The expression to match against the case values.
default
anthropictool
Tool used when no case matches.

Out pins 2

tool
anthropictool
The selected tool; wire into a message block's tools pin.
matched
condition
True when a non-default case matched.

tool case

switch tool

tool selector

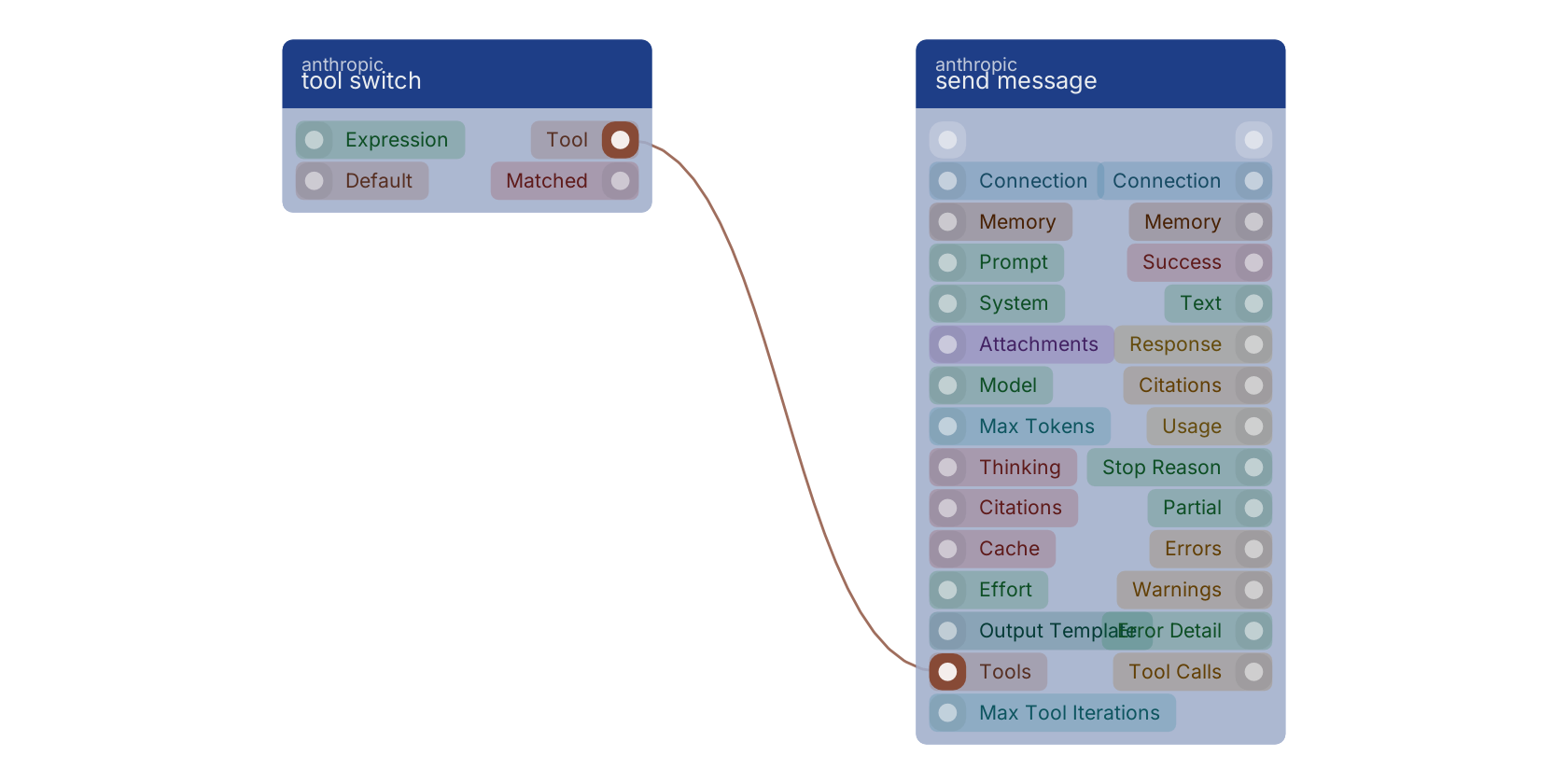

A typical wiring for tool switch: the tool out pin feeds send message.

Studio canvas example for the tool switch block: typical wiring for tool switch.

Version history

Introduced in v15.0.0.
