create payment info

This block is part of the banking group and was last modified in core v10.4.28.

create payment info payments v10.4.28

In pins 9

IBAN required
value
BIC required
value
name required
value
id required
value
instrumentation required
value
sequence required
value
batch required
condition
collectdate required
date
transactions required
transaction

Out pins 1

payments
payments

Builds one SEPA direct debit payment object from the wired fields and outputs it as a one-element payments array, ready for payments_multiple or the SEPA document block. Empty iban/bic/name/id fall back to "", instrumentation to "CORE", sequence to "FRST", transactions to an empty array; an unwired collectdate becomes the current unix timestamp. batch is stored as a boolean.

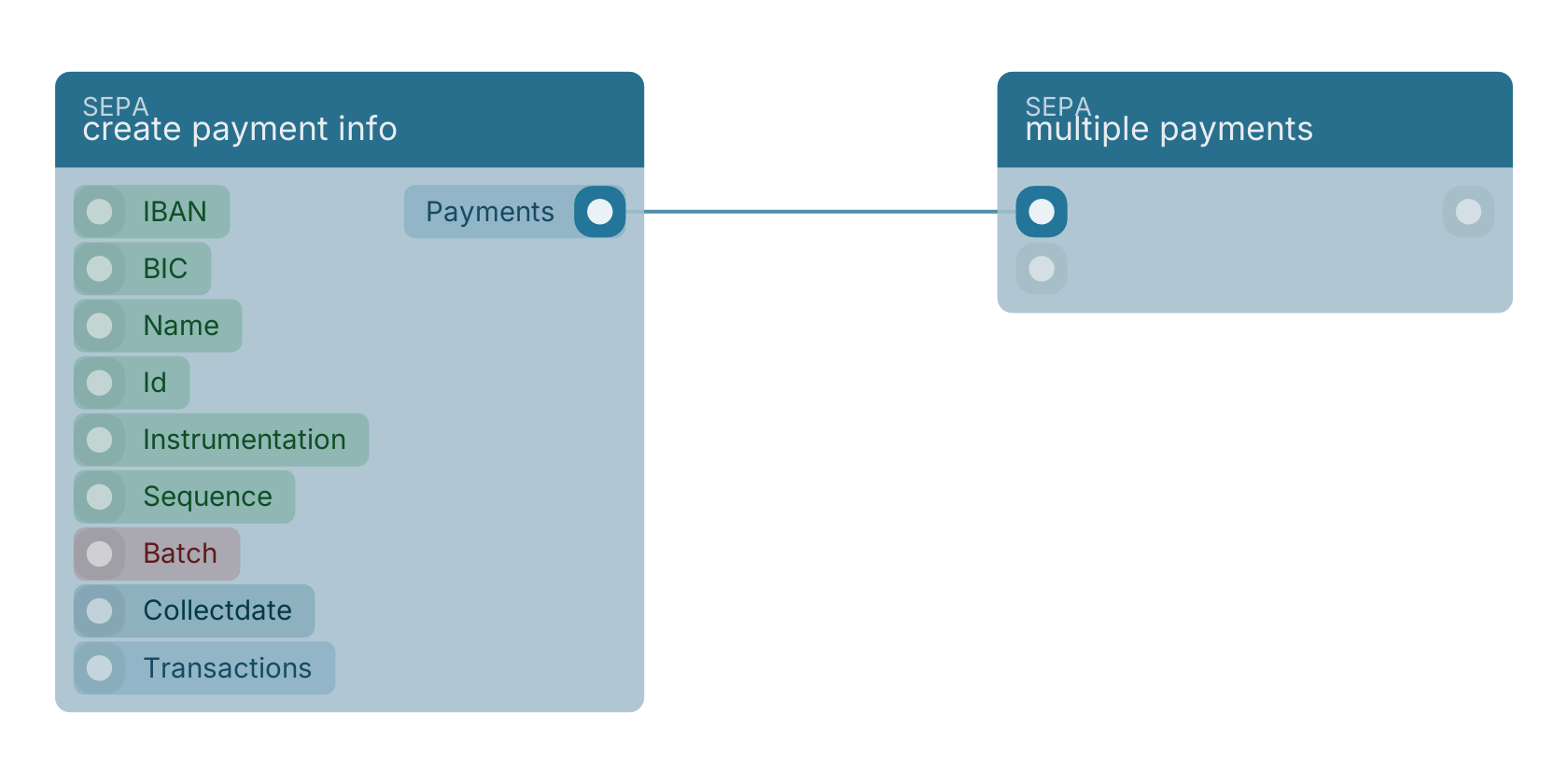

A typical wiring for create payment info: the payments out pin feeds multiple payments.

Version history

Introduced in v10.4.28.
