validate url
This block is part of the condition group and was last modified in core v14.0.4.
validate url v14.0.4 Validates URL format - checks if the given string is a valid URL
In pins 2
- URL required
valueThe URL to be checked.
- require protocol
conditionRequire the URL to start with a protocol (http:// or https://)
Out pins 1
- valid
conditionThe condition that says whether the URL is valid or not.
valid=true when the input parses as an absolute http/https URL with a non-empty host. With require_protocol=true (default) the scheme must be present and be http or https - other schemes are false. With require_protocol=false a scheme-less value is retried as https://value. Empty input is false. Syntax only; no reachability check.
url |
link |
website |

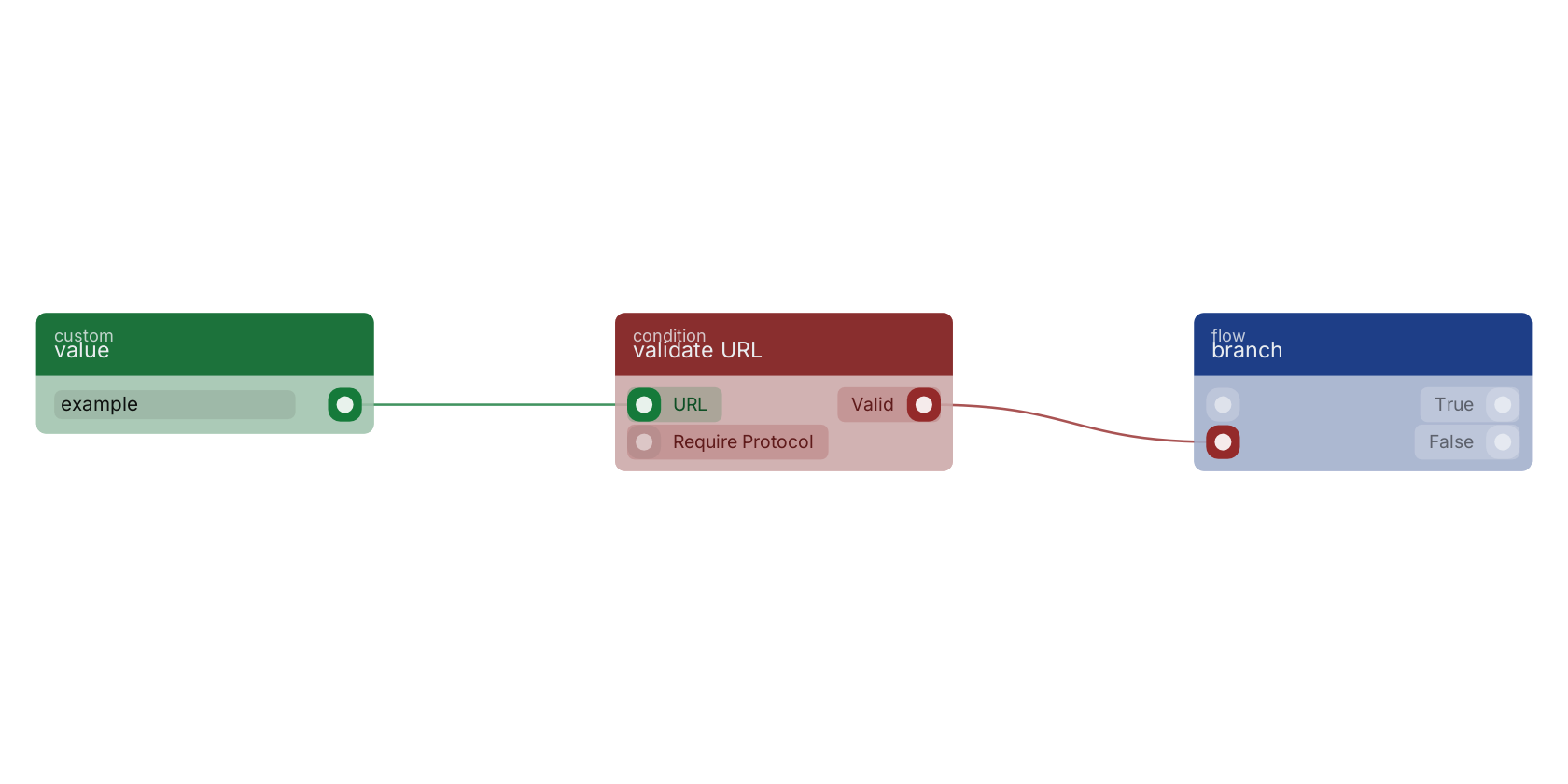

A typical wiring for validate URL: value feeds the url pin; the valid out pin feeds branch.
Version history
Introduced in v14.0.4.
