day of year

This block is part of the date group and was last modified in core v10.4.28.

day of year date v10.4.28

Set day of year of given date.

In pins 2

date required
date
The date for which to set the day of the year.
day required
number
The numeric representation of the day of the year (1 to 366) to set for the date.

Out pins 1

date
date
The date with the day of the year set according to the specified value.

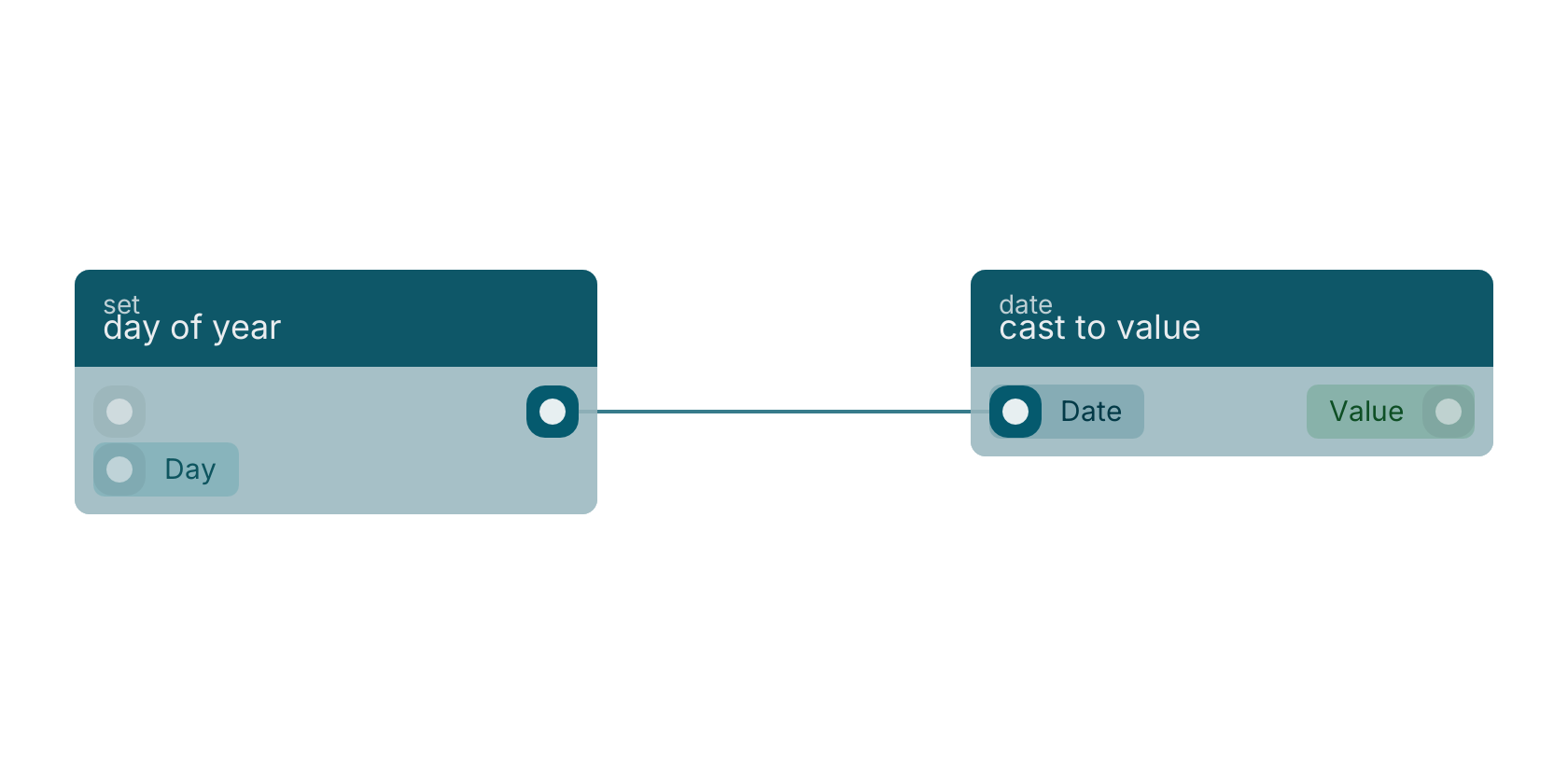

A typical wiring for day of year: the date out pin feeds cast to value.

Studio canvas example for the day of year block: typical wiring for day of year.

Version history

Introduced in v10.4.28.
