switch

This block is part of the date group and was last modified in core v12.0.4.

switch v12.0.4

Returns a date based of the given expression.

In pins 2
  • expression value required

    The expression to evaluate.

  • default date

    The default statement to be executed.

Out pins 2
  • output date

    Returns the date matching the expression.

  • match condition

    Returns true in case a match was found.

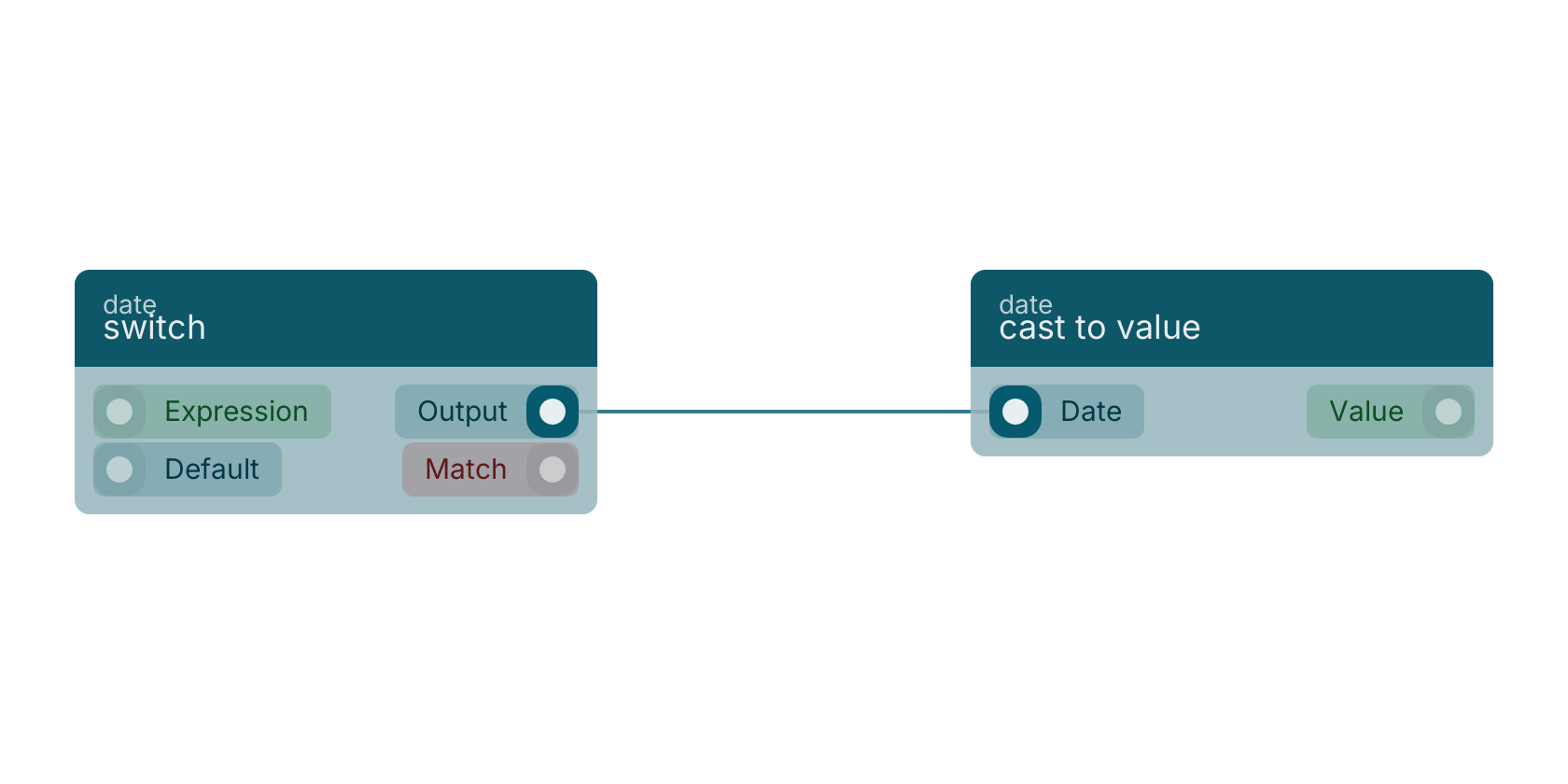

A typical wiring for switch: the date out pin feeds cast to value.

Studio canvas example for the switch block: typical wiring for switch.

Version history

Introduced in v12.0.4.
