ekt parser
This block is part of the edifact group and was last modified in core v10.4.28.
ekt parser v10.4.28 Parses an edifact ekt file and returns it as an object with headers and lines
In pins 1 + flow
- flow
flow - file required
file
Out pins 3 + flow
- flow
flow - output
object - success
condition - error
value
Reads the first non-media file from the file pin (audio/image/video extensions are skipped; inline content on the file object is used without disk access), parses it as EDIFACT, and outputs the {headers, lines} structure with success=true. No usable file : empty pin, only media files, or an unreadable path : fails with success=false and error "No file selected".

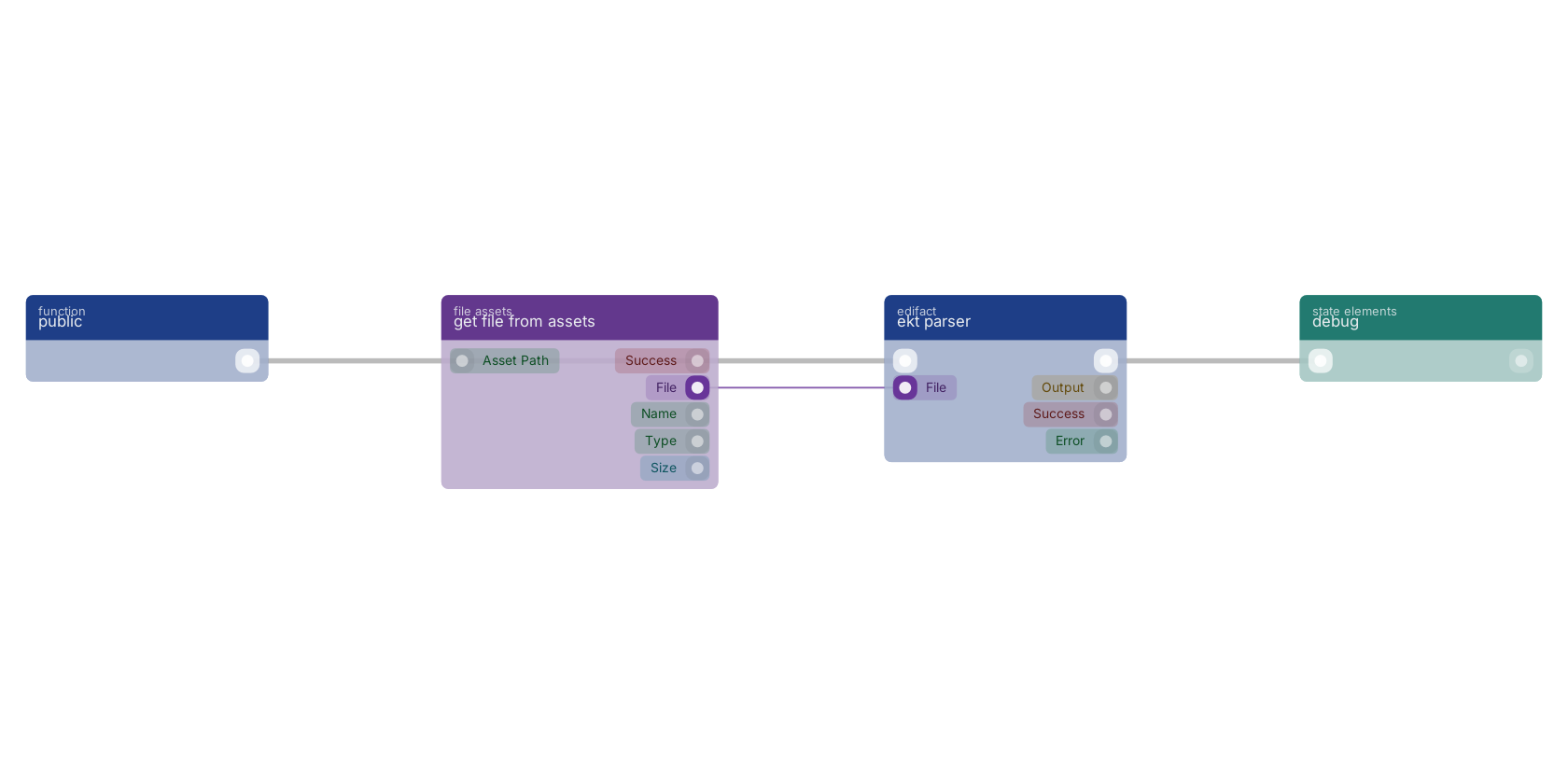

A typical wiring for ekt parser: a function trigger starts the flow; get file from assets feeds the file pin; the flow out pin feeds debug.
Version history
Introduced in v10.4.28.
