if

This block is part of the fields group and was last modified in core v10.3.11.

if v10.3.11

use different fields using a condition.

In pins 3
  • true fielddefinitions required
  • false fielddefinitions required
  • boolean condition required
Out pins 1
  • fielddefinitions fielddefinitions

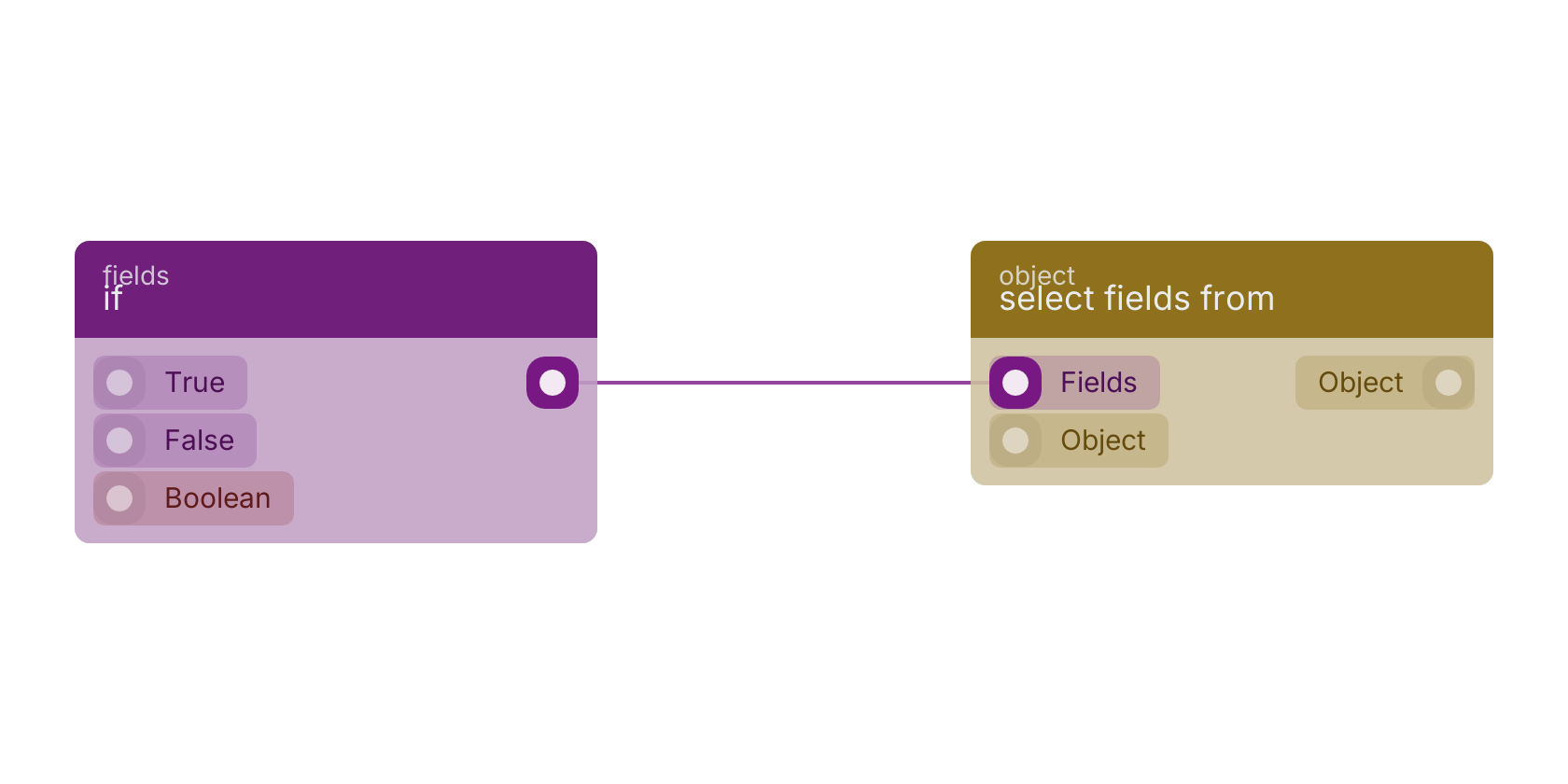

A typical wiring for if: the fielddefinitions out pin feeds select fields from.

Studio canvas example for the if block: typical wiring for if.

Version history

Introduced in v10.3.11.
