cipheriv decrypt

This block is part of the files group and was last modified in core v10.4.28.

cipheriv decrypt condition v10.4.28

Decrypts the given file using a specific algorithm and key for secure storage

In pins 4 + flow

flow
flow
algorithm
value
The algorithm to use
Default aes-192-cbc
key required
value
The key used to encrypt (mostly scrypt output)
file required
file
The file to be decrypted
auth tag required
value
The auth tag used during the encryption

Out pins 3 + flow

flow
flow
success
condition
decrypted
file
error
value
If an error occured, this pin is filled

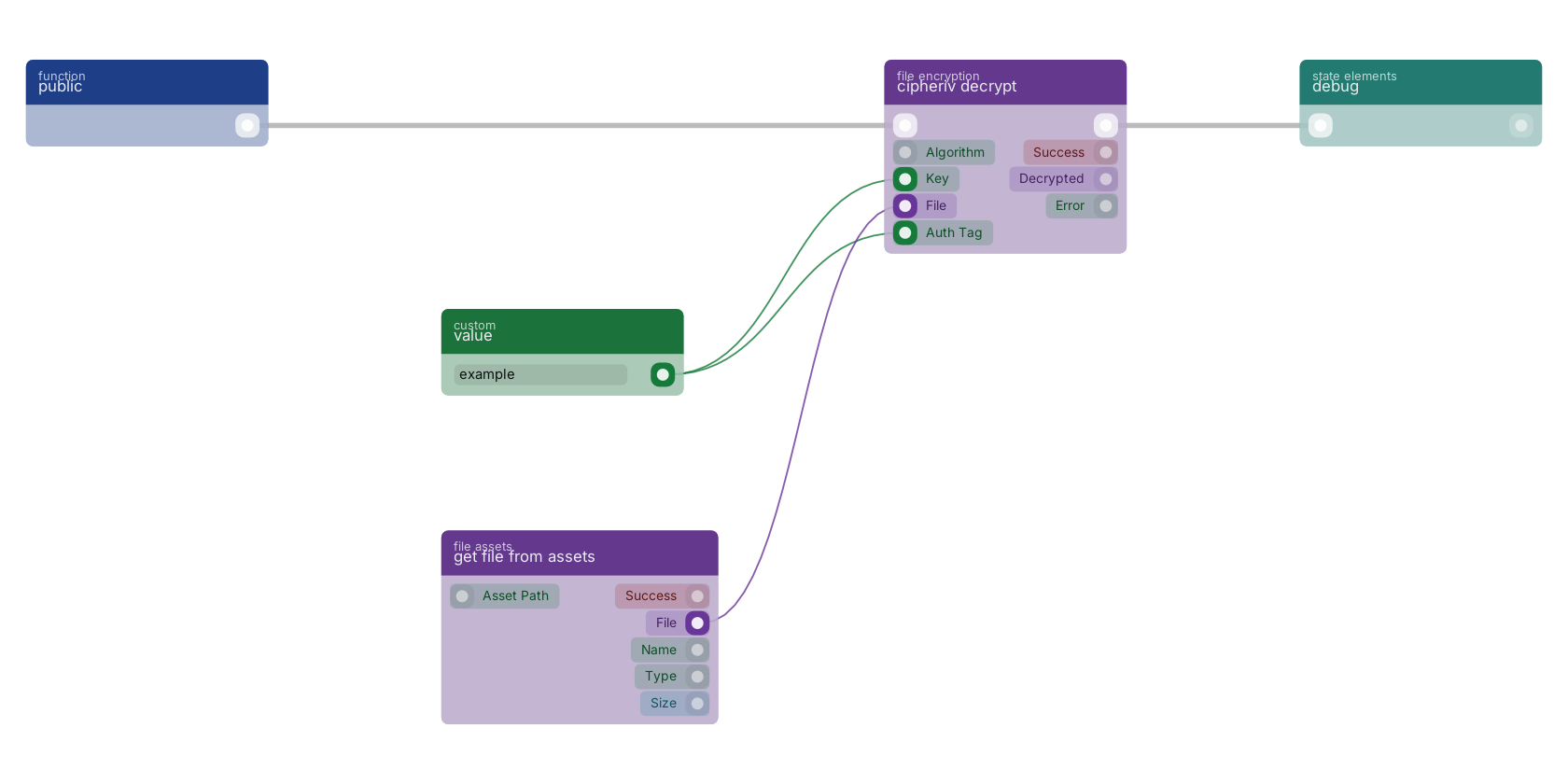

A typical wiring for cipheriv decrypt: a function trigger starts the flow; value feeds the key pin; get file from assets feeds the file pin; value feeds the auth_tag pin; the flow out pin feeds debug.

Studio canvas example for the cipheriv decrypt block: typical wiring for cipheriv decrypt.

Version history

Introduced in v10.4.28.
