cipheriv encrypt

This block is part of the files group and was last modified in core v10.4.28.

cipheriv encrypt condition v10.4.28

Encrypts the given file using a specific algorithm and key for secure storage

In pins 3 + flow

flow
flow
algorithm required
value
The algorithm to use
Default aes-192-cbc
key required
value
The key used to encrypt (mostly scrypt output)
file required
file
The file to be encrypted

Out pins 4 + flow

flow
flow
success
condition
```
true
```
encrypted
file
auth tag
value
error
value
If an error occured, this pin is filled

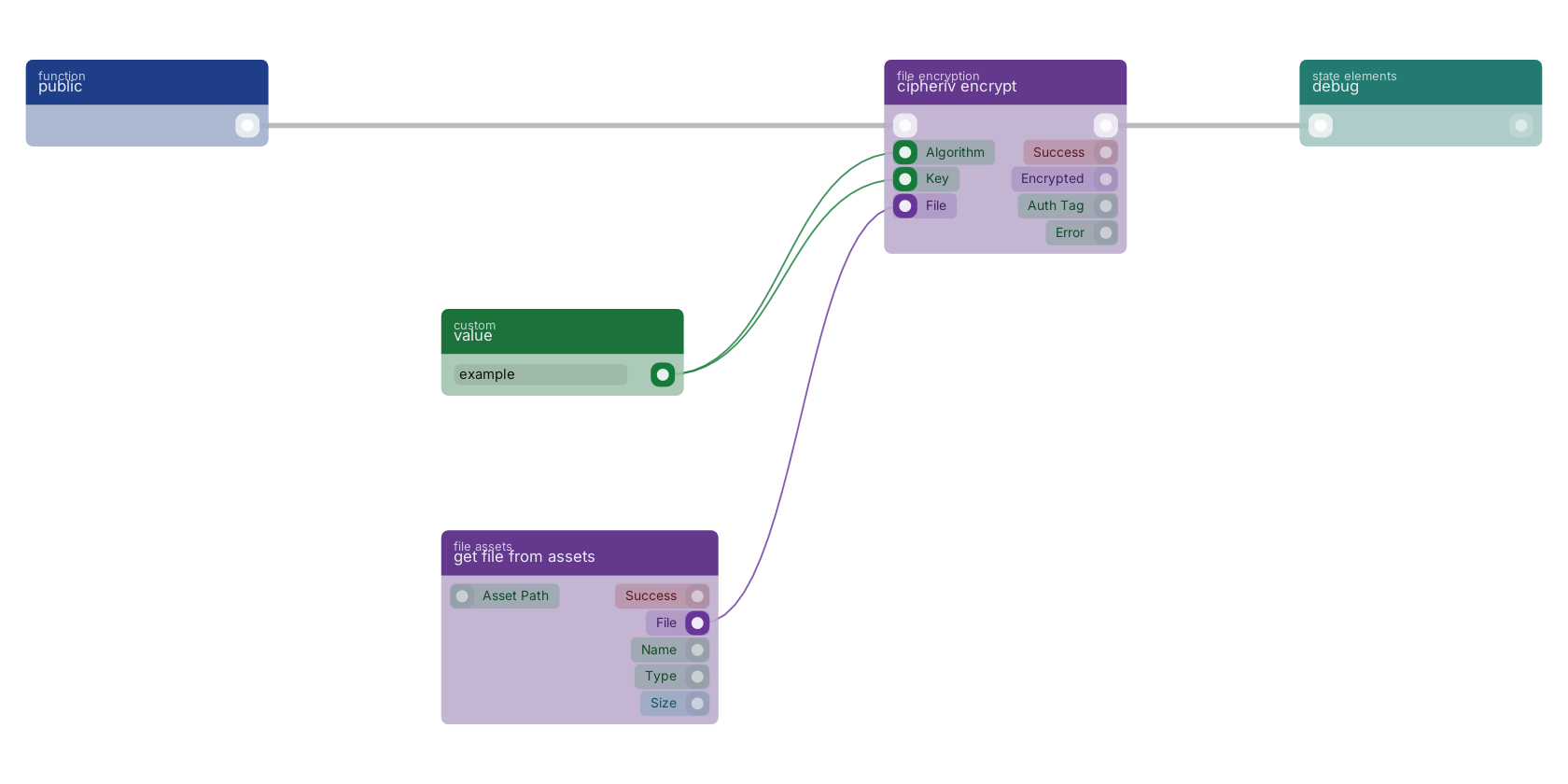

A typical wiring for cipheriv encrypt: a function trigger starts the flow; value feeds the algorithm pin; value feeds the key pin; get file from assets feeds the file pin; the flow out pin feeds debug.

Studio canvas example for the cipheriv encrypt block: typical wiring for cipheriv encrypt.

Version history

Introduced in v10.4.28.
