find by extension

This block is part of the files group and was last modified in core v14.0.5.

find by extension file v14.0.5

Filters a list of files by extension (e.g. mp4, jpg, png). Separate alternatives with | (e.g. png|jpg|gif). Returns matching files.

In pins 2

files required
file
the files to filter
extension required
value
the extension to filter by (e.g. mp4, jpg, png). Without dot. Separate alternatives with |, e.g. png|jpg|gif.

Out pins 4

filter files

get file by type

find file

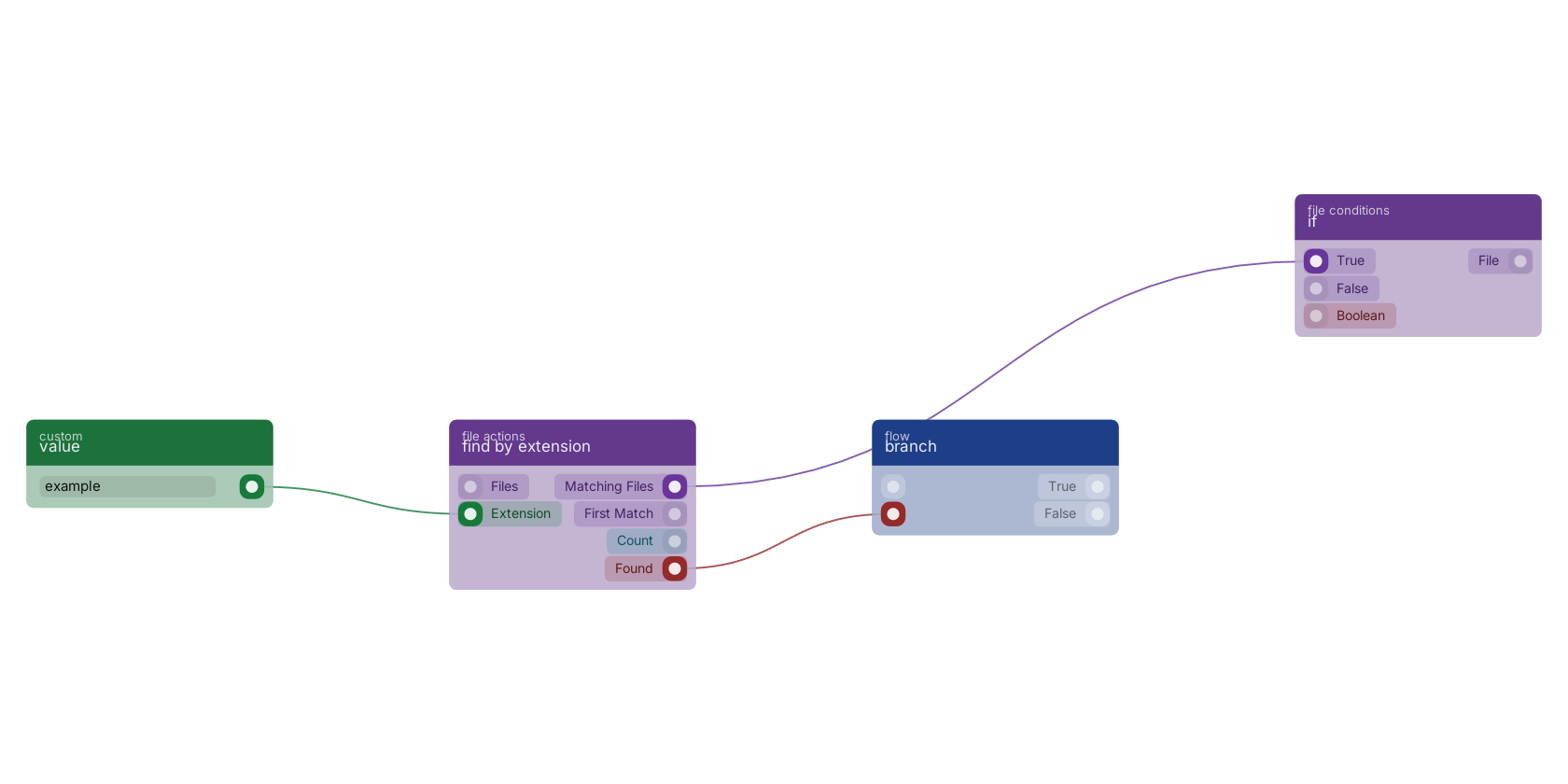

A typical wiring for find by extension: value feeds the extension pin; the matching out pin feeds if; the found out pin feeds branch.

Studio canvas example for the find by extension block: typical wiring for find by extension.

In production blueprints, this block is most often wired together with:

if: this block feeds into it. If.. then.. else..
create: feeds into this block. Creates a new function that can be executed using the given name.
value: feeds into this block. Simply returns the provided value.
branch: this block feeds into it.
move to public: this block feeds into it. Moves the given files to a new public destination.
if: this block feeds into it. Conditional branching for values (if.. then.. else..). Selects which input value is passed through; it does not route flow.

Introduced in v14.0.5.
