parse mt940

This block is part of the files group and was last modified in core v10.4.28.

parse mt940 array v10.4.28

Parse a MT940 defined XML file into an array of statements.

In pins 1 + flow

flow
flow
file required
file
The MT940 file to be parsed.

Out pins 1 + flow

flow
flow
statements
array
An array of objects containing the parsed statements of the provided MT940 file.

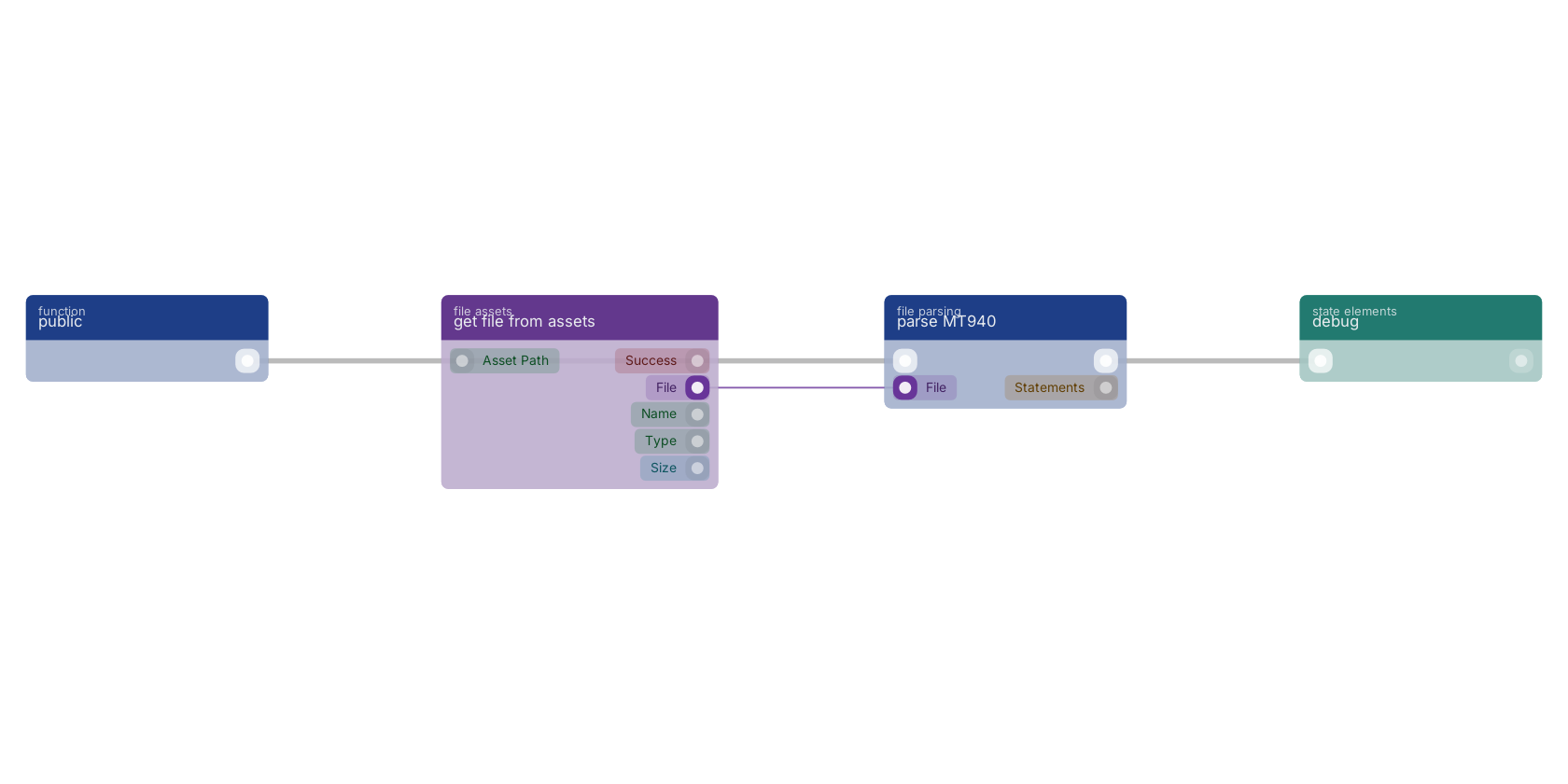

A typical wiring for parse MT940: a function trigger starts the flow; get file from assets feeds the file pin; the flow out pin feeds debug.

Studio canvas example for the parse MT940 block: typical wiring for parse MT940.

Version history

Introduced in v10.4.28.
