delete file

This block is part of the files group and was last modified in core v15.0.0.

delete file lxdconnection v13.0.9 Updated v15.0.0

Deletes a file.

In pins 3 + flow

flow
flow
Connection required
lxdconnection
The LXD connection
Instance name required
value
The name of the instance for this action.
path required
value
Path to the file.

Out pins 3 + flow

flow
flow
Connection
lxdconnection
The LXD connection
Success
condition
If successful, this pin returns true.
Error
value
Error message if the file could not be deleted.

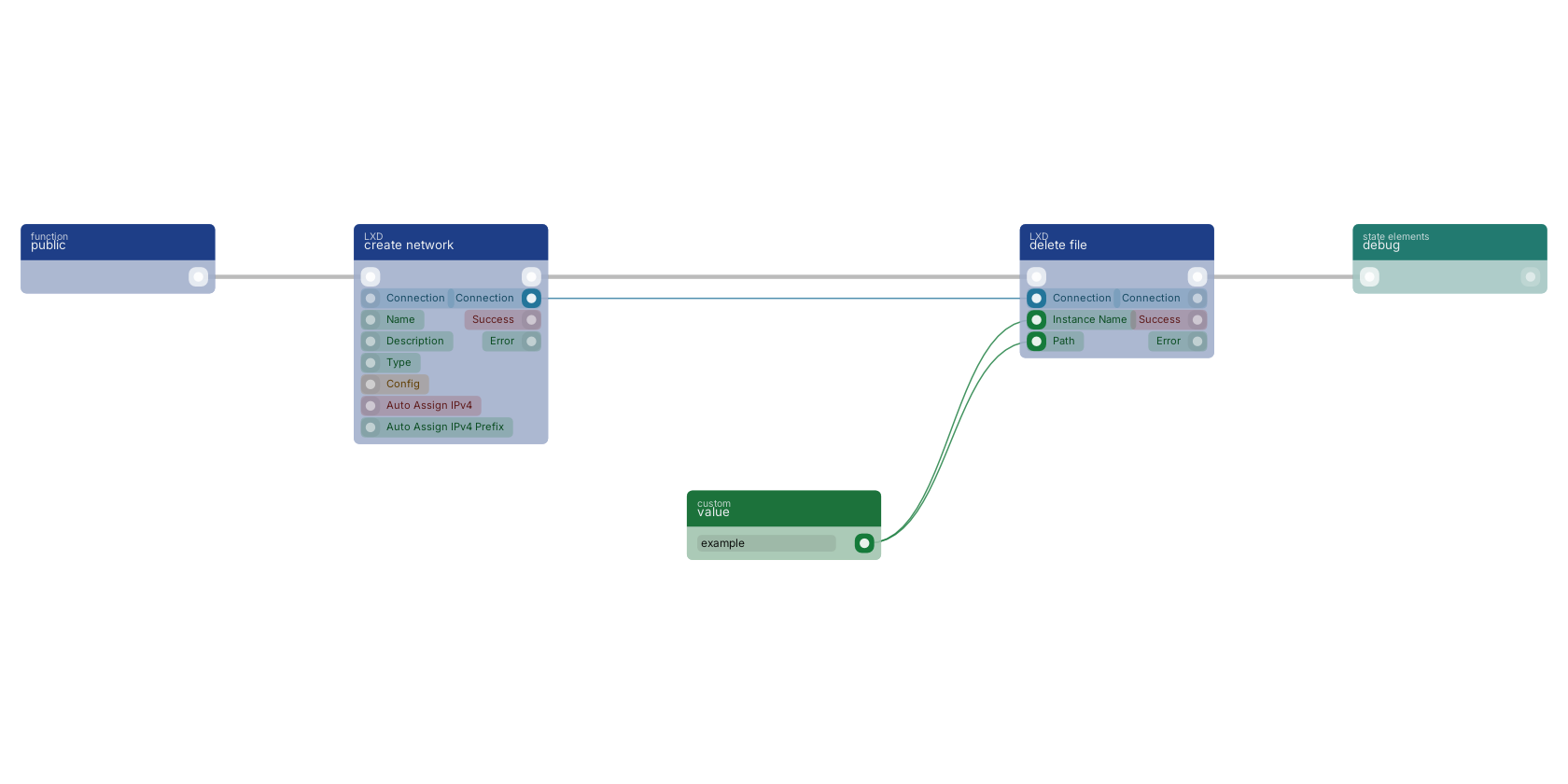

A typical wiring for delete file: a function trigger starts the flow; create network feeds the connection pin; value feeds the instance_name pin; value feeds the path pin; the flow out pin feeds debug.

Studio canvas example for the delete file block: typical wiring for delete file.

Version history

Introduced in v13.0.9.

Last modified in v15.0.0.
